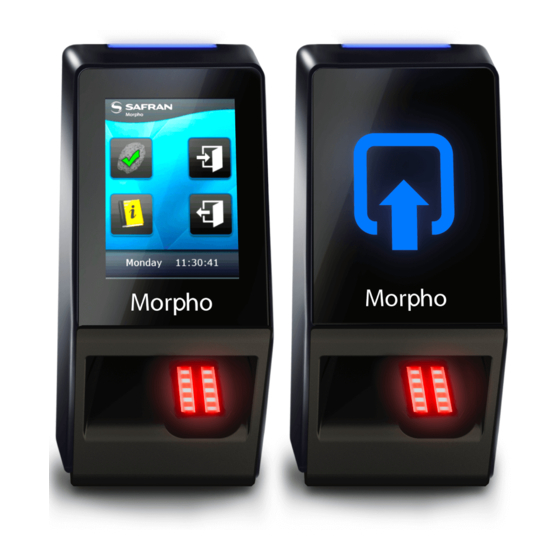

Idemia MorphoAccess SIGMA Lite Series Quick User Manual
  1. Manuals
  2. Brands
  3. Idemia Manuals
  4. Touch terminals
  5. MorphoAccess SIGMA Lite Series
  6. Quick user manual

Idemia MorphoAccess SIGMA Lite Series Quick User Manual

Hide thumbs Also See for MorphoAccess SIGMA Lite Series:

Advertisement

Quick Links

Download this manual
®
MorphoAccess
SIGMA Lite Series
Quick User Guide
MorphoAccess® SIGMA Lite+
MorphoAccess® SIGMA Lite
All descriptions illustrations, and specifications in this brochure should be
considered approximate and may relate to optional equipment or feature

Advertisement

loading
Need help?

Need help?

Do you have a question about the MorphoAccess SIGMA Lite Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Idemia MorphoAccess SIGMA Lite Series

Summary of Contents for Idemia MorphoAccess SIGMA Lite Series

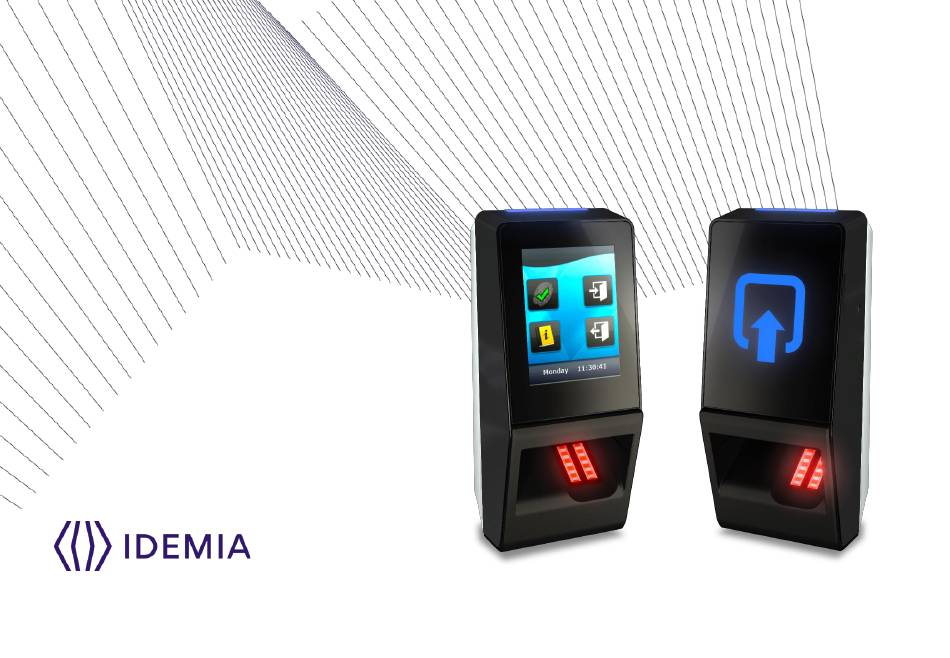

  • Page 1 ® MorphoAccess SIGMA Lite Series Quick User Guide MorphoAccess® SIGMA Lite+ MorphoAccess® SIGMA Lite All descriptions illustrations, and specifications in this brochure should be considered approximate and may relate to optional equipment or feature...

  • Page 2: Optional Features

    Table of Contents Color Step Content Overview Wiring Three Communications Four ACP or SDAC Five Administration Software Seven Capture basics Eight Optional features MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...

  • Page 3: Product Overview

    Or MIFARE™ DESFire ™ 13,56MHz (SIGMA .. MULTI) Optional RF Optical biometrical sensor Card reader Or HID® Prox ® 125kHz (SIGMA .. PROX) MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 4 Lite+ Lite Wall Mounting Plate Documentation package Electronic documentation is provided in Adobe® Acrobat® format (PDF). Adobe® Acrobat® Reader is available at http://www.adobe.com. MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 5 ® MorphoAccess SIGMA Lite terminal Implementation ® To secure an access, IDEMIA recommends installing the MorphoAccess SIGMA Lite Series terminal as a part of a typical Access Control system, which consists of the components described below. ® The MorphoAccess SIGMA Lite Series terminal Its role is to process the access request from the user.
  • Page 6 User’s fingerprints must be stored in the terminal database or in contactless card, to enable biometric check. MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 7 (* ) or the user enter their Identifier on the keypad, or a Wiegand frame is received from an external device (**) stored on the contactless card or in the user record in the terminal’s local database MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 8  When the terminal is exposed to such potential extreme conditions, IDEMIA recommends deploying an enclosure to protect the terminal and thus ensure a long-lasting performance in the field. MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11...

  • Page 9: Wiring Overview

    Backup of the Date/Time of the terminal: the volatile settings (such as date/time) of the terminal are protected against power failure, by a dedicated component during a least 24 hours (at 25 C) without external power supply. MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...

  • Page 10: Power Wiring

    1A (e.g. two units would require a 12vDC, 2A supply). A battery backup or uninterrupted power supply (UPS) with built-in surge protection is recommended. IDEMIA recommends using a gauge AWG20 for 12V power supply. Maximum drop voltage...
  • Page 11 The maximum total cable length is 4000 ft. (1200m).  The cable must be dedicated to this installation and not used for any other purpose MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 12 IDEMIA wireless enabled devices support do the same with Tx+/Tx- and the other twisted-pair wire). 802.11b and 802.11g standards. WEP Open, WPA and WPA2 are supported. MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 13 For 18 AWG, the maximum cable distance is 500 ft. (150m); for 20 AWG, the maximum is 300 ft. (90m); for 22 AWG, the maximum is 200 ft. (60m). All controller output shall be open drain or 5V+/-5% MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 14 White / Red Data WIEGAND_OUT0 Green Clock Data Clock In WIEGAND_OUT1 White WIEGAND_LEDOUT1 Blue Data Clock Out WIEGAND_LEDOUT2 Blue / Red WIEGAND_GND Black / Red MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 15 If door contact is not used, GPI1 (10) and GPO1 (12) shall be connected together Power supply from electrical source shall be switched off before starting the installation. MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 16  The internal relay is designed for 100.000 cycles. If more cycles are needed, an external relay driven by GPO must be used. MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 17 If no DHCP server is available, it is necessary to configure a static IP on each terminal and PC. ‒ Use MorphoBioToolBox to configure network parameters (see next page) MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 18  On Lite+ version, a USB plug image followed by 2 high pitched beeps will indicate configuration is finished MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 19 The connection to the embedded Webserver, through LAN or WLAN, requires terminals IP address and terminals password. Deactivate Webserver if not used. MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 20 A link to download the software will be e- mailed to you. Other countries: please contact your sales representative. MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 21 SecureAdmin (version v4.1.20.0.1 or higher),  The limitations in L1 Legacy mode are described in the following document: Application Note – L1 Legacy Mode Limitations  MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 22 /or warm it up. ergonomically more difficult to use) figure above. For handling large scale enrollments please contact your IDEMIA representative for training and services options MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 23 • Do not tilt the finger on right or left side of the sensor Finger Angle Correct Position: • The finger must be parallel to sensor sides IDEAL POSITION MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 24 • Finger is parallel to sensor surface IDEAL POSITION Incorrect Position: • Do not roll finger Finger rotation Correct Position: • Finger is parallel to surface sensor IDEAL POSITION MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 25 Not waiting for card granted denied finger script in card progress Move Database script script finger empty / not finished failed waiting finger MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 26 SIGMA Lite+ Series basic MMI Waiting Access Access Place USB key USB key for card granted denied finger detected removed Move script script finger finished failed MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 27 The PIN code is entered using a numeric keypad least the User ID), and starts authentication process, as displayed on the (optional) LCD touch screen. required by terminal settings MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 28 Contactless Card Position – Warning MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 29 This feature is available only with the optional touchscreen LCD. MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 30 Lactic acid) or hydrogen peroxide (<3%) and wipe the device’s surface and leave the surface wet with disinfectant for at least 5 minutes. Any other practices (bleach, chlorine, soda, alcohol, quaternary ammonium etc) permanently damage and/or negatively impact the performances of the device. MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 31 Release notes : for each firmware version, a release note is published describing the new features, the supported products, the potential known issues, the upgrade / downgrade limitations, the recommendations, the potential restrictions… MorphoAccess® SIGMA Lite Series – Quick User Guide - 2015_2000005700-V11 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 32 Copyright © 2020, IDEMIA. All rights reserved. www.idemia.com Reproduction in whole or in part in any form or medium without the express written permission of IDEMIA is prohibited. The trademarks identified herein are the trademarks of registered trademarks of IDEMIA, or other third party.
