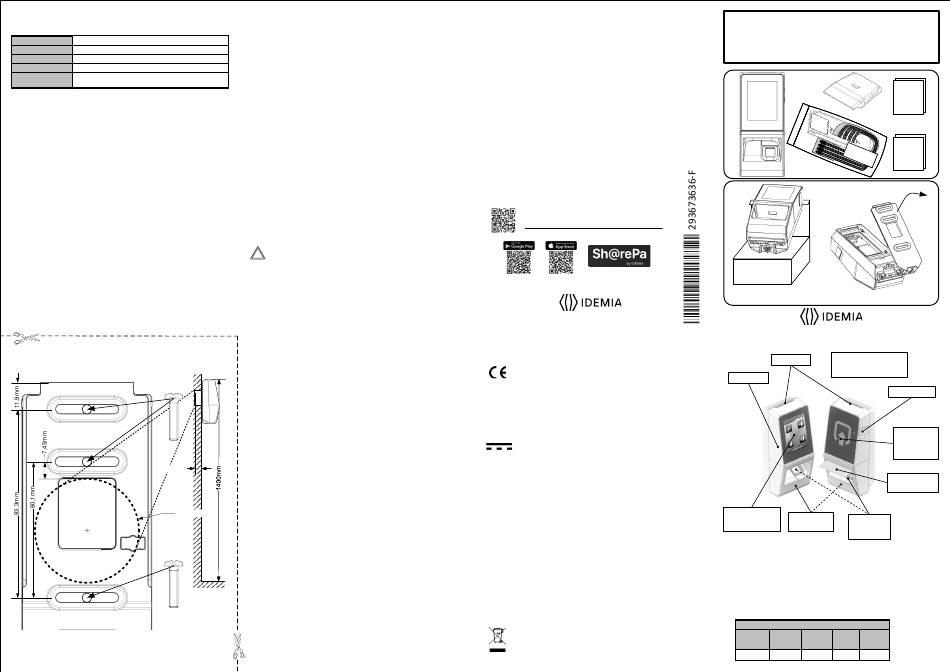

Idemia MorphoAccess SIGMA Lite Series Quick Installation Manual

Deployment Environments
Operating temperature -10° to + 55 °C (14°to 131°F)
Operating humidity 10 % < RH < 80 % (non condensing)
Storage temperature - 25° to + 70 °C (-13° to 158°F)
Storage humidity 5% < RH < 95 %
IP65 rated, once backdoor fixed with the 4 screws
IP code
For UL 294 compliance, the products are rated for indoor use
General precautions
➢
Do not expose the terminal to extreme temperatures.
➢
When the environment is very dry, avoid synthetic carpeting near the
MorphoAccess® SIGMA Lite terminal, to reduce the risk of unwanted
electrostatic discharge.
Areas containing combustibles
➢
Do not install the terminal in the vicinity of gas stations or any other installation
containing flammable or combustible gases or materials. The terminal is not
designed to be intrinsically safe.
The terminal should be installed in controlled lighting conditions
➢
Avoid biometric sensor exposure to a blinking light.
➢
Avoid direct exposure of the biometric sensor to sunlight or to UV lights.
Outdoor installations recommendations
➢
Outdoor devices shall not encounter extreme weather such as torrential rains,
harvest rains, flooding.
➢
High humidity, direct sun exposure, frequent high temperature, outdoor careless
uses may alter the durability of the terminal.
➢
When the terminal is exposed to such potential extreme conditions, IDEMIA
recommends deploying an enclosure to protect the terminal and thus ensure a
long-lasting performance in the field.
1
Φ = 4mm
40mm min 40mm min
Ø46mm max
2
Φ = 4mm
Scale 1.0
Recommendations
The manufacturer cannot be held responsible in case of non-compliance with the
following recommendations or incorrect use of the terminal.
Repair and Accessories
•
Do not attempt to repair the MorphoAccess® SIGMA Lite Series terminal
yourself. The manufacturer cannot be held responsible for any damage/accident
that may result from attempts to repair components. Any work carried out by
non-authorized personnel will void your warranty.
•
Only use the terminal with its original accessories. Attempts to use unapproved
accessories with your terminal will void your warranty.
Date / Time synchronization
•
The MorphoAccess® SIGMA Lite Series terminal clock has a +/- 10 ppm typical
time deviation at +25ºC (roughly +/- 3sec per day). At lower and higher
temperature, deviation may be greater (maximum : 7sec per day).
•
When the terminal is used for applications requiring high time precision, it is
strongly recommended to synchronize the terminal with an external clock.
Firmware release
•
To get the best of our technology, we recommend you to download and install
the last firmware release. Please check our website.
Overvoltage
•
IDEMIA recommends the Biometric devices to be protected with an external
accessory in order to avoid overvoltage on input wires or connectors of the
device. Typically, risks of overvoltage have been identified on external power
management wire, POE connector and wiegand input wire.
WARNING: Cleaning & Disinfection precautions
! !
To clean the terminal, a dry cloth is recommended, especially the biometric
sensor.
To disinfect the terminal, moisten a non-abrasive wipe with the disinfectant
Windex® Multi-Surface (or similar product containing L-Lactic acid) or
hydrogen peroxide (<3%) and wipe the device's surface and leave the
surface wet with disinfectant for at least 5 minutes. Any other practices
(bleach, chlorine, soda, alcohol, quaternary ammonium etc) permanently
damage and/or negatively impact the performances of the device.
Technical Support and Hotline
USA & Canada
Mail: support.bioterminals.us@idemia.com
Tel: +1 888 940 7477
LATAM (Latin America)
Mail: support.bioterminals.us@idemia.com
Tel: +1 714 575 2973
EMEA (Europe, Middle-East, Africa)
Mail: support.bioterminals@idemia.com
Tel: +33 1 30 20 30 40
APAC (Asia & Pacific)
Mail: support.bioterminals.in@idemia.com
Tel: +91 8929 159 665
India
Mail: support.bioterminals.in@idemia.com
Tel: +91 1800 120 203 020
Detailed instructions are available at
Des instructions détaillées sont disponibles sur
El detalle de las instrucciones está disponible en
https://biometricdevices.idemia.com
COPYRIGHT © 2021, IDEMIA
Head office :
2, place Samuel de Champlain - 92400 Courbevoie
Regulatory, safety and environmental notices
Products bearing the CE marking comply with one or more of the following
EU Directives as may be applicable:
•
EMC Directive 2014/30/EU.
•
RED Directive 2014/53/EU.
•
ROHS Directive 2011/65/EU.
•
ECODESIGN Directive 2009/125/EC.
Compliance with these directives is assessed using applicable European
Harmonised Standards.
This symbol means Direct Current (DC)
The installation of this product should be made by a qualified service
Person and should comply with all local regulations.
It is strongly recommended to use a class II power supply at 12VDC 1A
minimum or at 24VDC 500mA minimum in conformity with Safety Electrical
Low Voltage (SELV). The power supply cable length should not exceed 10
meters.
This system must be installed in accordance with the National Electrical
Code (NFPA 70), and the local authority having jurisdiction.
This product is intended to be installed with a power supply complying with
IEC60950-1, in accordance with the NEC Class 2 requirements; or supplied
by a listed IEC60950-1 external Power Unit marked Class 2, Limited Power
source, or LPS and rated 12VDC, 1A minimum or 24VDC, 0,5A minimum.
For UL 294 Compliance, power supply must be UL294B or UL 294 Listed
Class 2 with a power limited output.
In case of building-to-building connection (power source in a building, and
terminal in another building), it is recommended to connect the 0V of the
power supply to the earthing system of the building. And the terminal block
Power Ground must be connected with the earthing system of the other
building.
Note that all connections of the MorphoAccess® SIGMA Lite Series
terminal described hereafter are of SELV (Safety Electrical Low Voltage)
type.
This symbol means do not dispose of your product with your other
household waste. Instead, you should protect human health and the
environment by handing over your waste equipment to a designated
collection point for the recycling of waste electrical and electronic
equipment.
®
MorphoAccess SIGMA Lite Series
Quick Installation Guide
Quick
Guide
WEEE
The units are to be installed in accordance to the local authority having jurisdiction, National
Electrical Code (ANSI/NFPA 70), and the manufactures installation instructions.
Optional Wi-Fi™
Status LED
Interface (plugged at
the back of the terminal)
Buzzer
USB host port
Large User
feedback
LED panel
(SIGMA Lite)
Optional sensor
protection cap
2.8" WVGA
Optional RF
touchscreen LCD Optical
Card reader
(SIGMA Lite+) biometric
sensor
Models:
MorphoAccess® Sigma Lite (MPH-AC001C)
MorphoAccess® Sigma Lite iClass (MPH-AC001B)
MorphoAccess® Sigma Lite Multi (MPH-AC001B)
MorphoAccess® Sigma Lite Prox (MPH-AC001A)
MorphoAccess® Sigma Lite+ (MPH-AC001C)
MorphoAccess® Sigma Lite+ iClass (MPH-AC001B)
MorphoAccess® Sigma Lite+ Multi (MPH-AC001B)
MorphoAccess® Sigma Lite+ Prox (MPH-AC001A)
UL294 Performance levels UL294 Performance levels
Access Access
Destructive Destructive Stand-by Stand-by
Control Line Control Line Endurance Endurance Conditions Conditions
Attack Attack Power Power
Security Security
Level I Level I Level I Level I Level IV Level IV Level I Level I NA NA
