- Page 1 MorphoWave Quick User Guide 2015_2000009095 V3 IDEMIA D OCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED...
-

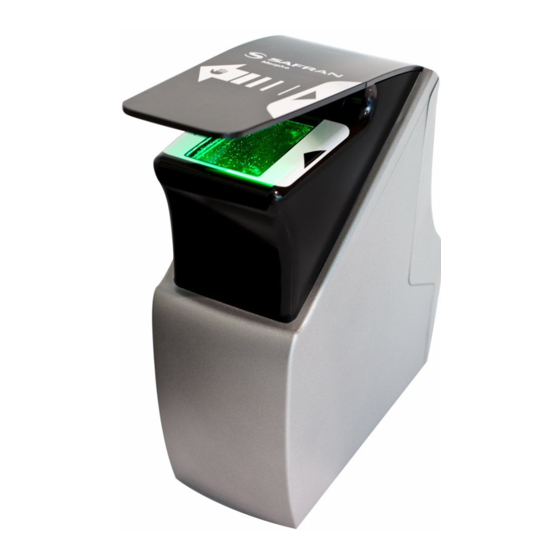

Page 2: Product Overview
Micro Camera Speaker Note: Electronic documentation is provided in Adobe® Acrobat® format (PDF). Adobe® Acrobat® Reader is available at http://www.adobe.com. MorphoAccess Wave Finger On The Fly sensor Wave PC Wave ethernet switch 2015_2000009095 IDEMIA D OCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED... - Page 3 TERMINAL IMPLEMENTATION To secure an access, IDEMIA recommends installing the MorphoWave terminal as a part of the typical Access Control environment, which consists: The MorphoWave OEM product itself NON SECURED SECURED AREA AREA Its role is to perform access right checks using one-to-many biometric identification or...
- Page 4 Inversion of +12V and GND will damage the MorphoWave OEM. Power supply from electrical source shall be switched off before starting the installation MorphoWave OEM Power Supply External Power Supply: Must comply with CEE/EEC EN60950 standard. 12-24 Volts (regulated) 1 Amp min @12V.
- Page 5 Wiegand LED 2 Battery Digital Input 0 Digital Input 1 Relay_COM Reset button Digital Input 2 RS422 RX- Digital Output 0 RS422 RX+ RJ-45 Digital Output 1 RS422/485 TX+ Digital Output 2 RS422/485 TX- 2015_2000009095 IDEMIA D OCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED...
- Page 6 Yellow / Red SWITCH_PIN2 Pink GPO2 Yellow / Black RLY_NO Yellow / White RLY_COM Grey / White RLY_NC Orange / White RJ-45 No Battery for Revision 2: The battery is replaced with a capacitor 2015_2000009095 IDEMIA D OCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED...
- Page 7 If door contact is not used, GPI1 (Orange/Red wire) and GPO1 (Yellow/Red wire) shall be connected together Power supply from electrical source shall be switched off before starting the installation. Before any installation, please refer to the MorphoWave OEM Installation Guide (Electrical Interface section) 2015_2000009095 IDEMIA D OCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED...
- Page 8 Relay door 5 RLY_NO Yellow / White 6 RLY_COM Grey / White 7 RLY_NC Orange / White Inductive load management requires a parallel diode for a better contact lifetime 2015_2000009095 IDEMIA D OCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED...
- Page 9 Use the tie wrap provided to attach the cable to the bracket through the pre-drilled hole. Please use only the power adaptor provided with the sensor to power up the MorphoWave Desktop. 2015_2000009095 IDEMIA D OCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED...
- Page 10 - Connect the power adaptor of the PC to the unit. - Connect RJ45 cable on the PC for Ethernet connectivity. Please use only the power adaptor provided with the PC and Ethernet switch to power up the units. 2015_2000009095 IDEMIA D OCUMENT EPRODUCTION AND ISCLOSURE...
- Page 11 “open” rights check. command to the gate controller. Note: One user must be enrolled in the terminal database, in order to be able to perform biometric check. 2015_2000009095 IDEMIA D OCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED...
-
Page 12: Access Control Modes
•Access Granted on match found •Access Granted on match found •Host system will trigger access granted or failed through distant •Access denied on no match command •Access denied on no match found found 2015_2000009095 IDEMIA D OCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED... - Page 13 12345, to a new password for login to the device. First Boot Configuration Storage Type: If you select Permanent, then the configuration done at first boot are stored forever in terminal. Temporary, means FBA configuration will be required on every reboot. 2015_2000009095 IDEMIA D OCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED...
- Page 14 • User specific rules definition • MorphoWave OEM terminal allows you to capture up to 8 fingers per user. Note: Refer to User enrollment section in MorphoWave OEM Administration Guide - Addendum. 2015_2000009095 IDEMIA D OCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED...
- Page 15 The operator has to choose the hand to enroll. Up to 4 NB: To complete enrollment, two waves are required. fingers per hand can be selected for enrollment. Thumbs are not available for enrollment. 2015_2000009095 IDEMIA D OCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED...
- Page 16 MORPHOWAVE ACQUISITION GUIDELINES (1/2) Ideal acquisition procedure 2015_2000009095 IDEMIA D OCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED...
- Page 17 MORPHOWAVE ACQUISITION GUIDELINES (2/2) Improper use 2015_2000009095 IDEMIA D OCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED...
-
Page 18: Time And Attendance
When user tries to access by placing finger print, placing finger print, terminal will display above T&A screen to select an terminal will display above T&A screen to select an action. action. 2015_2000009095 IDEMIA D OCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED... -
Page 19: Video Phone Feature
See below call flow when video phone call is initiated: Call is sent Call is routed to Server to call centre VoIP software compatible with SIP protocol, such as Linphone User makes video call Supporting User Got stuck! on Video Call 2015_2000009095 IDEMIA D OCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED... - Page 20 OEM through Ethernet by entering IP address. This application has to be installed on administration PC (either desktop or laptop). Note: For more information, refer to MorphoBioToolBox online User Guide. MorphoBioToolBox Homepage 2015_2000009095 IDEMIA D OCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED...
- Page 21 The MorphoWave OEM terminal clock has a +/- 10 ppm typical time deviation at +25°C (roughly +/- 1sec per day). • At lower and higher temperature, deviation may be more important. • 2015_2000009095 IDEMIA D OCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED...
- Page 22 Release note For each firmware version, a release note is published describing the new features, the supported products, the potential known issues, the upgrade / downgrade limitations, the recommendations, the potential restrictions… 2015_2000009095 IDEMIA D OCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED...
- Page 23 A login and password are required to access the full site content. If you don’t have one, please send us an email to the address above to request one. Contact by email is preferred. 2015_2000009095 IDEMIA D OCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED...
