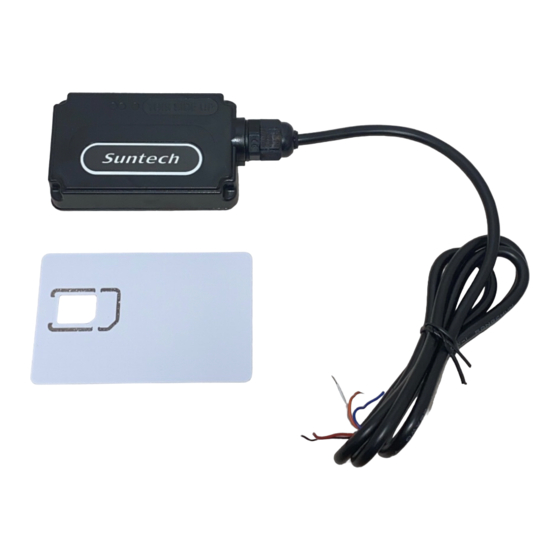

  • Page 1 ST4345 User Manual Suntech International Ltd.
  • Page 2 ST4345 User Manual 1. Introduction This document describes features, protocols and detail operation of ST4345. If there is another operation description document for special buyer to customize or model and the contents of the document is different with this, customizing document should be applied for special buyer.
  • Page 3 ST4345 User Manual 2-3. Setting Parameter Parameters of device can be changed by LTE-M1 or SMS, and some control can be realized also in the same way. Detail protocols are described in Chapter 4. 2-4. Features Key features are described here;...
  • Page 4 DEV_ID Field 1 Field 2 … Field n Field Definitions Remark String “ST4345” + Command type DEV_ID 6 char. Device ID of AVL “02” Protocol Version. This is fixed with “02”. Field 1 ~ n String Contents Device ID is unique number of each device that consists of 6digits.
  • Page 5 ST4345 User Manual Field 1 ~ n String Contents 4. Commands When the device is received a command, it responds with response string and changes some parameters or acts related operation. 4-1. Network Parameters Setting DEV_ID AUTH USER_ID USER_PWD SEVER_IP...
  • Page 6 ST4345 User Manual <example> [command] ST4345NTW;850000;02;0;internet;;;111.111.111.111;8600;;;; [response] ST4345NTW;Res;850000;010;0;internet;;; 111.111.111.111;8600;;;; ST4345NTW;Res;850000;010;A1;tim.br;tim;tim; 111.111.111.111;8600;;;; <notes> ** If network does not require User ID and Password, these fields should be empty. Automatic LTE-M1 Set It the device is set to ‘Automatic LTE-M1 Set’, the device set LTE-M1 parameters automatically depending on inserted SIM.
  • Page 7 ST4345 User Manual String Interval for sending status report in emergency mode Range : 0 ~ 9999 If 0, emergency report will be sent only one time when emergency state occurs. String Number of attempts for emergency report until the device gets acknowledge from server If 0, no emergency report will be sent.
  • Page 8 ST4345 User Manual IN1_TYPE IN2_TYPE IN3_TYPE IN1_CHAT IN2_CHAT IN3_CHAT OUT1_TYPE OUT2_TYPE OUT1_ACTIVE OUT2_ACTIVE PULSE1_NO PULSE1_ON PULSE1_OFF PULSE2_NO PULSE2_ON PULSE2_OFF IN4_TYPE IN5_TYPE IN4_CHAT IN5_CHAT BAUD ● Definition : Set parameter related event. Field Definitions Unit Remark “ST4345EVT” Command type DEV_ID 6 char.
  • Page 9 ST4345 User Manual OUT1_TYPE ‘0’ ~ ‘5’ 0 = GPIO 1 = immobilizer 2 = Immobilizer & Auto active Auto active means immobilizer activated automatically when the vehicle starts parking. 3 = Pulse 4 = LED Out for indicating call status. Refer 7-2-3.
  • Page 10 ST4345 User Manual <example> [command] ST4345EVT;850000;02;1;60;0;3;2;2;30;20;20;1;0;1;0;0;0;0;0;0;0;0;0;0;0;0 [response] ST4345EVT;Res;850000;010;1;60;0;3;2;2;30;20;20;1;0;1;0;0;0;0;0;0;0;0;0;0;0;0 <notes> ** If IGNITION is set to ‘0’, device doesn’t check driving or parking state of the vehicle. It reports status string with idle mode always, and cannot support parking lock and the service that enters sleep or deep sleep automatically when the vehicle is parked.
  • Page 11 ST4345 User Manual IN1_TYPE ‘0’ ~ ‘5’ 0 = Falling Edge 1 = Rising Edge 2 = Both Edge (Falling & Rising) 3 = Panic Button 4 = Call1 Button 5 = Call 2 Button 6 = Reserved 7 = Anti-Theft Button 13 = Disable Immobilizer if it’s activated by jammer...
  • Page 12 ST4345 User Manual CALL_MO1 CALL_MO2 ● Definition : Set parameters related SMS or Call. Field Definitions Unit Remark “ST4345LTE- Command type M1” DEV_ID 6 char. Device ID “02” Protocol Version SMS_LOCK ‘0’ or ‘1’ Lock of Receiving Commands by SMS...

  • Page 13: Table Of Contents

    ST4345 User Manual DEV_ID PARKING_LOCK SPEED_LIMIT PWR_DN CON_TYPE GROUP_SEND MP_CHK ANT_CHK BAT_CHK M_SENSOR CALL GEO_FENCE DATA_LOG ANTITHFT_CNT1 ANTITHFT_CNT2 JAM_DET JAM_CHK_DIST JAM_CHK_TM ● Definition : Set parameters related report. Field Definitions Unit Remark “ST4345SVC” Command type DEV_ID 6 char. Device ID “02”...
  • Page 14 ST4345 User Manual ANT_CHK ‘0’ or ‘1’ GPS Antenna Connection Error Check Disable (0) / Enable (1) BAT_CHK ‘0’ or ‘1’ Backup Battery Error Check Disable (0) / Enable (1) M_SENSOR ‘0’ ~’4’ Motion Sensor Motion Collision Shock Disable Disable...

  • Page 15: Hdr Dev_Id

    ST4345 User Manual on report parameters. It may be used for saving LTE-M1 fee. Current version cannot support this option. Group Send The device stores data if the vehicle is in no LTE-M1 area. And, the vehicle moves to LTE-M1 available area, device starts sending stored data.

  • Page 16: Protocol Version

    ST4345 User Manual “02” Protocol Version SVR_TYPE ‘T’ / ‘U’ Server Protocol Type T : TCP U : UDP B_SVR_TYPE ‘T’ / ‘U’ Backup Server Protocol Type T : TCP U : UDP UDP_ACK ‘0’ ~ ‘3’ ACK from Server when UPD is used.
  • Page 17 ST4345 User Manual reached to server and sends the data again. Examples of ACK report are as below. String Format : “ST4345ACK;850000” Zip Format : 0x15 0x85 0x00 0x00 It is recommended ACK_TYPE is set to ‘1’ to confirm all data can be transmitted safely.
  • Page 18 ST4345 User Manual In case of virtual ignition, the vehicle can recognize driving state when vehicle power more than IGNDET_H String IGNDET_H. Default = ‘0’ IGNDET_L String In case of virtual ignition, the vehicle can recognize parking state when vehicle power is less than IGNDET_L.
  • Page 19 ST4345 User Manual Recommend : 0.7 VI_ON_THRES String 1/255G Threshold value for Motion Virtual Ignition On Range : 3~50 Default : 5 VI_ON_DELAY String Sec. Delay time for Motion Virtual Ignition On Range : 3~999 Default : 10 VI_ON_PERCENT String Percent for Motion Virtual Ignition On.
  • Page 20 ST4345 User Manual ‘01’ Protocol Version CMD_ID String Control command content Caution : If it’s not correct the Unit ID, ignored. 4-11-1. Status Request ● Definition : Location poll, request of the status report. Field Definitions Unit Remark CMD_ID “StatusReq”...

  • Page 21: Disable

    ST4345 User Manual Field Definitions Unit Remark CMD_ID “Preset” Report parameter setting values and current device status. Response includes network, report, event, LTE-M1 and service parameters. It includes status of device, also. <example> [command] ST4345CMD;850000;02;Preset [response] ST4345CMD;Res;850000;010;Preset; NTW;0;internet;;;111.111.111.111;8600;;;;1234; RPT;60;180;120;60;3;0;0;;;; EVT;1;60;0;3;2;2;30;20;20;1;1;1;0;0;0;0;0;0;0;0;0;0;0;0;...
  • Page 22 ST4345 User Manual RPT;60;180;120;60;3;0;0;;;; EVT;1;60;0;3;2;2;30;20;20;1;1;1;0;0;0;0;0;0;0;0;0;0;0;0; LTE-M1;0;;;;;0;;;;;;;; SVC;1;120;0;0;0;0;1;1;1;0;0;0;0; ADP;U;T;2;9000;0;0;0;0;0;0; DEV;0;0;0;0;0;0;0;0 <notes> ** This command can be applied from software version 22. ** DEV filed informs current status of device as below. BAT_CON OUT1 OUT2 PWR_DN Backup battery 0 = Disable 0 = Disable 0 = Normal disconnected.
  • Page 23 ST4345 User Manual ● Definition : Active Output1. Field Definitions Unit Remark CMD_ID “Enable1” Enable Output1 <example> [command] ST4345CMD;850000;02;Enable1 [response] ST4345CMD;Res;850000;010;Enable1 [response] ST4345CMD;Res;850000;010;Enable1NoUse (in case that IN type is set to ‘No Use’). <notes> ** Output1 line goes to active status.
  • Page 24 ST4345 User Manual [response] ST4345CMD;Res;850000;010;ReqIMSI;724031111553779 4-11-10. Request ICCID ● Definition : Request the ICCID. Field Definitions Unit Remark CMD_ID “ReqICCID” Request ICCID (sequence number that is displayed on SIM) If received, device sends ICCID of using SIM. <example> [command] ST4345CMD;850000;02;ReqICCID [response] ST4345CMD;Res;850000;010;ReqICCID;89550230000084256668...
  • Page 25 ST4345 User Manual [response] ST4345CMD;Res;850000;010;EraseAll 4-11-13. Initialize Traveled Distance ● Definition : Initialize the travel distance. Field Definitions Unit Remark CMD_ID “InitDist” Set traveled distance to 0. <example> [command] ST4345CMD;850000;02;InitDist [response] ST4345CMD;Res;850000;010;InitDist 4-11-14. Initialize Message Number ● Definition : Initialize the message sequence number.
  • Page 26 ST4345 User Manual 4-11-24. Request SIM IP Address ● Definition : Request of the local IP address in SIM card. Field Definitions Unit Remark CMD_ID “ReqSIMIP” SIM card IP request <example> [command] ST4345CMD;850000;02;ReqSIMIP [response] ST4345CMD;Res;850000;010;ReqSIMIP;172.16.18.6...
  • Page 27 ST4345 User Manual 5. Installation 5.1 Insert SIM card. 5.2 Backup battery - The backup battery should be used when main power is cut off 5.3 Install - The Device is fixed to the vehicle. 5.4 Assemble as below Event Cable Color pin Description...
  • Page 28 ST4345 User Manual 6. Trouble Shooting (LED Indicator) 6.1 Blue LED: Indicates LTE-M1 status. LTE-M1 Blink Count Remarks Normal Server Com. Error <Possible Cause> 1. Server or network parameter is wrong. 2. Server is closed. 3. Temporary network barrier LTE-M1 Com.
  • Page 29 ST4345 User Manual 6.2 RED LED: Indicates GPS status. Blink Count Remarks Normal No Fix <Possible Cause> 1. If power on, GPS chipset is trying to find position during some minutes. 2. GPS antenna lays on weak or no GPS signal position 3.
  • Page 30 FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.21 Any changes or modifications (including the antennas) to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment.
