COUGAR MG140 Air RGB Assembly Instructions

MG14 0 A I R
RGB

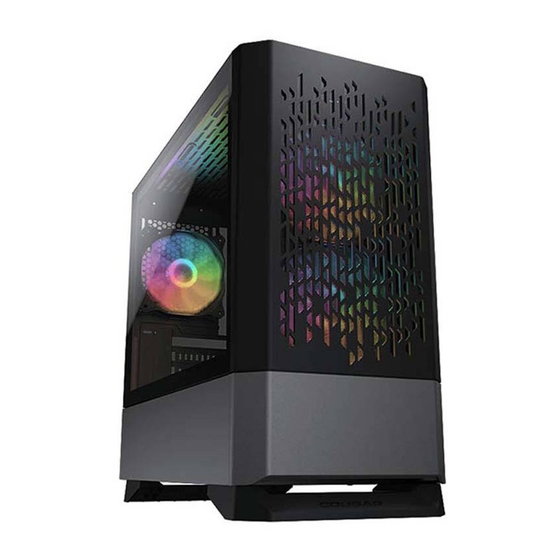

COMPACT ARGB MINI TOWER CASE WITH MODERN PATTERNED AIR VENTS
We've made COUGAR PC cases even better. The new patterned air vents create a special outlook for your
amazing build. Powerful airflow, mighty support for up a 280mm radiator, a 350mm graphic card,
and a 160mm CPU cooler deliver superior value for you.
PATTERNED AIR VENTS DESIGN
MG140 Air RGB's front panel features patterned air vents design. It is the chassis that integrates the new
concept of minimalist aesthetic and cooling performance. The hollow areas also allow internal lighting to
create mesmerizing light effects.
INCREDIBLE RGB LIGHTING
MG140 Air RGB comes with 3 ARGB fans. You are freely to control several amazing lighting effects with the
dedicated RGB button. The built-in LED controller also adaptable with any compatible motherboards' 5V ARGB
connection for system-wide lighting synchronization. The powerful lights come out of a stylish panel and the
reflective surroundings helps reinforce the RGB effects.
TOP-NOTCH COOLING
MG140 Air RGB's compact layout allows you to install five fans, a 280mm water cooling radiator, and
a 160mm CPU cooler. This immense cooling potential will enable you to choose components freely.
GREAT SUPPORT FOR COMPONENTS
Its advanced support for up to 350mm-long graphics cards, which allows you to enjoy the latest games
with smooth framerates.
CLEAN AND TIDY LOOKS
With the full-length PSU cavity hides cables and a massive tempered glass left panel presents a clean and
tidy build, you can easily showcase your pro-level stunning build!
GLOBAL WARRANTY POLICY
WARRANTY PERIODS OF COUGAR GAMING DEVICES
Product : COUGAR MG140 AIR RGB
Warranty : 1 Year
This warranty gives you specific legal rights. You may also have other rights granted under local law.
●
These rights may vary.
Only for electrical components.
●
ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ
год и месяц изготовления продукции указаны в серийном номере продукта.
(существует 2 способа определения даты изготовления, оба способа описаны ниже)
A
После S/N: первые две цифры означают год, вторые две – месяц изготовления.
Например, S/N: H1702000001 означает, что товар был произведен в феврале 2017 года.
B
После S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже,
и означают год, последующие две цифры – месяц изготовления.
Например, S/N: DAG02REVI000001 означает, что товар был произведен в феврале 2017 года.
A B C D E F G H I J
● Например,
1 2 3 4 5 6 7 8 9 0
AG = 17 = 2017 год

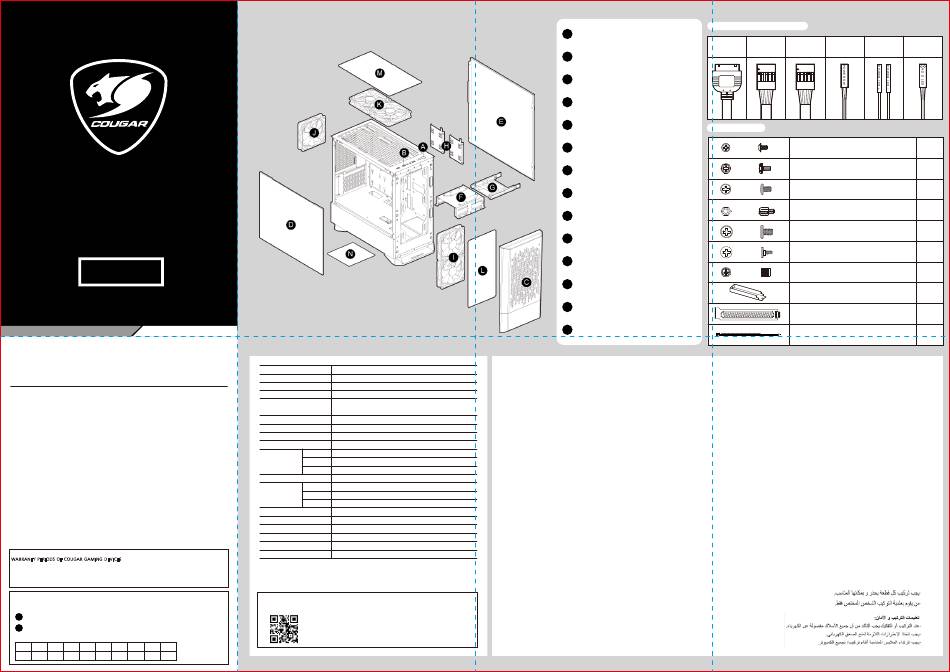

Assembly Drawing

Model Name
MG140 AIR RGB (BLACK) / (WHITE)
Model No.
CGR-5JM8B-AIR-RGB /CGR-5JM8W-AIR-RGB
Case Form Factor Mini Tower
Motherboard Type Mini ITX / Micro ATX
205 (W) x 410 (H) x 420 (D) mm
Dimensions (WxHxD)
8.1 (W) x 16.1 (H) x 16.5 (D) in
I/O Panel USB 3.0 x 2, USB 2.0 x 1, Mic x 1 / Audio x 1, RGB Button
3.5" Drive Bay 2
2.5" Drive Bay
4+2 (converted from 3.5" drive bays) / (2 SSD trays included)
Expansion Slots 4
Front 120mm x 2 / 140mm x 2 (120mm ARGB fan x 2 pre-installed)
Cooling Fan
Top 120mm x 2 / 140mm x 2
Support
Rear 120mm x 1 (120mm ARGB fan x 1 pre-installed)
Maximum Number of Fans 5 Max.
Front 280mm / 240mm / 140mm / 120mm
Water Cooling
Top -
Support
Rear 120mm
Transparent Left Panel
4mm Tempered Glass
Onboard Lighting System
Yes
RGB Sync with M/B Yes
Max. Graphics Card Length
350 (mm) / 13.8 in
Max. CPU Cooler Height 160 (mm) / 6.3 in
Max. PSU Length
160 (mm) / 6.3 in
Specifications might vary depending on the country or region of sale.
БЪЛГАРИЯ
• Подробни инструкции за употреба изтеглете от: https://cougargaming.com/bg
България QR код
A
Power button / RGB button
B
USB 3.0 / USB 2.0 / HD audio ports
C
Front panel
D
Tempered glass side panel
E
Right side panel
F
3.5" HDD cage (compatible for 2.5" HDD/SSD)
G
3.5" HDD tray (compatible for 2.5" HDD/SSD)
H
2.5" HDD/SSD trays
2 x 120mm / 2 x 140mm fans for front panel
I
(120mm ARGB fans x 2 pre-installed)
120mm fan for rear panel
J
(120mm ARGB fan pre-installed)
2 x 120mm / 2 x 140mm fans for top panel
K
(optional)
L
Air filter for front panel
M
Air filter for top panel
N
Air filter for bottom panel
ENGLISH PORTUGUÊS
Distinctive front panel with patterned air vents Painel frontal distinto com saídas de ar padronizadas
● ●
Integrated RGB system with 5V ARGB motherboard • Sistema RGB integrado com sincronização da placa-mãe
●
synchronization 5V ARGB
Support for Micro ATX / Mini ITX motherboards • Suporte para placas-mãe Micro ATX / Mini ITX
●
Massive tempered glass side window • Janela lateral de vidro temperado maciço
●
Up to 350mm graphics cards • Placas gráficas de até 350 mm
●
Up to five fans and 160mm CPU cooler • Até cinco ventiladores e cooler para CPU de 160 mm
●
Up to a 280mm water cooling radiator • Radiador de refrigeração de água de até 280 mm
●
DEUTSCH
РУССКИЙ
Markante Frontplatte mit gemusterten Lüftungsschlitzen Отличительная передняя панель с узорчатыми
● ●
вентиляционными отверстиями.
• Integriertes RGB-System mit 5V ARGB-Motherboard-
• Интегрированная система RGB с синхронизацией
Synchronisation
материнской платы 5V ARGB
• Unterstützung für Micro ATX / Mini ITX-Motherboards
• Поддержка материнских плат Micro ATX / Mini ITX.
• Massives Seitenfenster aus gehärtetem Glas
• Массивное боковое окно из закаленного стекла.
• Bis zu 350 mm Grafikkarten • Видеокарты до 350 мм
• До пяти вентиляторов и 160-мм кулер для процессора
• Bis zu fünf Lüfter und 160 mm CPU-Kühler
• Радиатор водяного охлаждения диаметром до 280 мм.
• Bis zu 280 mm Wasserkühler
ESPAÑOL FRANÇAIS
Panel frontal distintivo con salidas de aire estampadas Panneau avant distinctif avec bouches d'aération à motifs
● ●
• Système RVB intégré avec synchronisation de la carte
• Sistema RGB integrado con sincronización de placa
mère ARGB 5V
base ARGB de 5 V
• Prise en charge des cartes mères Micro ATX / Mini ITX
• Soporte para placas base Micro ATX / Mini ITX
• Vitre latérale massive en verre trempé
• Ventana lateral de vidrio templado masivo
• Cartes graphiques jusqu'à 350 mm
• Tarjetas gráficas de hasta 350 mm
• Jusqu'à cinq ventilateurs et refroidisseur de processeur
• Hasta cinco ventiladores y enfriador de CPU de 160 mm
de 160 mm
• Radiador de refrigeración por agua de hasta 280 mm • Jusqu'à un radiateur de refroidissement par eau de 280 mm
日本語 中 文
パターン化された通気孔を備えた特徴的なフロントパネル 前面板独特异形通风孔设计
● ●
5V ARGBマザーボード同期を備えた統合RGBシステム RGB整合系统支援5V ARGB主机板灯效同步控制功能
● ●
MicroATX / MiniITXマザーボードのサポート 支持Micro ATX / Mini ITX 主板
● ●
巨大な強化ガラスのサイドウィンドウ 全景钢化玻璃侧窗
● ●
最大350mmのグラフィックカード 最高支持 350mm 显卡
● ●
最高支持5个风扇和160mm CPU散热器
● 最大5つのファンと160mmのCPUクーラー ●
最高支持280mm 水冷排
最大280mmの水冷ラジエーター ●
●

Installing the Front I/O Connectors

USB 3.0 USB 2.0 HD AUDIO POWER SW POWER LED
USB3.0
USB
HD AUDIO
ACCESSORY KIT
Motherboard screws & 2.5" SSD screws
Power supply screws
3.5" HDD screws & PSU mounting bracket screws
Stand-off for motherboard
Fan screws
2.5" SSD step screws (using with rubbers)
Adapter for removing/installing stand-offs

PSU mounting bracket (for the stability)

Slot covers
Cable ties
POLISH
Charakterystyczny panel przedni z wzorzystymi otworami
●
wentylacyjnymi
• Zintegrowany system RGB z synchronizacją płyty głównej
5 V ARGB
• Obsługa płyt głównych Micro ATX / Mini ITX
• Masywna szyba boczna z hartowanego szkła
• Karty graficzne do 350 mm
• Do pięciu wentylatorów i 160 mm chłodzenie procesora
• Do 280 mm chłodnicy wody chłodzącej
ITALIA
Pannello frontale distintivo con prese d'aria a motivi geometrici
●
Sistema RGB integrato con sincronizzazione scheda madre
●
5V ARGB
Supporto per schede madri Micro ATX / Mini ITX
●
Massiccio finestrino laterale in vetro temperato
●
Schede grafiche fino a 350 mm
●
Fino a cinque ventole e dispositivo di raffreddamento della CPU
●
da 160 mm
Radiatore di raffreddamento ad acqua fino a 280 mm
●
한국어
● 패턴이있는 통풍구가있는 독특한 전면 패널
● 5V ARGB 마더 보드 동기화를 지원하는 통합 RGB 시스템
● Micro ATX / Mini ITX 마더 보드 지원
● 대형 강화 유리 측면 창
최대 350mm 그래픽 카드
●
최대 5 개의 팬과 160mm CPU 쿨러
●
● 최대 280mm 수냉 라디에이터
H.D.D LED
- +
X 14
X 4
X 11
X 1
X 8
X 8
X 1
X 1
X 1
X 4
