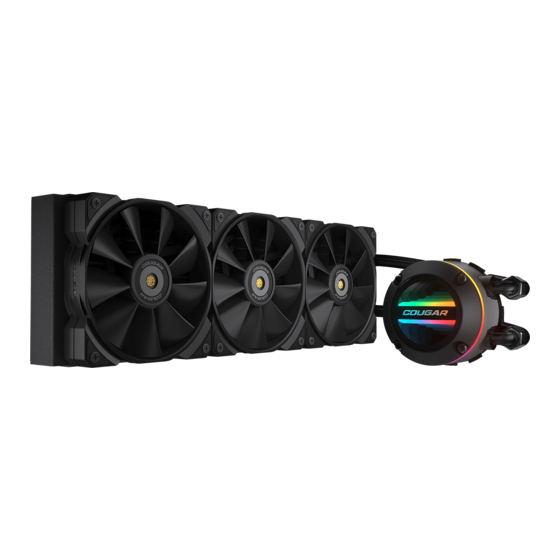

COUGAR POSEIDON LT 360 Manual

POSEIDON LT
360

SPECIFICATIONS

Product Name POSEIDON LT 360
Intel Socket LGA 775 / 1155 / 1156 / 1200 / 1366 / 1700 / 2011 / 2066
(Core i3 / i5 / i7 CPU)
CPU Socket
AMD AM5 / AM4 / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 CPU
Water Block & Pump
Dimensions (WxDxH) 60 x 60 x 50 mm
Cold Plate Material Copper
Pump Speed 3200 ± 10% R.P.M
Rated Voltage 12 VDC
Rated Current 0.39 A
Power Consumption 4.68 W
Connector SATA & 5V RGB
Radiator
Type 360mm
Dimension (WxDxH) 394 x 120 x 27mm
Material Aluminum
Tubing
Material Durable Rubber with Sleeves
Length 400 mm
Fans
Fan Model Vortex WB 120
Fan Quantity 3
Dimensions (WxDxH) 120 x 120 x 25 mm
Bearing Type Hydro-Dynamic Bearing
Fan Speed 600-2000 ± 200 R.P.M
Air Flow 87.1 CFM (Max.)
Air Pressure 2.93 mm-H2O (Max.)
Acoustic Noise <40 dBA (Max.)
Rated Voltage 12 VDC
Rated Current 0.32 A
Power Consumption 3.84 W
Cable Length Fan power: 600 mm
Connector & Control 4 Pin PWM
The above specifications may vary by country or region

PACKAGE CONTAINS

POSEIDON LT 360 x 1 Vortex WB 120 x 3 Wireless Controller x1
Mounting Kit x 1 1 to 3 Fan Splitter x 1 User Manual x 1

INSTALL CONTENTS

A Vortex WB 120 x 3 B-1 Backplate x 1 B-2 Backplate x 1
LGA 115X / 1200 / 1366 / LGA 1700
775 / 20XX
D Backplate Screw x 4 E Fan Screw x 12 F Thermal Paste x 1
H Spacer x 4 I Standoff x 4 J AMD Bracket Screw x 2
L Screw x 4 M Radiator Screw x 12 N 1 to 3 Fan Splitter x 1
for B-2 Backplate
Intel
LGA20XX
F
Preparation
Intel
Intel
LGA115X / 1200 / 1366 / 775
C AMD Bracket x 1
G Nut x 4
K Screw x 4
1
for B-1 Backplate
L G A 7 7 5
L G A 11 5 X / 1 2 0 0
O Wireless Controller x1
B-1
Intel
LGA1700
G
K
F
2
L G A 1 3 6 6
D
INTEL
F
LGA1700
G
I
H
B-1
D
G
L
B-2
