Simpli Home WyndenHall brooklin+max AXCBCDRP-03 Assembly Instructions Manual

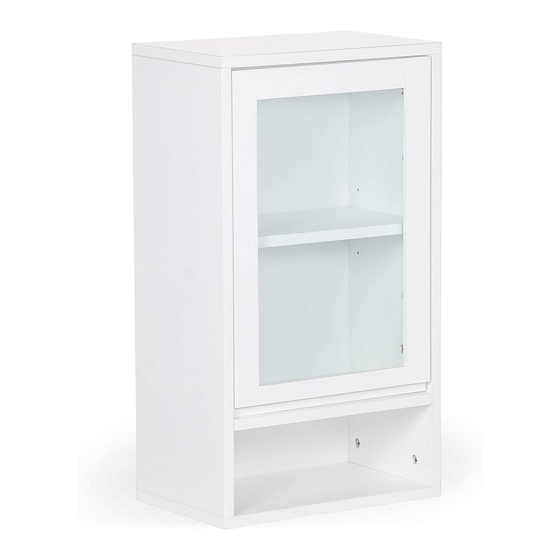

Draper / baxter / tierney single door wall cabinet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

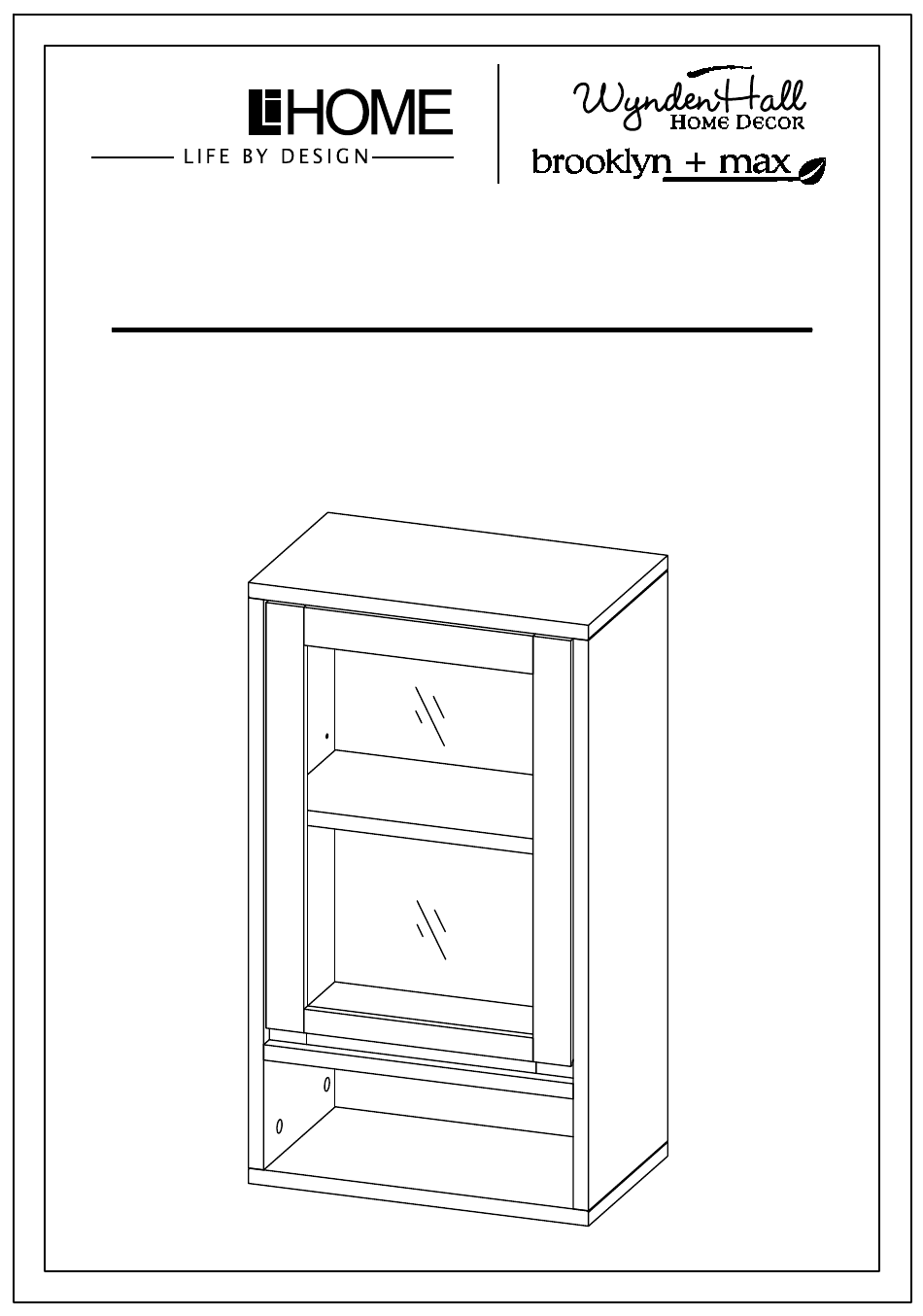

TM
S IMP HOME
®
TM
DRAPER / BAXTER / TIERNEY
SINGLE DOOR WALL CABINET
MODEL #
XCB
A
CDRP-03
1
/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WyndenHall brooklin+max AXCBCDRP-03 and is the answer not in the manual?

Questions and answers

Related Manuals for Simpli Home WyndenHall brooklin+max AXCBCDRP-03

Summary of Contents for Simpli Home WyndenHall brooklin+max AXCBCDRP-03

  • Page 1 S IMP HOME ® DRAPER / BAXTER / TIERNEY SINGLE DOOR WALL CABINET MODEL # CDRP-03...
  • Page 2 S IMP HOME ® Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –4 pm EST or go to www.simpli-home.com/parts request In order to assist you in a timely manner, please have the following...

  • Page 3: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.

  • Page 4: Care And Maintenance

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.

  • Page 5: Pre-Assembly Information

    PRE-ASSEMBLY INFORMATION MODEL # AXCBCDRP-03 PART DESCRIPTION TOP & BOTTOM LEFT SIDE RIGHT SIDE QTY 2 QTY 1 QTY 1 MIDDLE SHELF SHELF BACK BAR QTY 1 QTY 1 QTY 1 WALL MOUNT BAR TOP BACK PANEL BOTTOM BACK PANEL QTY 1 QTY 1 QTY 1...

  • Page 6: Hardware Description

    PRE-ASSEMBLY INFORMATION MODEL # AXCBCDRP-03 HARDWARE DESCRIPTION CAM LOCK PIN WOOD DOWEL CAM LOCK ADJUSTABLE HINGE Ø8 X 30mm QTY 14 SETS QTY 2 QTY 4 PHILLIPS SCREW SHELF SUPPORT MAGNET AND PLATE M4 X 50mm QTY 4 QTY 1 SET QTY 3 PHILLIPS SCREW ROUND HEAD PHILLIPS SCREW...
  • Page 7 COMPONENTS-KEY DIAGRAM MODEL # AXCBCDRP-03...
  • Page 8 ASSEMBLY MODEL # AXCBCDRP-03 STEP-1 1. Attach Cam Lock Pins 1 into pre-drilled holes on parts A , BL , BR . 3. Use Phillips screwdriver to secure Cam Lock Pins and Screws. Do not over-tighten. 4. Insert Dowels 2 into guide holes on part E . 5.
  • Page 9 ASSEMBLY MODEL # AXCBCDRP-03 STEP-2 1. Align Wood Dowels and Cam Lock Pins with guide holes and attach parts C , E to Left Side BL . 2. Insert Cam Locks 1 into guide holes on each part C , E . 3.
  • Page 10 ASSEMBLY MODEL # AXCBCDRP-03 STEP-3 1. Repeat Step-2 for the Right Side BR .
  • Page 11 ASSEMBLY MODEL # AXCBCDRP-03 STEP-4 1. Align Cam Lock Pins with guide holes and attach part A to Sides BL , BR . 2. Insert two Cam Locks 1 into guide holes on each Side BL , BR . 3. Use Phillips screwdriver to secure Cam Locks.
  • Page 12 ASSEMBLY MODEL # AXCBCDRP-03 STEP-5 Warning Label...
  • Page 13 ASSEMBLY MODEL # AXCBCDRP-03 STEP-6 1. Align Cam Lock Pins with guide holes and attach part A to parts BL , BR . 2. Insert Cam Locks 1 into guide holes on each part BL , BR . 3. Use Phillips screwdriver to secure Cam Locks.
  • Page 14 ASSEMBLY MODEL # AXCBCDRP-03 Note: STEP-7 1. Attach the Back Panels G , H to back frame using Phillips Screws Round Head 8 through guide holes from Back Panels. 2. Attach the Corners Support 11 to back frame using Phillips Screws 7 through guide holes from Corners Support 11 .
  • Page 15 ASSEMBLY MODEL # AXCBCDRP-03 STEP-9 1. Attach Adjustable Hinges 3 to Door I using Phillips Screws 7 into pre-drilled holes on Door I . STEP-10 1. Attach Adjustable Hinges 3 on Door I to Right Side BR using Phillips Screws 7 into pre-drilled holes on Right Side BR . 2.

  • Page 16: Important Note

    ASSEMBLY MODEL # AXCBCDRP-03 STEP-11 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1.
  • Page 17 ASSEMBLY MODEL # AXCBCDRP-03 STEP-12 - Positioning 1. Determine the location for the unit on the wall. The Top A should be approximately 1 ¼” above the top of the Wall Mount Bar F when mounted. 2. Place the Wall Mount Bar F at the predetermined height. Use a level to ensure that it is straight.
  • Page 18 ASSEMBLY MODEL # AXCBCDRP-03 STEP-14 1. Align the top of the Wall Mount Bar F with the bottom of the angled bracket on the back of the Cabinet. 2. Gently slide the Cabinet down on to the Wall Mount Bar F .

  • Page 19: Warranty

    S IMP HOME ® WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
