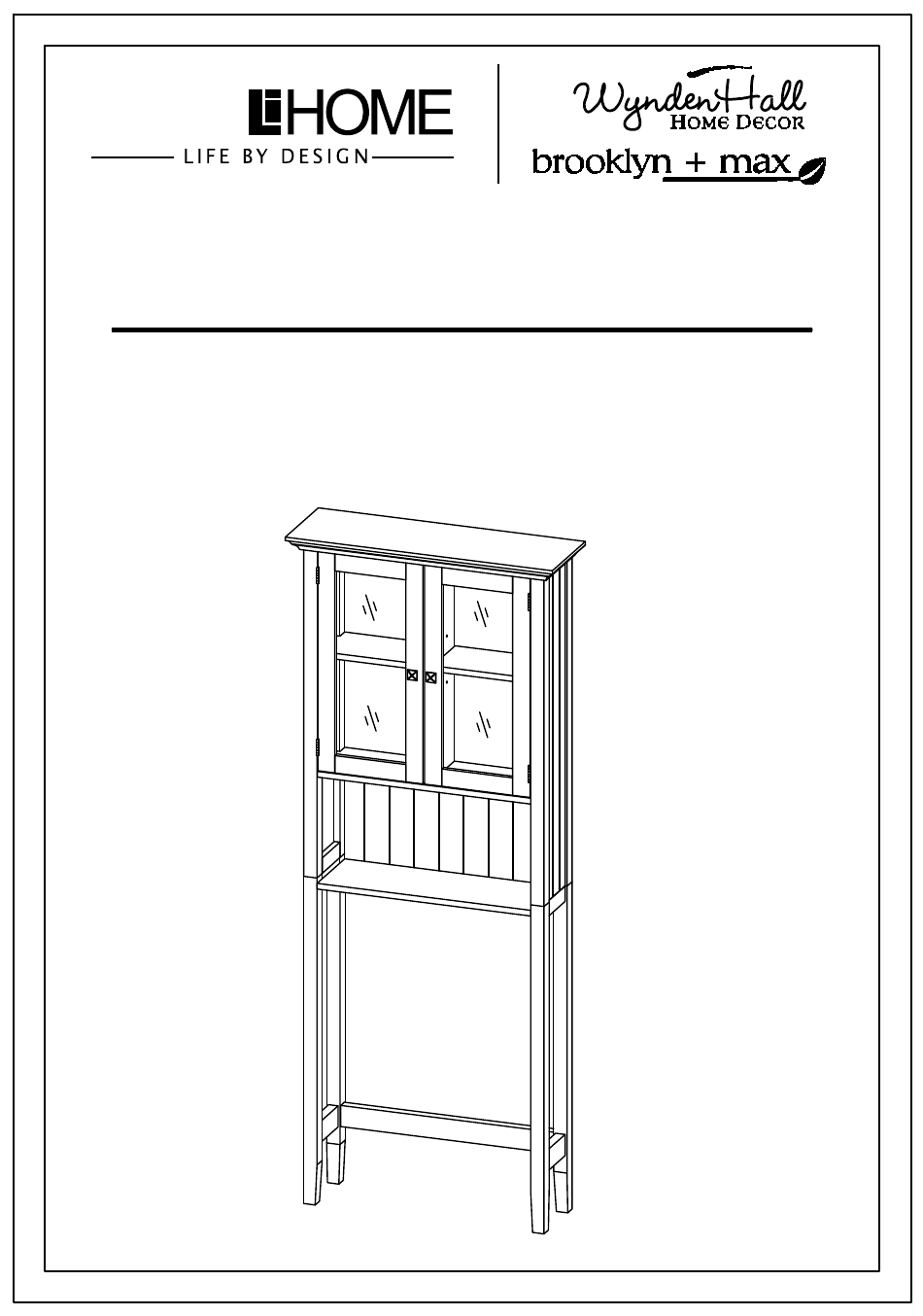

ACADIAN / NORMANDY / BRUNSWICK
SPACE SAVER CABINET
MODEL # AXCBSACA07-WH
1
/24

Advertisement

loading
Need help?

Need help?

Do you have a question about the Wyndenhall Brooklyn + Max AXCBSACA07-WH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Simpli Home Wyndenhall Brooklyn + Max AXCBSACA07-WH

  • Page 1 S IMP HOME ® ACADIAN / NORMANDY / BRUNSWICK SPACE SAVER CABINET MODEL # AXCBSACA07-WH...
  • Page 2 S IMP HOME ® Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –4 pm EST or go to www.simpli-home.com/parts request In order to assist you in a timely manner, please have the following...
  • Page 3: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.
  • Page 4: Care And Maintenance

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.
  • Page 5: Pre-Assembly Information

    PRE-ASSEMBLY INFORMATION MODEL # AXCBSACA07-WH PART DESCRIPTION TOP LEFT SIDE TOP RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM LEFT SIDE BOTTOM RIGHT SIDE MIDDLE SHELF QTY 1 QTY 1 QTY 1 BOTTOM SHELF TOP BAR BOTTOM BAR QTY 1 QTY 1 QTY 1 NEED HELP? For help with assembly or if you are missing a part,...
  • Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXCBSACA07-WH PART DESCRIPTION DOOR (L&R Same) DIVIDER BOTTOM BACK PANEL QTY 2 QTY 1 QTY 1 SHELF LEFT BACK PANEL RIGHT BACK PANEL QTY 2 QTY 1 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.
  • Page 7 PRE-ASSEMBLY INFORMATION MODEL # AXCBSACA07-WH HARDWARE DESCRIPTION CAM LOCK PIN WOOD DOWEL CAM LOCK HINGE MAGNET AND PLATE Ø8 X 30mm QTY 16 SETS QTY 2 SETS QTY 4 QTY 13 HANDLE PHILLIPS SCREW SHELF SUPPORT BRACKET M4 X 25 mm M4 X 50mm QTY 8 QTY 2...
  • Page 8 COMPONENTS-KEY DIAGRAM MODEL # AXCBSACA07-WH...
  • Page 9 ASSEMBLY MODEL # AXCBSACA07-WH STEP-1 1. Attach Cam Lock Pins 1 into pre-drilled holes on each part A , BL , BR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert Dowels 2 into guide holes on parts F , H . 4.
  • Page 10 ASSEMBLY MODEL # AXCBSACA07-WH STEP-2 1. Align Wood Dowels with guide holes and attach Divder H to Middle Shelf D . 2. Use two Phillips Screws 8 to attach Middle Shelf D through guide holes from Middle Shelf D to pre-drilled holes of Divider H . 3.
  • Page 11 ASSEMBLY MODEL # AXCBSACA07-WH STEP-3 1. Align Wood Dowels with guide holes on part BL and attach part F to Left Side BL . 2. Align Cam Lock Pins with guide holes on part D and attach part D to Left Side BL . 3.
  • Page 12 ASSEMBLY MODEL # AXCBSACA07-WH STEP-4 1. Repeat Step-3 for the Right Side BR .
  • Page 13 ASSEMBLY MODEL # AXCBSACA07-WH STEP-5 1. Align Cam Lock Pins with guide holes and attach part A to Sides BL , BR , H . 2. Insert two Cam Locks 1 into guide holes on each part BL , BR , H . 3.
  • Page 14 ASSEMBLY MODEL # AXCBSACA07-WH STEP-6 1. Attach three Cam Lock Pins 1 into pre-drilled holes on each part CL , CR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert Dowels 2 into guide holes on parts G , CL , CR . 4.
  • Page 15 ASSEMBLY MODEL # AXCBSACA07-WH STEP-7 1. Align Wood Dowels and Cam Lock Pins with guide holes and attach parts E , G to part CL . 2. Insert Cam Locks 1 into guide holes on parts E , G . 3.
  • Page 16 ASSEMBLY MODEL # AXCBSACA07-WH STEP-8 1. Repeat Step-7 for the Bottom Right Side CR .
  • Page 17 ASSEMBLY MODEL # AXCBSACA07-WH STEP-9 1. Align Wood Dowels with guide holes on top fame and attach top frame to bottom frame. 2. Use four Phillips Screws 8 into guide holes on bottom fame . 4. Use Phillips screwdriver to secure Screws. Do not over-tighten.
  • Page 18 ASSEMBLY MODEL # AXCBSACA07-WH Note: STEP-10 Warning Label 1. Attach the Back Panels J , JL , JR to back frame using Phillips Screws Round Head 11 through guide holes from Back Panels. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
  • Page 19 ASSEMBLY MODEL # AXCBSACA07-WH STEP-11 1. Use four Shelf Supports 7 for each Shelf K in desired location .
  • Page 20 ASSEMBLY MODEL # AXCBSACA07-WH STEP-12...
  • Page 21 ASSEMBLY MODEL # AXCBSACA07-WH STEP-13...
  • Page 22 FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. STEP-14 NOTE: The screwdriver is not included in the hardware pack.
  • Page 23 FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
  • Page 24: Warranty

    S IMP HOME ® WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
