Summary of Contents for Simpli Home WyndenHall Brooklyn + Max AXCB222-GR

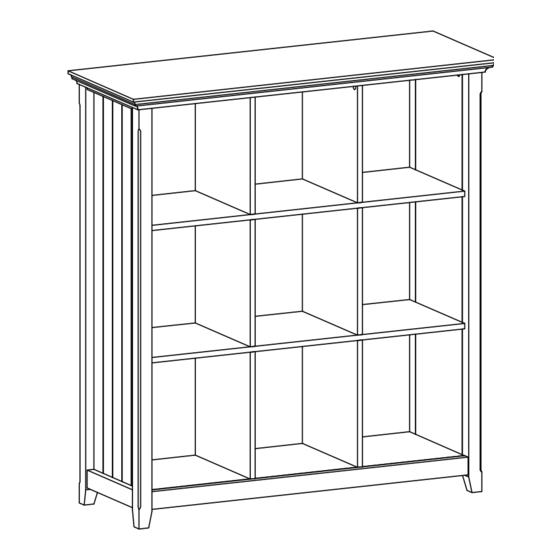

- Page 1 S IMP HOME ® ACADIAN / NORMANDY / BRUNSWICK 9 CUBE STORAGE / BOOKCASE MODEL # AXCB222-GR...
- Page 2 S IMP HOME ® Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –4 pm EST or go to www.simpli-home.com/parts request In order to assist you in a timely manner, please have the following...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 4: Care And Maintenance
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCB222-GR PART DESCRIPTION LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM DIVIDER MIDDLE DIVIDER TOP DIVIDER ( L&R Same) ( L&R Same) ( L&R Same) QTY 2 QTY 2 QTY 2 TOP SHELF BOTTOM SHELF LEFT BACK PANEL QTY 2... -
Page 6: Hardware Description
PRE-ASSEMBLY INFORMATION MODEL # AXCB222-GR HARDWARE DESCRIPTION CAM LOCK PIN ALLEN KEY SCREW CAM LOCK M6 X 30mm ALLEN KEY QTY 6 QTY 30 SETS QTY 1 M4 X 25mm - QTY 2 ( 1 is extra ) M4 X 15mm - QTY 1 M4 X 25mm - QTY 1 M4 X 15mm FURNITURE TIP OVER RESTRAINT... - Page 7 COMPONENTS-KEY DIAGRAM MODEL # AXCB222-GR...
- Page 8 ASSEMBLY MODEL # AXCB222-GR STEP-1 1. Attach Bottom Dividers C using six Allen Key Screws 1 through guide holes on Bottom Shelf E . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten STEP-2 1. Align Wood Dowels with guide holes on first Top Shelf D and attach Bottom Dividers C to Top Shelf D .
- Page 9 ASSEMBLY MODEL # AXCB222-GR STEP-3 1. Align Wood Dowels with guide holes on Top Shelf D and attach Bottom Dividers C1 to Top Shelf D . STEP-4 1. Align Wood Dowels with guide holes on second Top Shelf D and attach Bottom Dividers C1 to Top Shelf D .
- Page 10 ASSEMBLY MODEL # AXCB222-GR STEP-5 1. Attach nine Cam Lock Pins 2 into pre-drilled holes on each Side B L , B R 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
- Page 11 ASSEMBLY MODEL # AXCB222-GR STEP-6 1. Align Cam Lock Pin with guide holes on parts E , D and attach Right Side BR to parts D , E . 2. Insert three Cam Locks 2 into guide holes on each part D , E . 3.
- Page 12 ASSEMBLY MODEL # AXCB222-GR STEP-7 1. Repeat Step-6 for the Left Side BL .
- Page 13 ASSEMBLY MODEL # AXCB222-GR STEP-8 1. Align Wood Dowels with guide holes on Top Shelf D and attach Top Dividers C2 to Top Shelf D .
- Page 14 ASSEMBLY MODEL # AXCB222-GR STEP-9 1. Attach twelve Cam Lock Pins 2 into pre-drilled holes on Top A . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
- Page 15 ASSEMBLY MODEL # AXCB222-GR STEP-10 1. Align Cam Lock Pin with guide holes on parts BL , BR , C2 and attach Top A to parts BL , BR , C2 . 2. Insert three Cam Locks 2 into guide holes on each part BL , BR , C2 . 3.
- Page 16 ASSEMBLY MODEL # AXCB222-GR STEP-11 Warning Label Note: 1. Attach the Back Panels FL , FR , F1 to back frame using Phillips Screws Round Head 4 through guide holes from Back Panels. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 17 FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. STEP-12 NOTE: The screwdriver is not included in the hardware pack.
- Page 18 FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
-
Page 19: Warranty
S IMP HOME ® WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
