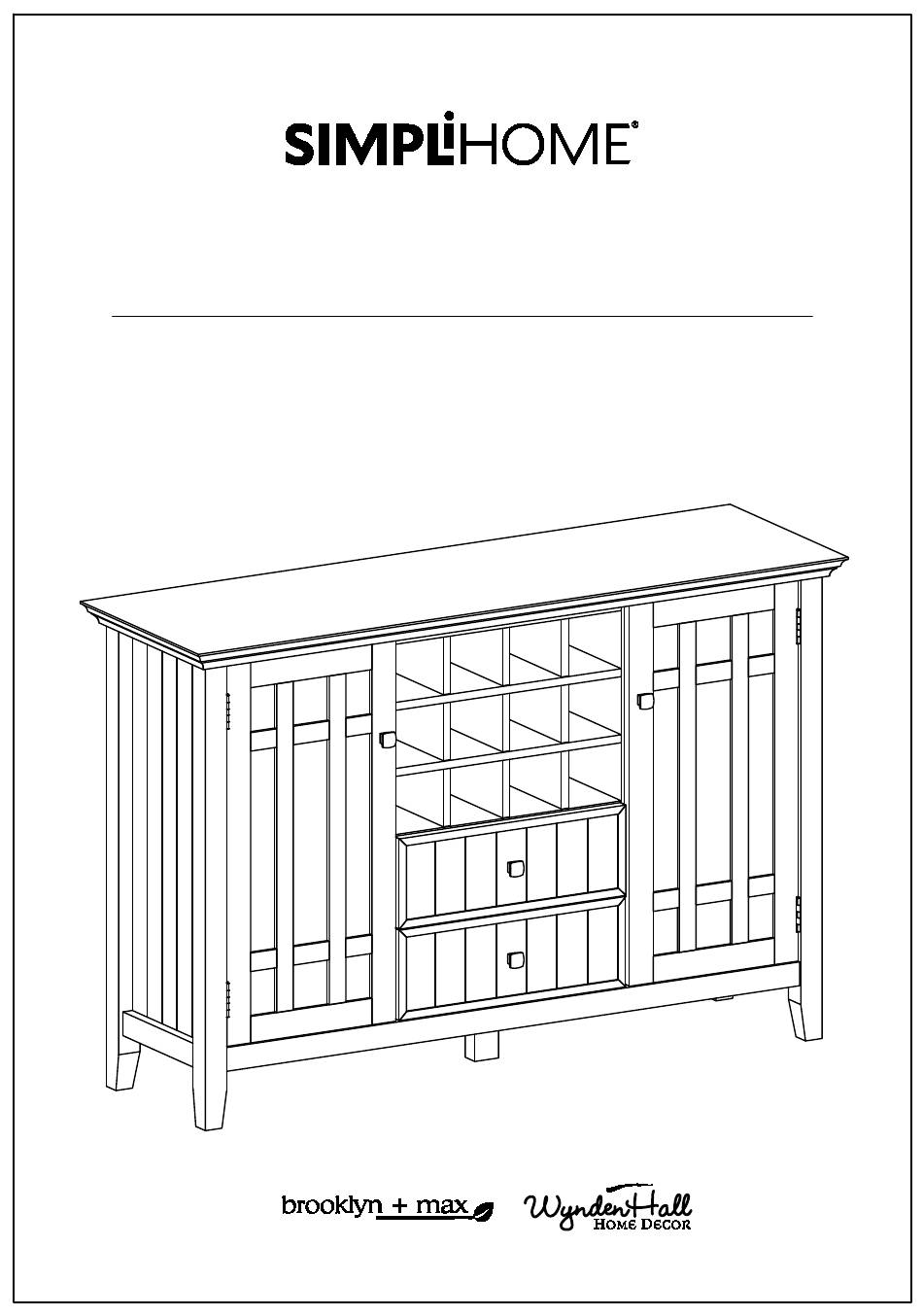

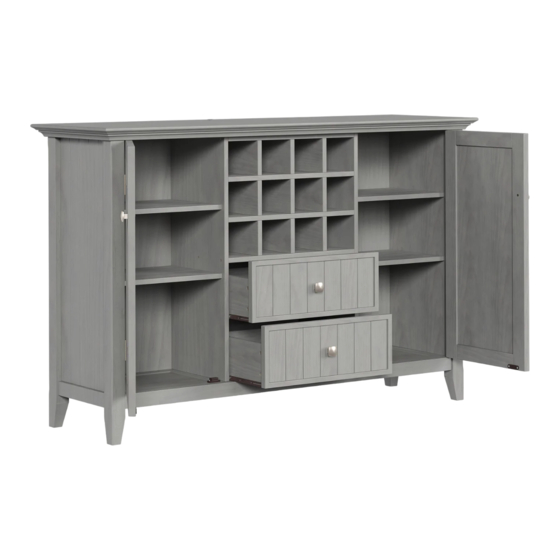

  • Page 1 Bedford / Freemont / Hampton Sideboard Buffet and Wine Rack Model # AXCBED-04-FOG...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 Pre-Assembly Information Model # AXCBED-04-FOG Part Description BOTTOM FRAME SHELF QTY 1 QTY 1 QTY 4 LEFT SIDE RIGHT SIDE LEFT DIVIDER QTY 1 QTY 1 QTY 1 RIGHT DIVIDER LEFT DOOR RIGHT DOOR QTY 1 QTY 1 QTY 1 Warning Label LEFT BACK PANEL RIGHT BACK PANEL...
  • Page 8 Pre-Assembly Information Model # AXCBED-04-FOG Part Description BOTTOM BACK PANEL BOTTOM SHELF TOP SHELF QTY 1 QTY 1 QTY 1 DRAWER FRONT DIVIDER MIDDLE SHELF QTY 9 QTY 2 QTY 2 LEFT DRAWER SIDE RIGHT DRAWER SIDE DRAWER BACK QTY 2 QTY 2 QTY 2 DRAWER BOTTOM...
  • Page 9 Pre-Assembly Information Model # AXCBED-04-FOG Hardware Description HANDLE M4 X 15mm - QTY 2 CAM LOCK PIN ALLEN KEY BOLT ALLEN KEY SCREW M4 X 25mm - QTY 2 CAM LOCK M6 X 30mm M6 X 30mm QTY 4 SETS QTY 8 SETS QTY 12 QTY 30...
  • Page 10 Components - Key Diagram Model # AXCBED-04-FOG...
  • Page 11 Assembly Model # AXCBED-04-FOG Step 1 1. Attach 4 Cam Lock Pins 3 into pre-drilled holes on back of Drawer Front L . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides ML , MR . 3. Insert 2 Cam Locks 3 into guided holes on each Drawer Side ML , MR . 4.
  • Page 12 Assembly Model # AXCBED-04-FOG Step 3 1. Align Drawer Back N with Drawer Bottom O and press firmly into slot . 2. Attach Drawer Back using 2 Allen Key Screws 2 through guided holes on each Side ML , MR . 3.
  • Page 13 Assembly Model # AXCBED-04-FOG Step 5 1. Attach Dividers EL , ER to Bottom Shelf H using 6 Allen Key Screws 2 (3 Screws on each Divider ). 2. Use Allen Key 5 to tighten screws. Do not over-tighten.
  • Page 14 Assembly Model # AXCBED-04-FOG Step 6 1. Insert 12 Dowels 7 into guided holes on 3 Dividers K (4 dowels on each Divider). 2. Use rubber mallet to tap Dowels 7 into bottom of holes securely. ½ length of Dowels should be exposed. 3.
  • Page 15 Assembly Model # AXCBED-04-FOG Step 7 1. Attach one Middle Shelf J to Dividers K with guided holes on the Middle Shelf J .
  • Page 16 Assembly Model # AXCBED-04-FOG Step 8 1. Repeat Step 6, 7 for the other Dividers K and Middle Shelves J .
  • Page 17 Assembly Model # AXCBED-04-FOG Step 9 1. Align Dowels 7 on Dividers K with guided holes on Top Shelf I . 2. Attach Top Shelf I to Dividers EL , ER using 4 Allen Key Screws 2 (2 Screws on each Divider ). 3.
  • Page 18 Assembly Model # AXCBED-04-FOG Step 10 This Side Up 1. Attach Dividers EL , ER to Bottom Shelf B using 6 Allen Key Screws 2 (3 Screws on each Divider ). 2. Use Allen Key 5 to tighten screws. Do not over-tighten. 3.
  • Page 19 Assembly Model # AXCBED-04-FOG Step 11 1. Attach Bottom Shelf B to Sides DL , DR using 6 Allen Key Bolts 1 ( 3 Bolts on each Side ). 2. Use Allen Key 5 to tighten screws. Do not over-tighten.
  • Page 20 Assembly Model # AXCBED-04-FOG Step 12 1. Attach Bottom Support Leg P to Bottom Shelf B using 4 Phillips Screws 12 . 2. Use Phillips screwdriver to tighten screws. Do not over-tighten.
  • Page 21 Assembly Model # AXCBED-04-FOG Step 13 1. Turn product stay upward before install the Top A . 2. Attach Top A to Sides DL , DR using 6 Allen Key Bolts 1 ( 3 Bolts on each Side ). 3. Attach Top A to Dividers EL , ER using 6 Allen Key Screws 2 ( 3 Screws on each Divider ).
  • Page 22 Assembly Model # AXCBED-04-FOG Step 14 Warning Label 1. Attach the Back Panels GL , GR , G1 , G2 to back frame of cabinet using Phillip Screws Round Head 6 through guided holes. 2. Use Phillips screwdriver to tighten screws.
  • Page 23 Assembly Model # AXCBED-04-FOG Step 15 First Step Last Step ( after adjust the door )
  • Page 24 Assembly Model # AXCBED-04-FOG Step 16 NOTE: The screwdriver is not included in the hardware pack.
  • Page 25 Assembly Model # AXCBED-04-FOG Step 17 shelf support anti - tipping shelf level 1 shelf level 2 shelf level 3 1. Use four Shelf Supports 9 for each Cabinet Shelf C in desired location . 2. Two Shelf Supports 9 may be used on back top of each Cabinet Shelf C as a tipping restraint.
  • Page 26 Assembly Model # AXCBED-04-FOG Step 18 1. Insert assembled drawers into glides on assembled Sideboard Buffet.
  • Page 27 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 19 NOTE: The screwdriver is not included in the hardware pack.
  • Page 28 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
