- Page 1 Instruction Manual Sandblasting Cabinet SSK 3.1 SSK 3.1...
-
Page 2: Table Of Contents
Stürmer. Passing on as well as copying of this document, the use and distribution of its content are prohibited if not explicity permitted. Contra- ventions are liable to compensation. Subject to technical modifications and error. SSK 3.1 | Version 1.07... -
Page 3: Introduction
Spare parts orders: Fax: 0049 (0) 951 96555-119 Email: ersatzteile@stuermer-maschinen.de We are always interested in valuable experience and knowledge gained from using the application-which then could be shared and be valuable to develop our products even further. SSK 3.1 | Version 1.07... -
Page 4: Symbol Explanation
- The operator must have all safety devices checked regularly for their good working order and their in- tegrity.. SSK 3.1 | Version 1.07... -
Page 5: Requirements To Staff
Certain works may only be performed by specialist per- sonnel of the manufacturer. Other personnel is not au- thorized to perform these works. Please contact our cu- stomer service for the execution of all arising work. SSK 3.1 | Version 1.07... -
Page 6: Safety Information
Blasting agent particle 0,125 mm - 0,42 mm size Compressed air connec- 3/8“ tion Fig. 1: Safety markings of the Sandblasting cabinet SSK 3.1 Air requirements approx. 400 - 800 Liters/min Intended use Electrical connection 230 V / 50 Hz The sandblasting cabin SSK 3.1 is used exclusively for... -
Page 7: Transport, Packaging And Storage

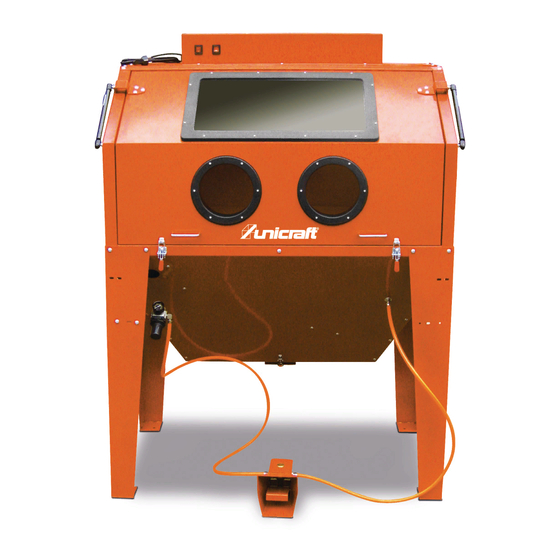

To protect against moisture and dirt, all bare metal parts are greased. Fig. 2: Sandblasting cabinet SSK 3.1 1 Extraction 2 Door with seal Tips and recommendation... -
Page 8: Assembly And Connecting
Mount the front door on the cab. Step 9: Insert the inspection window on the cabin top. Step10: Secure the lighting to the cabin top with the four enclosed screws, spacers and nuts. Fig. 3: Ground connection SSK 3.1 | Version 1.07... -
Page 9: Compressed Air Conneciton
During operation, a noise level of over 85 dB (A) may occur. From 85 dB (A), ear protection must be worn! NOTE! The workpiece must be clean and dry Use safety goggles! Use respiratory protection! SSK 3.1 | Version 1.07... -
Page 10: Care, Maintenance And Repair
Never use harsh detergents for cleaning. This can testing depending on the blasting medium and the re- lead to damage or destruction of the device quirement. SSK 3.1 | Version 1.07... -
Page 11: Maintenance And Repair
The contact details can be found in chapter 1.2 Customer Service. All protective and safety equipment must be reinstalled Fig. 6: Filter of the Sandblasting cabinet SSK 3.1 immediately after repair and maintenance work has been completed. -
Page 12: Disposal, Recycling Of Used Devices
The gloves for the Sandblasting cabinet must be or- the product-specific data sheets. dered. 11 Spare parts - Type of device: Sandblasting cabinet SSK 3.1 - Item number: 6204005 DANGER! - Position number: 9 Risk of injury through use wrong... -
Page 13: Spare Parts Drawing
In case of service, the following drawing shall help to identify the necessary spare parts. If necessary, send a copy of the drawing with the marked components to your authorised dealer. Fig. 7: Spare parts drawing SSK 3.1 12 Electric circuit diagram Fig. -
Page 14: Ec Declaration Of Conformity
<= 16 A per conductor, which are not subject to any special connection conditions Responsible for documentation: Kilian Stürmer, Stürmer Maschinen GmbH, Dr.-Robert-Pfleger-Str. 26, D-96103 Hallstadt Hallstadt, den 08.11.2017 ______________________ Kilian Stürmer Manager SSK 3.1 | Version 1.07... -
Page 15: Annex
The gloves where manufactured and checked in accordance with the directive 89/686/EWG. Following standards where used: EN 388:2003 and EN 420:2003 + A1:2009. This leaflet has to be supplied with every protection glove listed in this brochure. The leaflet can therefore be copied without any restrictions. SSK 3.1 | Version 1.07... - Page 16 www.unicraft.de...
