Summary of Contents for Allegion Interflex IF-4072

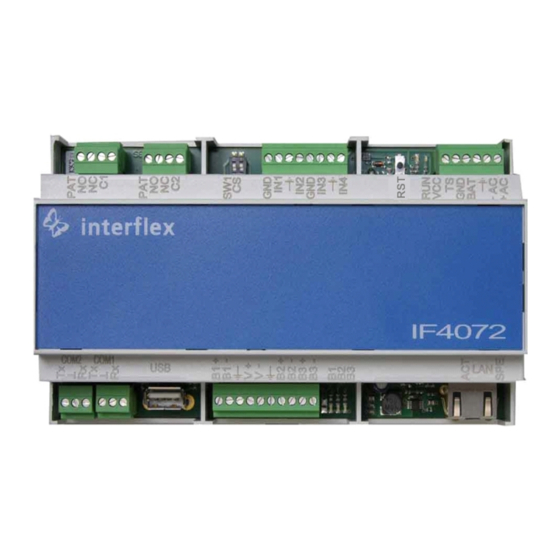

- Page 1 Controller IF-4072 Controller 00-4072-04xx...
-
Page 2: Table Of Contents
Table of contents Table of contents 1 General information.......................... 1.1 Short description ......................... 1.2 Scope of delivery ........................1.3 Intended use ..........................1.4 Target group ..........................1.5 Safety ............................1.6 Abbreviations ..........................1.7 Cable lengths and cable types....................2 System overview..........................2.1 Range of functions ........................ -
Page 3: General Information
General information 1 General information 1.1 Short description The controller IF-4070 serves as the connecting link between a maximum of 16 Interflex readers for time & attendance recording or access control. Two integrated relays and four input contacts allow for the control and monitoring of doors, for example. -
Page 4: Safety
General information 1.5 Safety NOTICE Property damage due to transient overvoltages Transient overvoltages (surges, bursts) in the energy supply network can lead to malfunctions and failures. Use suitable mains filters that are professionally installed and operated. NOTICE Damage due to electrostatic discharge (ESD) Electrical components and modules can be damaged by only slight, hardly noticeable electrostatic discharge (ESD) without this becoming immediately obvious. -
Page 5: Cable Lengths And Cable Types
General information Secure shell 1.7 Cable lengths and cable types Cable Function Max. Length Recommended cable type 230 V AC power supply to power supply unit (if not NYM 3 x 1.5 mm pre-installed) Network cabling: RJ45 patch cable, preferably shield 100 m From category 5 braiding... -
Page 6: System Overview
System overview 2 System overview Controller Cable to floating status contacts Inputs for floating status contacts Control cable Relay with 30V, 2A switch contacts Power cable (not applicable for PoE) Switch or PoE device Ethernet without PoE Host system Terminal bus cable Readers for recording time data RS485 branch cable from reader to bus cable Reader for access control... -
Page 7: Range Of Functions
System overview 2.1 Range of functions Main functions of the If-407x controller: Field of Application The controllers are operated with the IF6020 or IF6040 host system and control up to 16 Interflex readers for time & attendance recording or access control that are distributed among three RS485 interfaces. The controllers check the booking data from the readers and transfer it to the host system in real-time. - Page 8 System overview RJ45 socket for the connection to the 10-pin for RS485 Ethernet network (host system) bus data cables 1 2 3 USB connection (for future use) 3-pin for RS232 service device Host connection via serial interface (RS232) LEDs, push-buttons and switches Description Function Factory reset: Save IP address settings temporarily and set...
-
Page 9: Mounting The Controller
Mounting the controller 3 Mounting the controller NOTICE Damage to property due to manipulation of the controller Manipulation of the controller can lead to data loss. Install the controller in the secured area, taking the technical requirements into account Mount the controller on a TS35 DIN rail, e.g. in a distribution box. 4 Connecting the controller 4.1 Wiring components The cables can be fixed to the cutouts in the bottom plate of the housing with cable ties. - Page 10 Connecting the controller BUS 3- BUS 3+ BUS 2- BUS 2+ BUS 1- BUS 1+ You can find further information on how to connect the bus data cables in the section IF-4072 controller overview [} 7]. Floating status contacts and relays Relays 230 V Status contacts...
-
Page 11: Connecting The Power Supply
Connecting the controller Observe the notes under Cable lengths and cable types [} 5]. When connecting external devices, take into account the switching capacity, the cable length and the line resistance. Use several cable cores to switch remote devices. Connect the cable shields as shown in the diagram to maintain the required EMC values. 4.2 Connecting the power supply NOTICE Malfunction due to improper electrical installation... -
Page 12: Initial Operation
Initial operation To comply with the specified EMC limits, the controller requires functional grounding via the PoE device and the patch cable. Procedure Make sure that the PoE device is functionally grounded Ground PoE devices without functional grounding via existing soldering lugs or screw terminals Ground the shields of the bus cables via terminal strip KL.4 Redundant power supply... -
Page 13: Connecting The Controller To The Network
Initial operation Service interface IF-4xxx controller 75-4070-0001 service cable 4xxx (connection in housing) IF-4070 controller 75-4070-0002 service cable 4xxx (connection via RJ45) IF-5xxx terminal 75-99-0006 Service cable 5xxx 5.1 Connecting the controller to the network You can connect the controller to the network via a service cable and the serial service interface or via WLAN with the IF-ServiceApp. -
Page 14: Checking And Setting Network Parameters
Initial operation 5. Start communication with Open 6. Log in with username fieldservice 7. Specify a password Details on valid password requirements and how to change a password can be found under Users and passwords. Only after entering a password are the network services started and the network connection can be established. - Page 15 Initial operation To save new data, you must confirm the Write to EEPROM (y/n)? prompt by entering y for yes. Modified data only becomes effective after a restart, e.g. after a cold boot. SSH connections must be properly terminated after configuration. Setting the network parameters Via the netpar -x command, you can retrieve a list of the current network parameters (e.g.
-
Page 16: Configuring The Interfaces And The Booking Memory
Initial operation Perform a factory reset. Further information can be found in the section Restarting the controller [} 18]. 5.3 Configuring the interfaces and the booking memory Via the command oc -h, you can change interface settings adjust the size of the booking memory Press the Enter key to confirm values that you do not wish to change. -
Page 17: Listing The Configuration Data Of Readers
Initial operation 5.4 Listing the configuration data of readers The cfg command lists the configuration data of readers. fieldservice@IF xxxx:~ cfg Terminal configuration IF xxxx/4735 IT-2018.02.0-794-g91e557d6d26e Host: Ethernet ---------------------------------------------------------------- No B A HA TNo type HWU SWU display keys read.1 read.2 In/Out I/O -- - - -- --------- ------- ----- ----- ------- ------ ------ -- 1 1 A 1 0 IF611 3.00 7.b ../.. -
Page 18: Restarting The Controller
Initial operation 5.5 Restarting the controller Some changes require a restart of the controller. You can do this directly on the controller or with the appropriate commands via the console. Warm boot A warm boot performs the following actions: Close application Restart application Associated console command: oc -s or factory-reset application-restart Reboot... - Page 19 Initial operation 3. Wait until the RUN LED lights up again permanently (procedure can take up to 45 seconds) 4. Reset switch position: Associated console command: oc -c or factory-reset application Reset network settings to factory default The network settings are reset. 1.
-
Page 20: Updating The Software
Updating the software 6 Updating the software There are two ways to update the controller software: Via the IF-6040 system (version 8.3 or higher) Via the PuTTY program package using batch files Preparation To update the software on the controller via batch files, the current version of the PuTTY program package must be installed on the service PC. -
Page 21: Upgrading The Controller
Upgrading the controller 7 Upgrading the controller The functional scope of a controller depends on the purchased license. You can extend (upgrade) this license, if necessary. Example: Upgrading an IF-4070 controller with 8 terminals to a controller with 16 terminals After ordering an upgrade, you will receive two files from Interflex: Batch file s_tclicence.bat License file *.xml... -
Page 22: Disposal
Disposal Weight Approx. 0.3kg Housing material PC, UL 94-0 Installation type EN60715 TH35 mounting rails (size 9 modules) Connections Nominal voltage 18 – 24 V AC/DC Operating status indicators 7 LEDs on front panel Bus data cable RJ45 sockets or screw terminals for cables up to 0.5 mm² Power supply via Ethernet PoE IEE 802.3at of power class 4 (up to 25.4 W) Ambient temperature... - Page 23 The original manual is in German. Other languages are translations of the original manual. Version: 10.21 Interflex Datensysteme GmbH +49 711 1322 - 0 Zettachring 16 interflex.info@allegion.com 70567 Stuttgart, Germany www.interflex.de...
