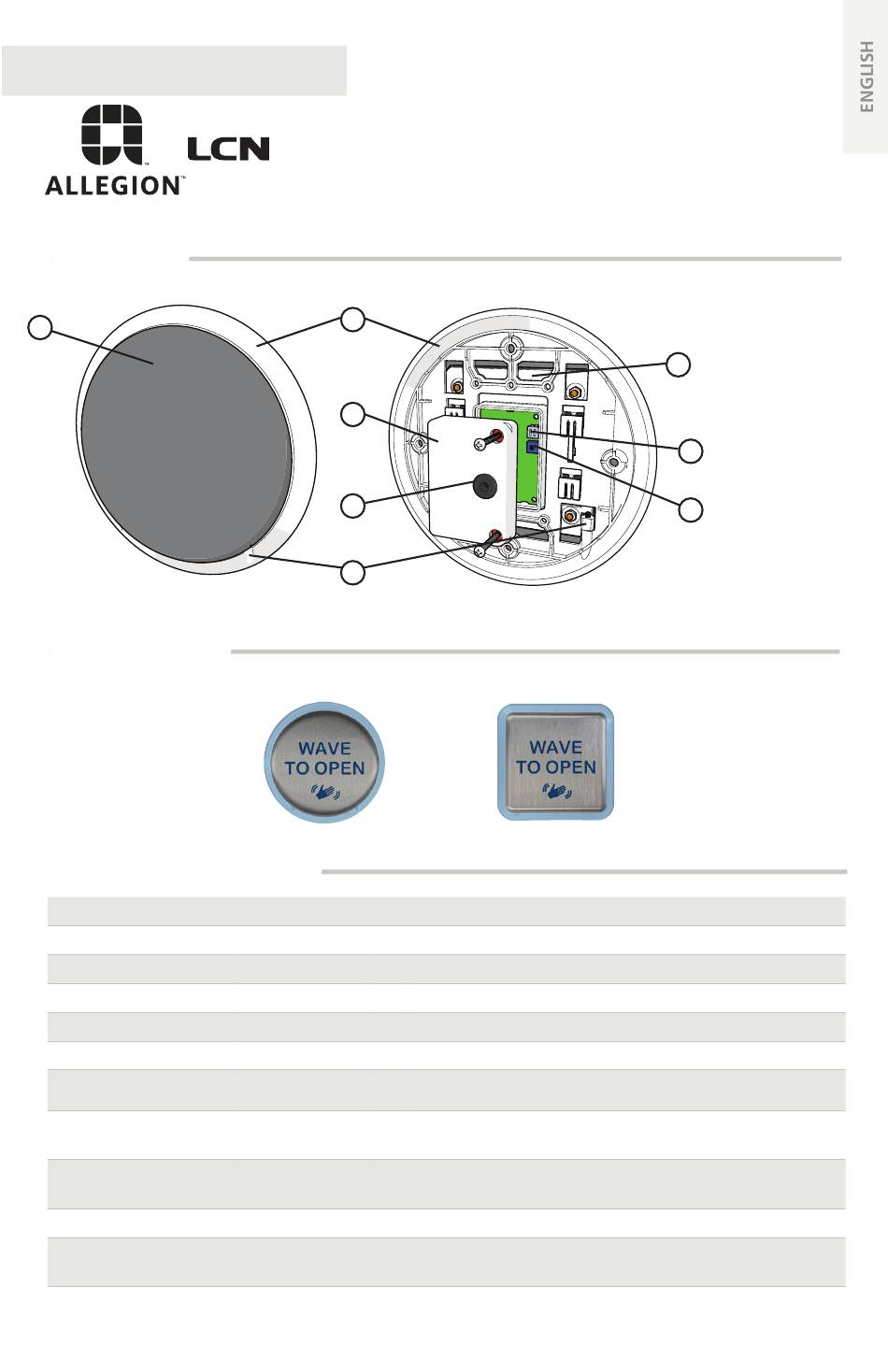

DESCRIPTION
1
PRODUCT FAMILY
TECHNICAL SPECIFICATIONS
Technology
Detection Mode
Supply Voltage
Current Consumption
Temperature Range
Enclosure Rating
Sensing Zone
Relay
Dimensions (0verall)
Wire Harness Length
Material
75.0022.01 ALLEGION 8310-816 TOUCHLESS ACTUATORS 20200612
8310-816 TOUCHLESS ACTUATORS
2
5
6
3

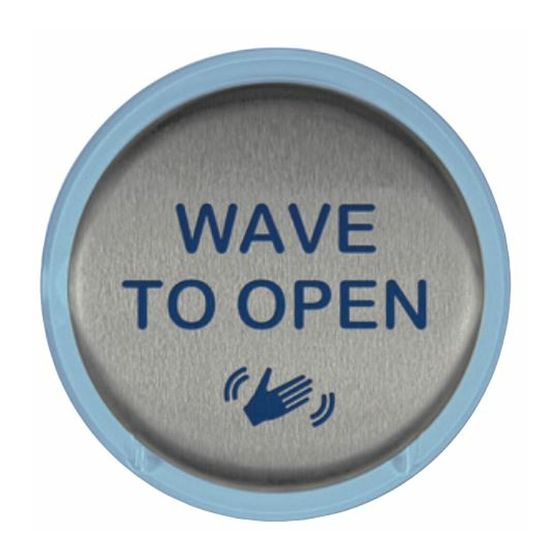

6" ROUND
8310-816R
capacitive sensing
proximity
12 – 24 VAC/VDC
37 mA (typical)
-20 – 120 °F
NEMA 4
0 – 4"
Sensing Zone is dependent upon size (area) of object, orientation of object, speed of
1-Form A Solid State Relay
0.4A 60 VAC/VDC (max)
6" Round:
7" (diameter) × 0.5" (D)
4.75" Square:
5.75" (H) × 5.75" (W) × 0.5" (D)
6 inches (5-conductor)
stainless steel (faceplate)
clear polycarbonate (mounting ring, backplate, enclosure)
Hardwired, Stainless Steel, Touchless,
4.75" SQUARE
8310-816S
A 5-conductor wire is needed between the sensor and the door control.
Specifications are subject to change without prior notice.
All values measured in specific conditions.
Activation Sensor
1. faceplate
2. mounting holes
3. set screws
4
4. backplate
5. NEMA 4 enclosure
6. wire harness
7. DIP-switches
7
8. potentiometer
8
object, and environmental conditions.
Page 1 of 8
Advertisement
Table of Contents
Related Manuals for Allegion 8310816
Summary of Contents for Allegion 8310816
- Page 1 A 5-conductor wire is needed between the sensor and the door control. Material stainless steel (faceplate) clear polycarbonate (mounting ring, backplate, enclosure) Specifications are subject to change without prior notice. All values measured in specific conditions. 75.0022.01 ALLEGION 8310-816 TOUCHLESS ACTUATORS 20200612 Page 1 of 8...
- Page 2 8. Mount (i.e. hand-tighten) the mounting ring to both the electrical box and the wall. 9. Remove the back of the NEMA 4 enclosure. 10. Sections 2 (WIRING) and 3 (SETTINGS & ADJUSTMENTS) must be completed prior to continuing installation (Section 4). Page 2 of 8 75.0022.01 ALLEGION 8310-816 TOUCHLESS ACTUATORS 20200612...
- Page 3 ACT COM Green ACT NO Yellow empty Earth Ground Green / Yellow Earth Ground White White Green Green To 8310-816 (5-wire side) AC/DC AC/DC Black Black Earth Ground Blue Blue 75.0022.01 ALLEGION 8310-816 TOUCHLESS ACTUATORS 20200612 Page 3 of 8...
- Page 4 If stationary object remains within sensing zone for more TRACKING than 5 seconds, a new capacitive zone will be learned and normal operation will resume (e.g. chewing gum stuck to faceplate). Page 4 of 8 75.0022.01 ALLEGION 8310-816 TOUCHLESS ACTUATORS 20200612...
- Page 5 – examples of these safety inspections can be found on an AAADM safety information label (e.g. ANSI/DASMA 102, ANSI/DASMA 107). Verify that all appropriate industry signage and warning labels are in place. 75.0022.01 ALLEGION 8310-816 TOUCHLESS ACTUATORS 20200612 Page 5 of 8...
- Page 6 Page 6 of 8 75.0022.01 ALLEGION 8310-816 TOUCHLESS ACTUATORS 20200612 75.0022.01 ALLEGION 8310-816 TOUCHLESS ACTUATORS 20200612 Page 7 of 8...
- Page 7 Do not leave problems unresolved. If a satisfactory solution cannot be achieved after troubleshooting a problem, please contact Allegion at 1-877-671-7011. If you must wait for the following workday to call Allegion, leave the door inoperable until satisfactory repairs can be made. Never sacrifice the safe operation of the automatic door or gate for an incomplete solution.
