- Page 1 SmartCD2.G2 Manual 29.08.2020...
-
Page 2: Table Of Contents
Contents SmartCD2.G2 (Manual) 2 / 20 Contents Intended use .............................. 3 General safety instructions........................ 4 Product-specific safety instructions.................... 6 Unpacking.............................. 7 Connecting .............................. 8 Recharging .............................. 9 Getting started............................ 10 Configuring the Bluetooth connection.................... 11 Programme .............................. 12 Programming with a PC or laptop ...................... 12 Programming with a Windows notebook/tablet................ 12 Programming with smartphone/tablet (Android/iOS) ............... 12 Align the antenna............................ 13... -
Page 3: Intended Use

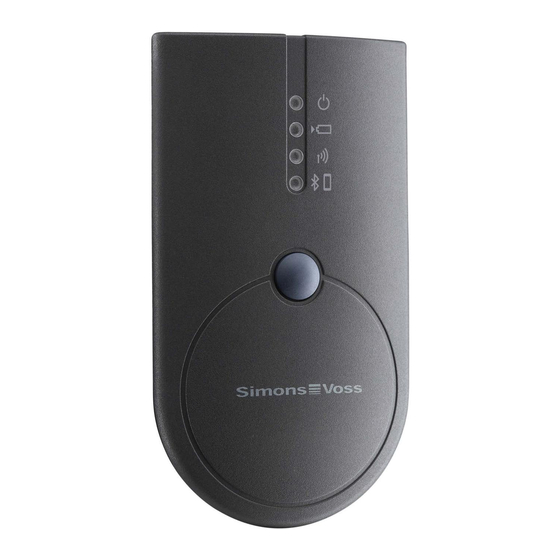

1. Intended use SmartCD2.G2 (Manual) 3 / 20 1 Intended use The SmartCD2.G2 is a programming device that has been specially developed for running on a PC/tablet/laptop or for coupling with a smartphone. It is a very convenient way for you to programme and read all digital components in SimonsVoss System 3060 (locking cylinders, transponders, SmartHandles and SmartRelays). -
Page 4: General Safety Instructions
2. General safety instructions SmartCD2.G2 (Manual) 4 / 20 2 General safety instructions Signal word (ANSI Possible immediate effects of non-compliance Z535.6) DANGER Death or serious injury (likely) WARNING Death or serious injury (possible, but unlikely) CAUTION Minor injury IMPORTANT Property damage or malfunction NOTE Low or none... - Page 5 2. General safety instructions SmartCD2.G2 (Manual) 5 / 20 Damage as a result of mechanical impact This product contains electronic components that may be damaged by mechanical impacts of any kind. 1. Avoid touching the electronics. 2. Avoid other mechanical influences on the electronics. Damage due to polarity reversal This product contains electronic components that may be damaged by reverse polarity of the power source.
-
Page 6: Product-Specific Safety Instructions
3. Product-specific safety instructions SmartCD2.G2 (Manual) 6 / 20 3 Product-specific safety instructions WARNING Dangers from built-in lithium batteries The programming device contains lithium batteries. Lithium batteries are dangerous if not handled properly. 1. Do not open the programming device. SimonsVoss can replace used batteries (subject to a charge). -
Page 7: Unpacking
4. Unpacking SmartCD2.G2 (Manual) 7 / 20 4 Unpacking Scope of delivery SmartCD2.G2 programming device, (including permanently built-in batteries) Cable to connect to a USB port Quick guide You need the LSM software to operate the SmartCD2.G2. For mobile programming on site, the LSM Mobile software or app must also be installed on the mobile device. -
Page 8: Connecting
5. Connecting SmartCD2.G2 (Manual) 8 / 20 5 Connecting SmartCD2.G2 can be directly connected to a PC or laptop by plugging the supplied cable into an unassigned USB port. All digital locking devices and all active transponder media in SimonsVoss System 3060 can be programmed using a SmartCD2.G2 in conjunction with a PC/laptop. -
Page 9: Recharging
6. Recharging SmartCD2.G2 (Manual) 9 / 20 6 Recharging Connect the SmartCD2.G2 to a USB port (PC/laptop/power bank or similar) using a USB cable. The SmartCD2.G2 batteries are then charged via the USB port. NOTE USB connections are in standby or switched off On your PC or laptop, the USB ports may be turned off in standby or off mode. -
Page 10: Getting Started
7. Getting started SmartCD2.G2 (Manual) 10 / 20 7 Getting started 1. Install the LSM software. Required drivers are installed automatically. 2. Connect the programming device to a USB port (see Connecting [ 8] The programming device is ready for use. If you want to use the programming device with a smartphone, follow the instructions in the app or the manual for the app. -
Page 11: Configuring The Bluetooth Connection
8. Configuring the Bluetooth connection SmartCD2.G2 (Manual) 11 / 20 8 Configuring the Bluetooth connection ü The smartphone is switched on and visible to other Bluetooth devices. The programming device is loaded and switched on. ü The smartphone and programming device are in close proximity to each ü... -
Page 12: Programme
9. Programme SmartCD2.G2 (Manual) 12 / 20 9 Programme During programming, there should a minimum gap of around 10 cm between SmartCD and the locking device; for SmartRelay it should be around 30 cm and 70 cm for the block lock. 9.1 Programming with a PC or laptop Current version of the LSM software installed. -
Page 13: Align The Antenna
10. Align the antenna SmartCD2.G2 (Manual) 13 / 20 10 Align the antenna To ensure trouble-free programming, the antenna alignment of selected components is shown below. You can achieve the greatest possible read range for programming if the SmartCD2.G2 and locking device antennas are positioned in parallel to one another. -
Page 14: Replacing The Batteries
11. Replacing the batteries SmartCD2.G2 (Manual) 14 / 20 11 Replacing the batteries Contact your retail specialist if you should need to replace batteries. The retailer can then have batteries replaced by SimonsVoss Technologies GmbH for a fee. NOTE Do not try to replace the batteries yourself under any circumstances. -
Page 15: Signalling
12. Signalling SmartCD2.G2 (Manual) 15 / 20 12 Signalling Programming device LED 1 lights up green. ready for operation. Programming unit in LED 1 flashes green. standby mode. The first LED lights up when connected via USB on the PC/laptop or without USB connection only after the SmartCD2.G2 has been switched on by pressing the button. -
Page 16: Technical Specifications
13. Technical specifications SmartCD2.G2 (Manual) 16 / 20 13 Technical specifications Housing dimensions H x W x D: 112 x 63 x 22 mm Weight (including batteries): 95 g Housing material: Composite Housing colour: Grey Number of LEDs: Li-ion manganese batteries (per- Battery type manently built-in) USB port... - Page 17 13. Technical specifications SmartCD2.G2 (Manual) 17 / 20 SPP (Serial Port Profile), serial data Supported profiles: transmission Radio emissions 25 kHz (f >10 kHz, -28.5 dBµA/m (10 m <40 kHz) distance) 2402 MHz - 2480 MHz 0 dBm There are no geographical restrictions within the EU.
-
Page 18: Declaration Of Conformity
14. Declaration of conformity SmartCD2.G2 (Manual) 18 / 20 14 Declaration of conformity The company SimonsVoss Technologies GmbH hereby declares that article SMARTCD2.G2 complies with the following guidelines: 2014/53/EU "Radio equipment" 2014/30/EU "EMC" 2011/65/EU "RoHS" with 2015/863 and 2017/2102 ... -
Page 19: Help And Other Information
+49 (0)89 99 228 333 (German fixed network; call charges vary depending on the operator). Email You may prefer to send us an email. support-simonsvoss@allegion.com (System 3060, MobileKey) FAQs You will find information and help for SimonsVoss products in the FAQ https://faq.simons-voss.com/otrs/ section on the SimonsVoss website ( public.pl... - Page 20 Unterföhring, near Munich, and its production site in Osterfeld, eastern Germany, the company employs around 300 staff in eight countries. SimonsVoss is a company in the ALLEGION Group, a globally active network in the security sector. Allegion is represented in around 130 countries worldwide (www.allegion.com).
