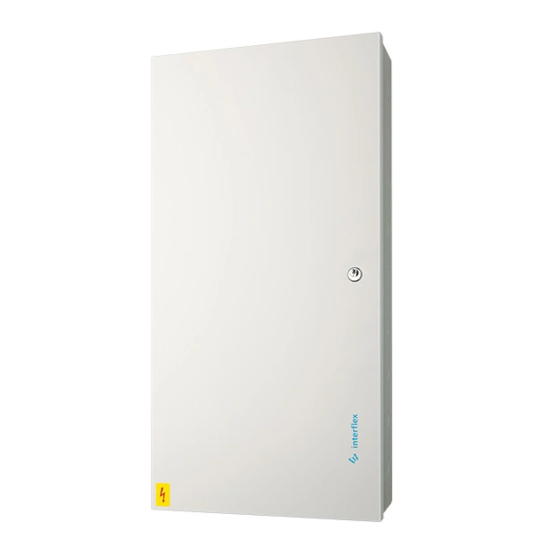

- Page 1 Controller IF-4077-8 Access Manager 00-4077-08xx...
-
Page 2: Table Of Contents
Table of contents General information......................Short description....................... Scope of delivery ...................... Target group ......................Intended use ......................Safety........................Abbreviations ......................Cable lengths and cable types.................. System overview........................IF-4072 controller overview ..................I/O controller board ....................Installing the access manager.................... Connecting the access manager..................10 Cable routing ...................... - Page 3 Upgrading the controller ..................... 23 Disposal ..........................24 Declarations of conformity ....................24 EU Declaration of Conformity ................... 24 UK Declaration of Conformity ................... 24 © 2022 Interflex Datensysteme GmbH | IF-4077-8 Access Manager | 06.22...
-
Page 4: General Information
1 General information 1 General information 1.1 Short description The IF-4077-8 access manager includes the following functions: Operation in conjunction with a host system for access control or time recording (e.g., IF-6020 or IF-6040) Connection and control of up to 8 terminals via integrated door manager and 8 terminals via I/O controller boards Recording of bookings (IN, OUT, absences, access) Access control including door control and monitoring... -
Page 5: Intended Use
1 General information 1.4 Intended use The access manager is designed to control the connected components and to transfer the recorded data to the access control system in accordance with the specifications in section Technical specifications Any other use is not in accordance with the intended purpose and therefore not permitted. Modifications to the device are not permitted. -
Page 6: Cable Lengths And Cable Types
1 General information Electromagnetic Compatibility Electrostatic discharge Ground IEEE Institute of Electrical and Electronics Engineers NC contact Normally closed contact NO contact Normally open contact Power over Ethernet RFID Radio-Frequency Identification Shield Secure shell 1.7 Cable lengths and cable types Cable function Max. -
Page 7: System Overview
2 System overview 2 System overview 2.1 IF-4072 controller overview Connections 4-pin screw terminal for relay contacts 4-pin screw terminal for relay contacts 8-pin screw terminal for floating status 6-pin screw terminal for power supply contacts RJ45 socket for the connection to the 10-pin for RS485 Ethernet network (host system) bus data cables 1 2 3... - Page 8 2 System overview LEDs, push-buttons and switches Description Function Factory reset: Save IP address settings temporarily and set default IP address to 172.18.70.52. Delete stored data, restore standard parameters Cancel active processes, trigger restart Status Operating mode of the controller Lights up Application has been started;...
-
Page 9: I/O Controller Board
3 Installing the access manager 2.2 I/O controller board Connection of status contacts and door Address switch switches/openers Connection of terminal Connection of power supply and RS485 interface Strap 4: Jumper must be set Strap 1: Setting NO/NC 3 Installing the access manager NOTICE Damage to property due to manipulation of the access manager Manipulation of the access manager can lead to data loss. -
Page 10: Connecting The Access Manager
4 Connecting the access manager 4 Connecting the access manager 4.1 Cable routing NOTICE Property damage due to improper cable routing Improper connection of the access manager may result in damage to the device. a) Bundle the cables before feeding them to the device b) Ground the shields of the cables with the shield connection terminals c) Secure the cables using the shield connection terminals d) Connect the cables and cable shields according to the specifications in this documentation... -
Page 11: Wiring Components
4 Connecting the access manager 4.2 Wiring components The cables can be fixed to the cutouts in the bottom plate of the housing with cable ties. Ethernet network The controller is set up for connection to 10/100 Mb/s Ethernet networks. Connection and speed are indicated by LEDs on the front panel LEDs and switches. - Page 12 4 Connecting the access manager Floating status contacts and relays Relays 230 V Status contacts IN 1 IN 2 IN 3 IN 4 An NO or an NC contact can be used for switching devices up to 30 V, 2 A. Outgoing cables can be looped at the PAT terminals.
-
Page 13: Connecting The Controller
4 Connecting the access manager 4.3 Connecting the controller Connect the power supply NOTICE Malfunction due to improper electrical installation Improper electrical installation can lead to malfunctions in operation and equipment failures. Therefore, please note the following: Use shielded cables Cable lengths and cable types [} 6] Ground the shields on the devices and cables Provide power to actuators (e.g., door openers) separately from terminals/controllers... - Page 14 4 Connecting the access manager I/O controller board connections Relays 230 V Status contacts IN 2 Bus 1 / 2 / IN 2 IN 1 IN 1 - Tx Terminals Terminal - Tx - Tx Com+ Ö Com- Com+ Com- The IDC modules require an appropriate punch-down tool for connecting the cables.
-
Page 15: Initial Operation
5 Initial operation Setting the Device Address Make sure that the address setting on terminals with address switches and the address of the connected I/O controller board match. The address switches are factory preset as follows: I/O controller board Address Switches Address 1 OFF*... -
Page 16: Connecting The Controller To The Network
5 Initial operation Service interface IF-5xxx terminal 75-99-0006 Service cable 5xxx 5.1 Connecting the controller to the network You can connect the controller to the network via a service cable and the serial service interface or via WLAN with the IF-ServiceApp. IF-ServiceApp Prerequisites ü... -
Page 17: Checking And Setting Network Parameters
5 Initial operation Details on valid password requirements and how to change a password can be found underUsers and passwords. Only after entering a password are the network services started and the network connection can be established. Establish network connection After the power supply has been switched on, the component executes the following actions: Boot the operating system Start applications... - Page 18 5 Initial operation Setting the network parameters Via the netpar -x command, you can retrieve information on the current network parameters (e.g. the IP address and port), which you can then change. When assigning the IP address and setting up the network, observe the current state-of-the- art technology for securing and segmenting corporate networks.
-
Page 19: Configuring The Interfaces And The Booking Memory
5 Initial operation Perform a factory reset. Further information can be found in the section Restarting the controller [} 21]. 5.3 Configuring the interfaces and the booking memory Via the command oc -h, you can change interface settings adjust the size of the booking memory Press the Enter key to confirm values that you do not wish to change. -
Page 20: Listing The Configuration Data Of Terminals
5 Initial operation 5.4 Listing the configuration data of terminals The cfg command lists the configuration data of terminals. fieldservice@IF xxxx:~ cfg Terminal configuration IF xxxx/4735 IT-2018.02.0-794-g91e557d6d26e Host: Ethernet ---------------------------------------------------------------- No B A HA TNo type HWU SWU display keys read.1 read.2 In/Out I/O -- - - -- --------- ------- ----- ----- ------- ------ ------ -- 1 1 A 1 0 IF611 3.00 7.b ../.. -
Page 21: Restarting The Controller
5 Initial operation 5.5 Restarting the controller Some changes require a restart of the controller. You can do this directly on the controller or with the appropriate commands via the console. Warm boot A warm boot performs the following actions: Close application Restart application Associated console command: oc -s or factory-reset application-restart... - Page 22 5 Initial operation 3. Wait until the RUN LED lights up again permanently (procedure can take up to 45 seconds) 4. Reset switch position: Associated console command: oc -c oder factory-reset application Reset network settings to factory default The network settings are reset. 1.
-
Page 23: Updating The Software
6 Updating the software 6 Updating the software There are two ways to update the controller software: Via the IF-6040 system (version 8.3 or higher) Via the PuTTY program package using batch files Preparation To update the software on the controller via batch files, the current version of the Putty program package must be installed on the service PC. - Page 24 The original manual is in German. Other languages are translations of the original manual. Version: 06.22 Interflex Datensysteme GmbH +49 711 1322 - 0 Epplestraße 225 (Haus 3) interflex.info@allegion.com 70567 Stuttgart, Germany www.interflex.com © 2022 Interflex Datensysteme GmbH | All specifications are subject to change without notice.
