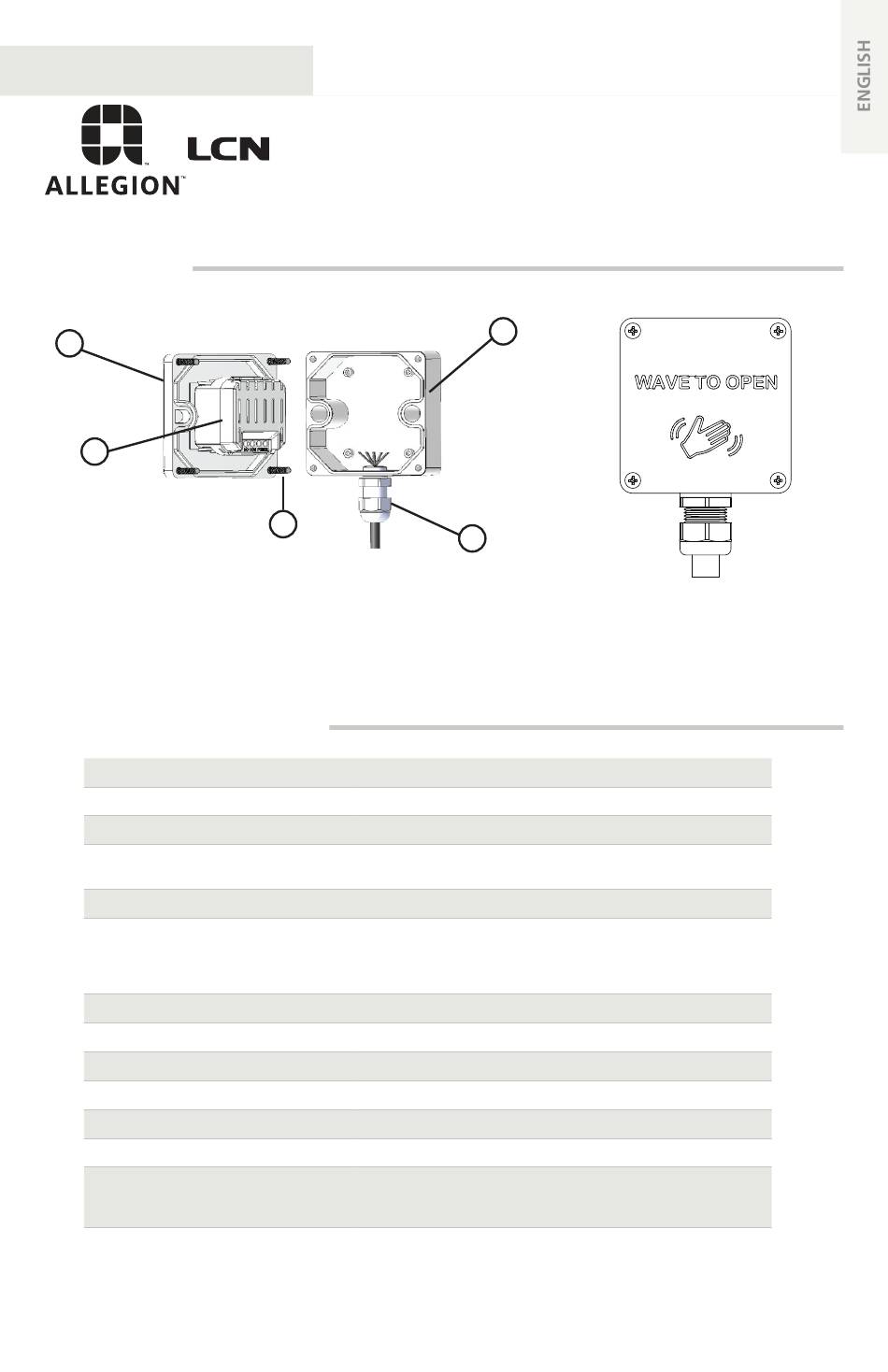

DESCRIPTION
1
2
1. Faceplace
2. Microwave motion sensor
3. Connector
4. Housing
5. Screw (x4)
TECHNICAL SPECIFICATIONS
Technology:
Radiated frequency:
Radiated power density:
Supply voltage:
Power consumption:
Output
relay contact rating (max. voltage):
relay contact rating (max. current):
Max. switching power:
Detection range*:
Detection mode:
Output hold time:
Temperature range:
Material:
Enclosure rating:
Certification:
* Detection range is dependent upon object size, object orientation, object speed, and environmental conditions.
75.0021.01 ALLEGION 8310-815 TOUCHLESS ACTUATOR 20200612
8310-815 TOUCHELSS ACTUATORS
5
microwave, doppler radar (24.125 GHz)
24.125 GHz
5 mW/cm 2
12 – 24 VAC ±10%
12 – 24 VDC +30% / -10%
< 1.2W
relay with switch-over contact (voltage-free)
60 VDC / 125 VAC
1A (resistive)
30W DC / 60 VAC
4 – 24" (adjustable)
motion (bidirectional)
0.5 sec (in pulse mode)
-4 – 131 °F (-20 – 55 °C)
ASA, PC
NEMA 4
Electromagnetic compatibility (EMC) according to 2004/108/EC
FCC: G9B-MS08
IC: 4680A-MS08
Specifications are subject to change without prior notice.

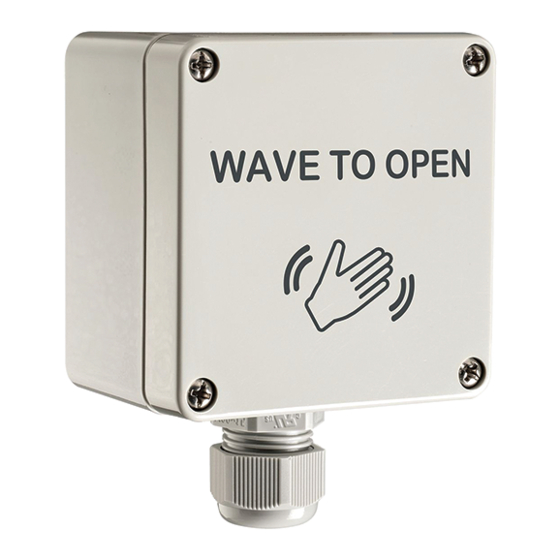

NEMA 4, touchless, activation sensor
4
3
All values measured in specific conditions.
