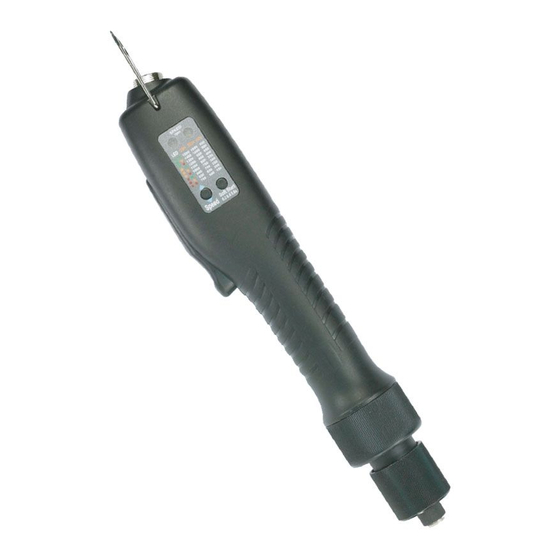

- Page 1 All manuals and user guides at all-guides.com DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE DOGA BRUSHLESS ELECTRIC SCREWDRIVERS GX 30 VOLTS INSTRUCTIONS MANUAL...
- Page 2 All manuals and user guides at all-guides.com DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE...
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE Warning 1. Scheme . 2. Optional products 3. Description . 4. Main features 5. Model composition 6. Models 6.1 Standard 6.2 Soft stop (Shockless 6.3 Timer & Auto reverse 7. -
Page 4: Warning P
All manuals and user guides at all-guides.com DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE WARNING 1. Keep the working area clean. Avoid wearing the harmful clothes to the electric shock. 2. Don't touch the electrical parts after opening the cover. It may be dangerous for the electric shock. -
Page 5: Scheme
All manuals and user guides at all-guides.com DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE 1. Scheme 25W Brushless motor equipped screwdiver with the torque control system by the mechanical clutch working with the spring. the range of torque : 0.5 - 12 Kgf.cm 2. -
Page 6: Timer & Auto Reverse
All manuals and user guides at all-guides.com DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE 5. Model composition - ○○○ ◇ ① ② ③ ④ ① Series : GX ② Operation (Empty) : Standard screwdriver A : Automation - Dir ect signal s tart and clamping flange S : Soft Stop (Shcokless) - lower shock when it stops T : Timer &... -
Page 7: Opération
All manuals and user guides at all-guides.com DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE 7. Operation 7.1 Standard Driver 1) Start, Stop and Direction - Auto stop immediately at the target torque in both direction (FOR-REV) - Free stop when release the lever or pressure (PTS) -
Page 8: Option # Soft Start + Double Hit
All manuals and user guides at all-guides.com DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE 7.2 " + " Option - Soft start + Double hit 1) Front panel - DOUBLE HIT Press the DOUBLE HIT button. It repeat OFF and ON... - Page 9 All manuals and user guides at all-guides.com DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE 7.3 TIMER AND AUTO REVERSE SCREWDRIVER ( GXT Driver ) 1) Start, Stop and Direction One triggering by the lever makes 3 steps sequence in a cycle Step →...
- Page 10 All manuals and user guides at all-guides.com DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE 3) Operating ■ Angle setting for first RUN first Run ① Keep the button pressed over 2 sec. For angle setting. Then press one by one for the desired rotating angle.
- Page 11 All manuals and user guides at all-guides.com DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE Rotating speed setting ■ first Run stop time ① Keep the both & buttons pressed over 2 sec. for unlock. Then click one by one for the desired rotating speed.
- Page 12 All manuals and user guides at all-guides.com DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE 4) Applications ■ Time setting example - Driver speed : 1,000 rpm ( GXT80 ) - Screw : 20 thread with 1mm pitch Applications upon the different settings...
- Page 13 All manuals and user guides at all-guides.com DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE 7.4 SOFT STOP SCREWDRIVER ( GXS Driver ) Soft Stop screwdriver has special designed clutch with the bearing of one way direction rotating. This driver can control the torque for clockwise fastening.
- Page 14 All manuals and user guides at all-guides.com DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE - G-shock is very different according to the joint characteristic, set torque and rotating speed. - Hard joint, higher torque and speed makes much G-shock than Soft joint, lower torque and speed - GXS screwdriver shows approx.
- Page 15 All manuals and user guides at all-guides.com DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE 8. Exploded view 8.1 Drawing for GX Lever start...
- Page 16 All manuals and user guides at all-guides.com DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE 8.2 Drawing For GX Push to start...
- Page 17 All manuals and user guides at all-guides.com DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE 9. Parts List For GX Series Code Part Name Réf. GX80 GX120 GXT80 GXT120 GX80P GX120P GXS80 GXS120 LEVER PUSH PFE1801 ADJUSTER PFE1132 TORQUE SPRING HOLDER ASSY...
- Page 18 All manuals and user guides at all-guides.com DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE PFF1723 BUTTON CAP PFF1824C PFF1719 CONNECTOR LOCK COVER PFF1824 PAL1840 LEVER PIN PFE1841 LEVER SPRING PFF1830 SWITCH LOCK PFF1842A STAND OFF PELZ318 6PIN CONNECTOR N PFF1802...
- Page 19 All manuals and user guides at all-guides.com DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE...
- Page 20 All manuals and user guides at all-guides.com DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE...
