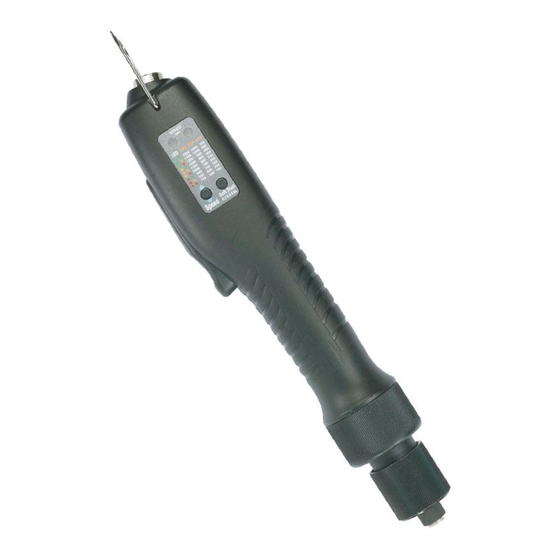

- Page 1 DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE DOGA BRUSHLESS ELECTRIC SCREWDRIVERS GX 30 VOLTS INSTRUCTIONS MANUAL...
- Page 2 DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE...
- Page 3 DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE Warning 1. Scheme 2. Optional products 3. Description 4. Main features 5. Model composition 6. Models 7. Panel of each model 8. Alarm display by LED color 8.1 Speed & Soft start (GX _) 8.2 Speed/Angle control &...
- Page 4 DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE WARNING 1. Keep the working area clean. Avoid wearing the harmful clothes to the electric shock. 2. Don't touch the electrical parts after opening the cover. It may be dangerous for the electric shock.
-
Page 5: Optional Products
DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE 1. Scheme 25W Brushless motor equipped screwdiver with the torque control system by the mechanical clutch working with the spring. The range of torque: 0.2 – 12 Kgf.cm 2. Optional products 1) Soft stop, ESD and Clean room operation --->... - Page 6 DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE 5. Model composition ○○○ ◇ ① ② ③ ④ ① Series: GX ② Operation (Empty) : Standard screwdriver A: Automation - Direct signal start and clamping flange S: Soft Stop (Shockless) - lower shock when it stops T: Timer &...
- Page 7 DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE * Features definition: - Standard = Speed Control + Soft Start (soft start not available on GX35 & GX45 and GXA models) - T = Speed & Angle Control + Auto Reverse 7. Panel of each model - Standard (Speed &...
- Page 8 DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE . Settings 8.1 Speed & Soft Start (GX___) Speed Selection: 1) Press the Speed button for 2 seconds to visit to PROGRAM mode. Then the two LED lights will display colours depending on the set speed.
- Page 9 DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE 8.2 Speed / Angle Control & Auto Reverse (GXT___) Model: GXT 80, GXT 120 One triggering by the lever can make 3 steps operation sequence in a cycle ■ Start, Stop and Direction in a cycle →...
- Page 10 DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE ■ Operating (Work) mode ① Rotating direction (FOR-REV) ■ PROGRAM mode ① First run angle (Increase / Decrease) together with "First Run(Speed)" button ② Time (Increase / Decrease) together with "Stop(Reverse)" button ③ Rotation speed (Increase / Decrease) together with "Speed(First Run)" button ④...
- Page 11 DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE ■ Time setting for stop HOLD ① Keep the stop time button pressed over 2 sec. Then click the stop time button one by one for desired stop holding time ② Select the R position of F/R switch for increasing set time or F position for decreasing set time ③...
- Page 12 DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE ■ Angle setting for Reverse RUN ① Keep both first Run & stop time buttons pressed over 2 sec. to unlock. Then click stop time button one by one for the desired angle ②...
- Page 13 DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE ■ Application Example First RUN Stop HOLD Auto Reverse Applications with different sequence in Angle Time Angle a cycle Normal Normal screwdriver screwdriver It stops at the set torque Angle control ON(1) It stops at set angle(1)
- Page 14 DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE 9. Exploded view 9.1 Drawing for GX Lever start...
- Page 15 DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE 9.2 Drawing For GX Push to start...
- Page 16 DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE 10. Parts list for GX Series...
- Page 17 DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE...
- Page 18 DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE Red colors show the newly replaced parts. 2) SENSOR ASSY(PFFZ511A, PFFZ512A) works with SLEEVE ASSY(PFF1123) ( Before serial no. 7117001 ) SENSOR ASSY(3000036,3000037) works with SLEEVE ASSY(3000030) - From serial no 1002060031. If it is push to start type of screwdriver, replace MAGNET HOLDER ASSY(3000043), too.
- Page 19 DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE Torque Springs Curves GX 080 GX 120 Changing springs: 1 – Loosen completely the torque adjusting ring. 2 – Take off the torque spring you do not want to used anymore. 3 – Put in the torque spring you want to use.
- Page 20 DOGA BRUSHLESS ELECTRIC SCREWDRIVERS / GX SERIE...
