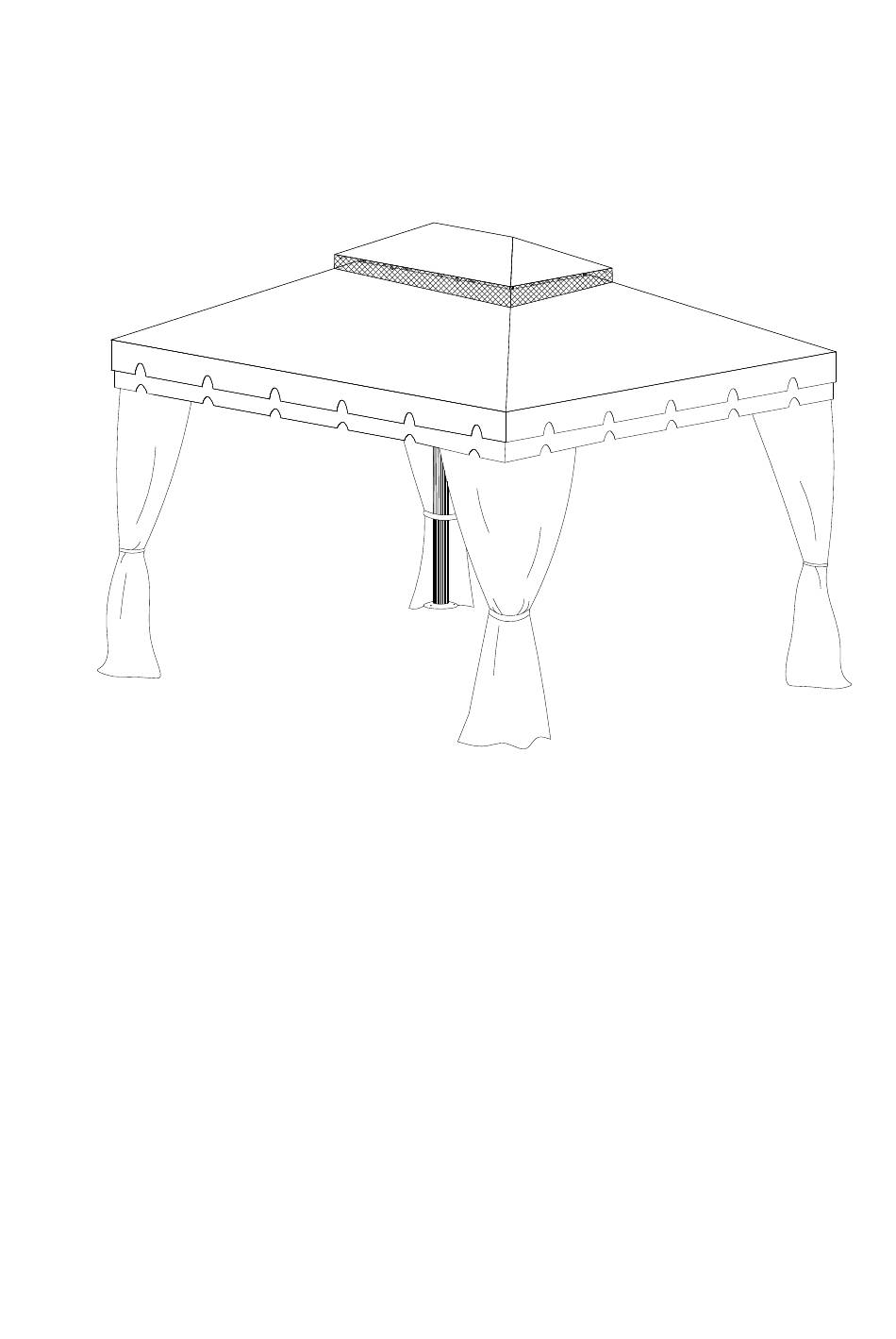

Assembly Instructions

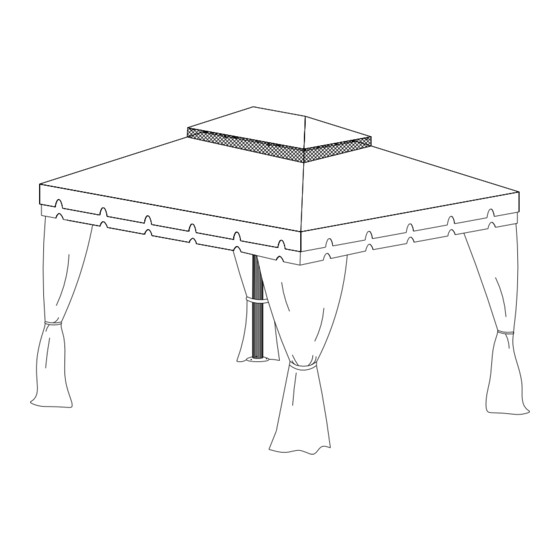

10'X12' Aluminum Gazebo
Item# L-GZ106PAL-1
Our clear, easy to follow, step by step instructions will guide you through the project
from start to finish. Feel confident that this will be a fun and rewarding project. The
final product will be a quality piece that will go together smoothly and give years of
enjoyment.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunjoy L-GZ106PAL-1
Summary of Contents for Sunjoy L-GZ106PAL-1
- Page 1 Assembly Instructions 10’X12’ Aluminum Gazebo Item# L-GZ106PAL-1 Our clear, easy to follow, step by step instructions will guide you through the project from start to finish. Feel confident that this will be a fun and rewarding project. The final product will be a quality piece that will go together smoothly and give years of...
-
Page 2: Item Identification
Item Identification For ease of identification all parts are labeled to correspond to the Step number in which the part is used. A hammer and a ladder (more than 2m) are needed. -
Page 3: Parts List
Parts List Long Left Beam Long Right Beam Short Left Beam Short Right Beam Reinforcement Slat Corner Connector Canopy Spoke Combination Lower Beam Connector Upper Beam Connector Large Fabric Cover Small Fabric Cover Pillar Supporting Pole on Pillar (Preassembled) Foot Cap Sun Panel Netting Plastic Hook... - Page 4 Step1 ①Insert Long Right Beam(1B) into Long Left Beam(1A), and fix with Bolt M6X15(AA)， Flat Washer （BB） Flat . Insert Short Right Beam (1D) into Short Left Beam (1C) and fix with Bolt M6X15 (AA)， Washer（BB） (Figure 1& figure 2) ②Fix Long Right Beam(1B) and Short Left Beam(1C) with Corner Connector(1F) by using Bolt M6X15(AA) and Flat Washer(BB).
- Page 5 Step2 ①Open Canopy Spoke Combination(2A) and make sure the short tubes are on top. Insert Canopy Spoke Combination (2A) into Lower Beam Connector (2B) and Upper Beam Connector (2C) respectively. (Figure 5) ②Insert sway rod of Canopy Spoke Combination(2A) into Corner Connector(1F), and then fix Canopy Spoke Combination(2A) and Long Left Beam(1A) with Bolt M6X15(AA)，Flat Washer(BB).
- Page 6 Step3 ①Attach Foot Cap(3B) to Pillar(3A) with Bolt M6X15(AA) ，Flat Washer(BB). (Figure10) ②Attach Pillar(3A) to the assembled roof frame by using Bolt M6X50 (CC) and Flat Washer(BB). (Figure11) ③Attach the Supporting Pole (3A1) to the beams with Bolt M6X15(AA) ，Flat Washer(BB). (Figure 12) ④Pound Peg (GG) into ground.
-
Page 7: Care And Maintenance
WARNING 1. When assembling and using this product, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. Please read all instructions before assembly and use. 2. Some parts may contain sharp edges, wear protective gloves if necessary. At least two or more people are recommended for safe assembly.
