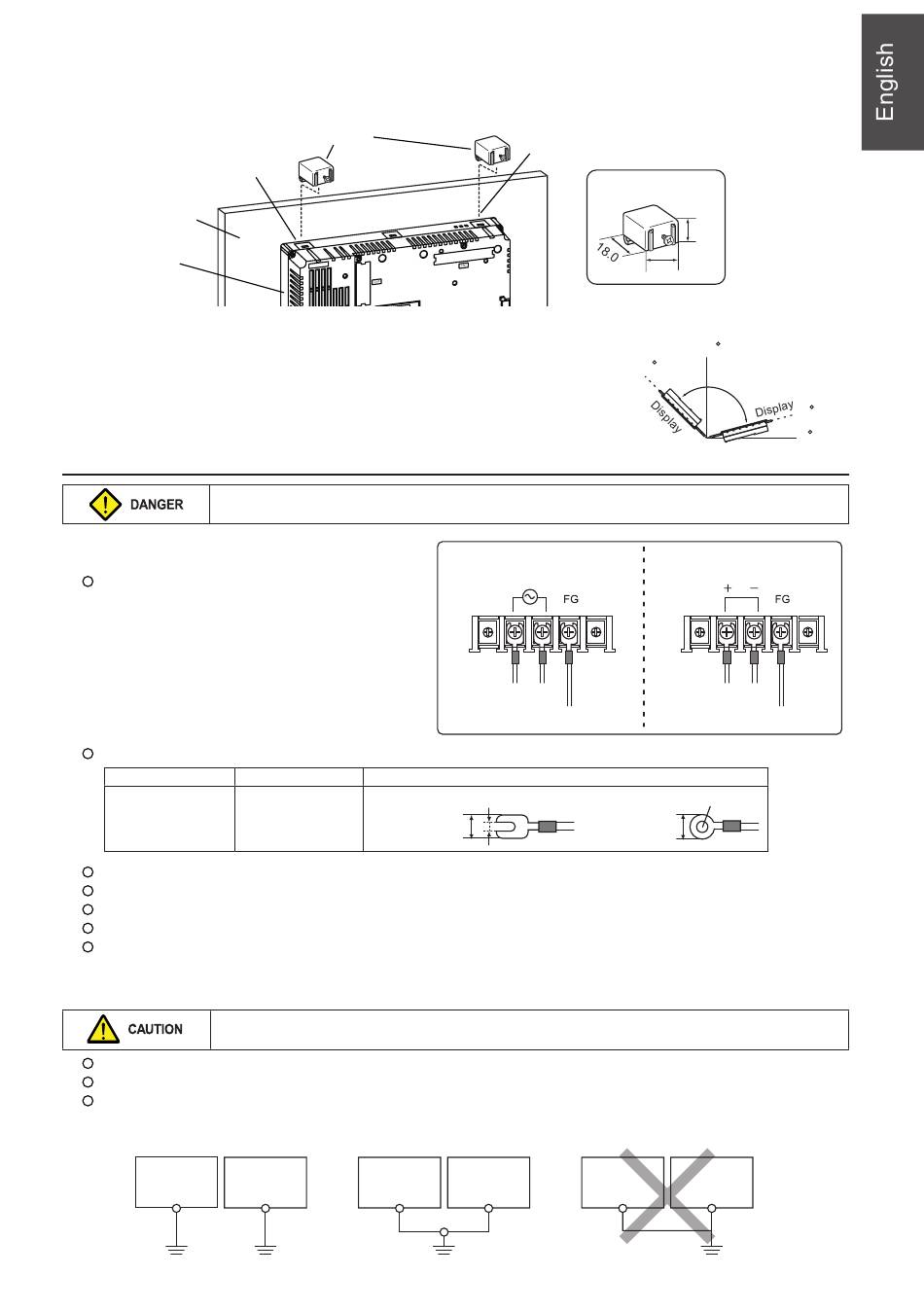

2. Insert four fixtures attached to the V8+ unit into the mounting holes, and tighten them with the locking screws.
(Tightening torque: 0.5 to 0.7 N·m)
*
When the V8+ unit is attached to the mounting panel, the fixtures and frame grounds (FG) are connected.
To prevent static electricity, be sure to connect the mounting panel to the ground.
Mounting hole
Mounting panel
V8+ unit
3. Mount the gasket so that it will be sandwiched securely between the unit and the mounting panel.
Mounting Angle
The V8+ shall be installed within the angle of 15 to 135 degrees.
Electrical Wiring and Grounding
Electric shock hazard
Shut the power off before connecting the power supply cable.
Power Supply Cable Connection
Connect the power supply cable to the terminal
on the backside of the unit.
When connecting the power supply cable, tighten the terminal screws to the following torque.
Screw Size
M3.5
The power source must be within the allowable voltage fluctuation.
Use a power source with low noise between the cables or between the ground and the cable.
Use as thick a power supply cable as possible to minimize drop in voltage.
Keep power supply cables away from high-voltage, large-current carrying cables.
Be sure to attach the terminal cover to the terminal block.
Grounding
Be sure to establish a ground of AnyTouch.
(The level of grounding resistance should be less than 100Ω.)
An independent earth pole must be used for AnyTouch.
Use a cable which has a nominal cross section of more than 2 mm
Set the grounding point near AnyTouch to shorten the distance of grounding cables.
Independent grounding (best)
V8+ unit
equipment
Grounding resistance:
less than 100Ω
Fixtures
Tightening Torque
7.1 inch-lbf
(0.8 N·m)
8.0 or less
Shared grounding (good)
Other
V8+ unit
Grounding resistance:
less than 100Ω
V812+ OPERATING INSTRUCTIONS
Mounting hole
Fixture dimensions
135
Type: 100 - 240 VAC
L
N
Power supply
100 - 240 VAC
Grounding
± 10%
Crimp-style Terminal (Unit: mm)
3.7
8.0 or less
2
for grounding.
Cross grounding (prohibited)
Other
V8+ unit
equipment
7
(Unit: mm)
10.5
17.8
90
15
0
Type: 24 VDC
24VDC
Power supply
24 VDC
Grounding
± 10%
φ3.7
Other
equipment
