Notes on LCD
Tiny spots (dark or luminescent) may appear on the display due to the liquid crystal characteristics.
Please note that this is not a fault or malfunction of AnyTouch.
UL/c-UL Approval
The V812 Plus series (DC power supply type) is UL/cUL-approved. (File No. : E150833 (UL508), File No. : E195620
(UL1604))
The V812+ conforms to the following four standards.
- UL508
- UL1604
- CSA-C22.2 No. 142-M1987 Process Control Equipment
- CSA-C22.2 No. 213-M1987 Non-Incendive Electrical Equipment for Use in Class I, Division 2 Hazardous Locations
UL1604/CSA-C22.2 No. 213 Compliance and Handling Cautions
Power, input and output wiring must be in accordance with Class I, Division 2 wiring methods - Article 501 - 10(B) of the
National Electrical Code, NFPA 70.
This product is certified for use in Class I, Division 2, Groups A, B, C or D hazardous location or non-hazardous locations.
WARNING: Explosion Hazard: Substitution of components may impair compliance to Class I, Division 2.
WARNING: Explosion Hazard: Do not disconnect the device while the circuit is alive unless area is known to be non-
hazardous. Perform system set-up or diagnostics of the CF card port, USB-A or USB-B port only in a non-hazardous
location.
WARNING: Explosion Hazard: For use in a hazardous location, turn off the power before replacing or wiring modules.
Do not replace a battery in a hazardous location.
In the case of use in a hazardous location, be sure to check that the externally connected unit and each interface have
been secured with screws or have been locked. In a hazardous location, it is impossible to insert or remove a cable from
the applicable port. Be sure to check that the location is non-hazardous before inserting or removing it.
UL Listing Application for a System Equipped with AnyTouch
The back panel of AnyTouch is not approved as an enclosure. For UL listing application, build AnyTouch in the system,
and configure an enclosure so that the entire system will be UL-approved.
Use AnyTouch indoors only.
Mount it on a flat surface so that it will comply with the enclosure type 1.
Use a UL-approved crimp-style terminal for wiring of the power supply cable.
Screw Size
Tightening Torque
7.1 inch-lbf
M3.5
(0.8 N·m)
Use the Class 2 power supply for the 24-VDC power unit.
CE Marking
The V8 Plus Series (DC power supply type) complies with EMC Directives.
EN61000-6-2, EN61000-6-4
The V8 Plus Series is identified as a class-A product in an industrial environment. In the case of the use in a domestic
environment, the V8 Plus Series is likely to cause electromagnetic interference. Preventive measures should thereby be
taken appropriately.
Industrial Control Equipment
Electrical Equipment for Use in Class I, Division 2 Hazardous Locations

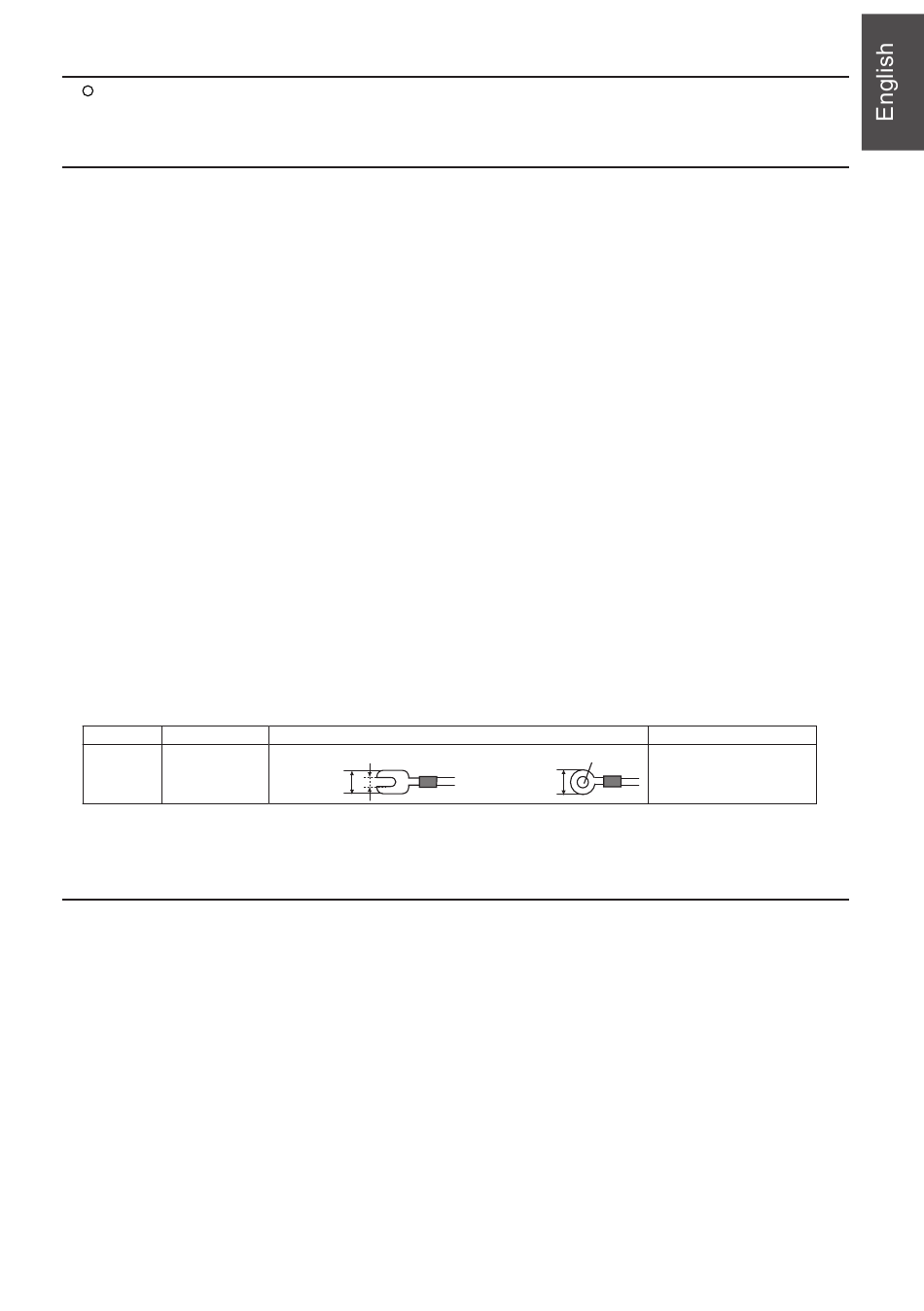

Crimp-style Terminal (Unit: mm)
3.7
8.0 or less
V812+ OPERATING INSTRUCTIONS
φ3.7
8.0 or less
3
Power Cable
AWG16 - AWG18
Rated temperature 60°C
Use copper conductor only.
