V812+ OPERATING INSTRUCTIONS

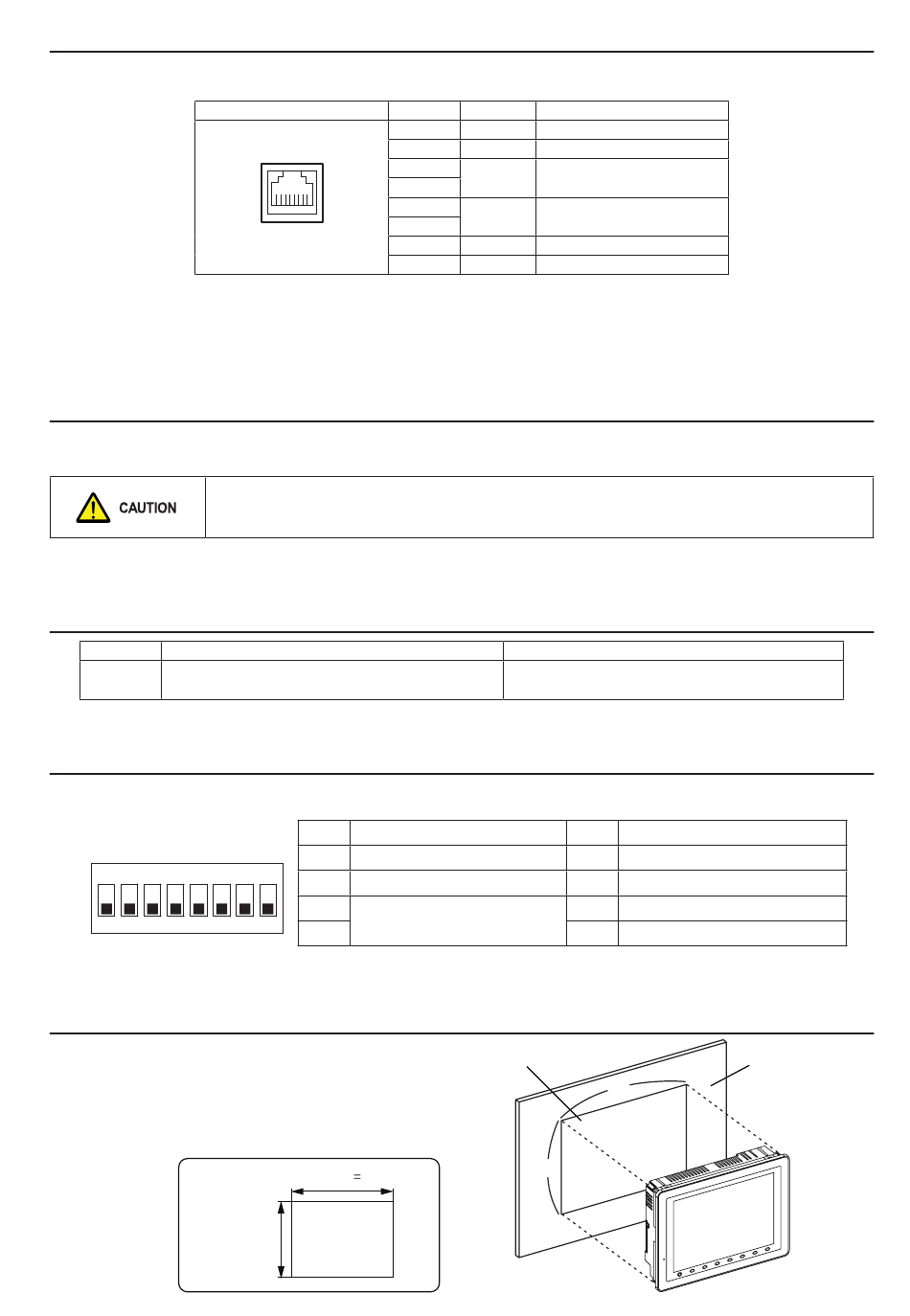

Modular Jack (MJ1/MJ2)

The MJ1 and MJ2 connectors are used for serial communication (RS-232C/RS-485) with an external device. The MJ1
connector can also be used for screen data transfer.
*1 The maximum current value of "externally supplied +5 V" varies depending on the option configuration; whether it is
fully featured (communication unit + optional unit) or not. For details, refer to the separate V8 Plus Series Hardware
Specifications manual.
* FG: Frame Ground
LAN Connector (LAN)
The LAN connector is used for Ethernet communication (100BASE-TX, 10BASE-T).
Specification: IEEE802.3(u) compliant, supporting UDP/IP and TCP/IP
For more information on the LAN connectors or cables, refer to the separate V8 Plus Series Hardware Specifications manual.
USB Port (USB Ver. 1.1)
Type
- Connecting a USB printer (EPSON's STYLUS PHOTO)
Applications
- Connecting a CF card reader/writer
For more information on the USB port or cable clamp procedure, refer to the separate V8 Plus Series Hardware Specifications manual.

DIP Switches

Setting of DIP switches is as follows. (The following figure shows the DIP switch setting upon delivery.)
Before setting the DIP switch, turn the power off.
(Enlarged view)
ON
1 2 3 4
For details, refer to the separate V8 Plus Series Hardware Specifications manual.

Mounting Procedure

Mounting Procedure
1. Insert the unit into the mounting panel (max. thick: 5 mm).
Panel cut-out dimensions
(Unit: mm)
Y = 246.2
MJ1/MJ2
87654321
V812i+ only
- MJ1/2 and LAN connector are 8-pin modular jacks. Check the indication on the unit and insert a
cable into the correct position.
- Do not connect any over voltage peripheral device to the LAN connector.
A (Master)
No.
1 CF auto-loading
2 CF access control
3
Not used
5 6 7 8
4
X
+0.5
-0
Pin No. Signal
1 +RD/+SD RS-485 data (+)
2 -RD/-SD RS-485 data (-)
3
Externally supplied +5 V
+5V
Max. 150 mA
4
5
SG Signal ground
6
7 RD RS-232C receive data
8 SD RS-232C send data
- Connecting a computer (used for screen data transfer)
etc. - Connecting a PictBridge printer
Contents
Panel cut-out hole
Y
+0.5
313.0
-0
6
Contents
*1
B (Slave)
No. Contents
5 +SD/-SD terminal resistance of CN1
6 MJ1 terminal resistance
7 +RD/-RD terminal resistance of CN1
8 MJ2 terminal resistance
Mounting panel
X
F 6
F 5
F 4
F 3
F 2
F 1
TEM
SYS
F 7
