Make sure that the delivered unit conforms to your requirement, and also check for any missing or damaged parts.
Before using this V812+, be sure to read this OPERATING INSTRUCTIONS as well as the V8 Plus Series Hardware
Specifications manual thoroughly to ensure proper operation.

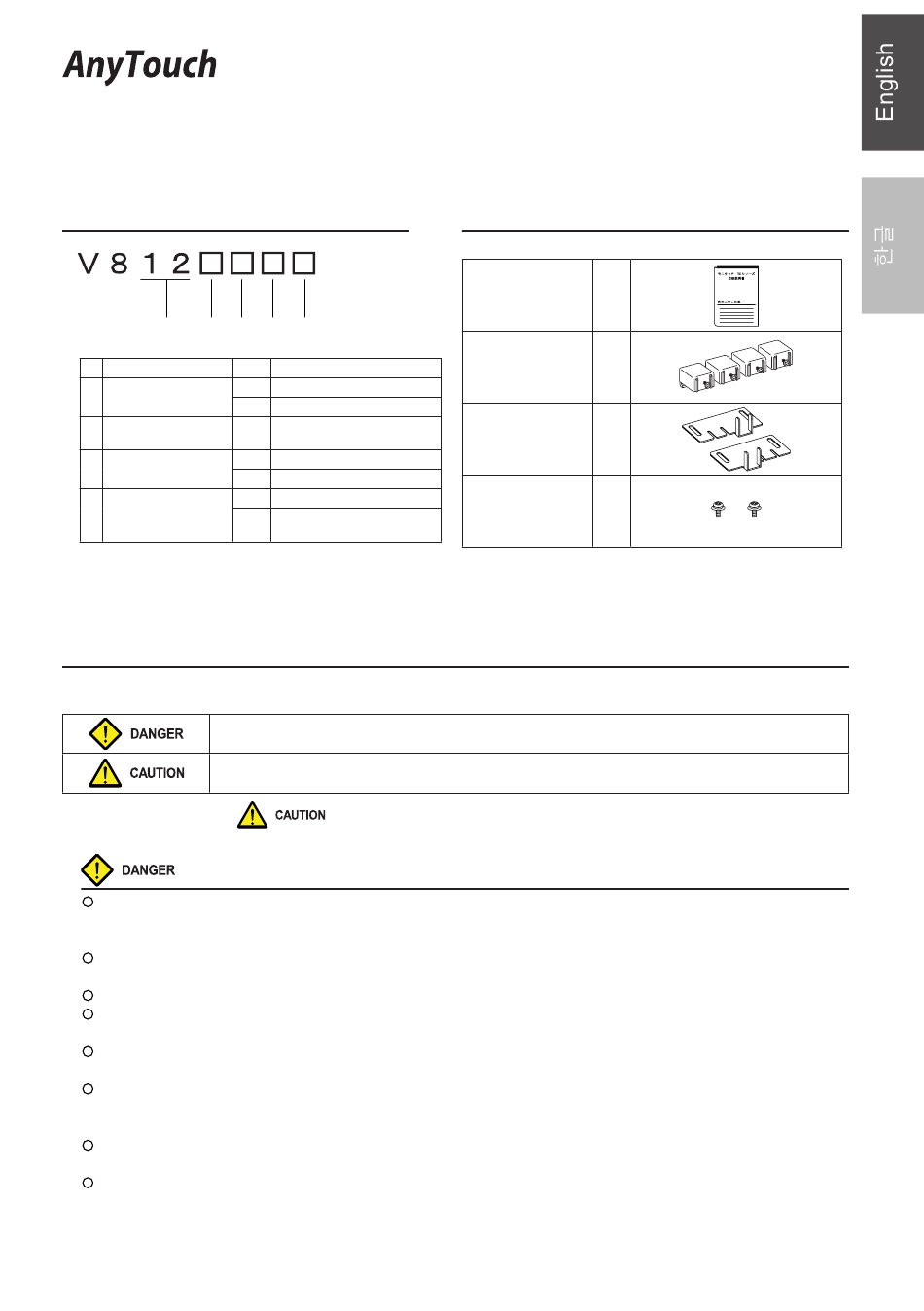

Models
1
2
3
1 Screen size
2 Performance
None Standard model
3 Device type
4 Touch switch type
None Analog resistance film type
5 Power supply type
None 100 - 240 VAC
Notes on Safe Usage
In this "V812+ OPERATING INSTRUCTIONS", you will find various notes categorized under the following two levels with the
signal words "Danger" and "Caution."
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious
injury.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate
injury and could cause property damage.
Even some items indicated
Never use the output function of AnyTouch for operations that may threaten human life or to damage the system,
such as switches to be used in case of emergency. Please design the system so that it can cope with malfunction of
a touch switch. A malfunction of the touch switch will result in machine accident or damage.
Turn off the power supply when you set up the unit, connect cables or perform maintenance and inspection.
Otherwise, electrical shock or damage may occur.
Never touch any terminals while the power is on. Otherwise, electrical shock may occur.
You must put a cover on the terminals on the unit when you turn the power on and operate the unit. Without the
terminal cover in place, an electric shock may occur.
The liquid crystal in the LCD panel is a hazardous substance. If the LCD panel is damaged, do not ingest the leaked
liquid crystal. If the liquid crystal spills on your skin or clothing, use soap and wash off thoroughly.
For AnyTouch using a lithium battery, never disassemble, recharge, deform by pressure, short-circuit, reverse the
polarity of the battery, or dispose of the battery in fire. Failure to follow these conditions will lead to explosion or
ignition.
For AnyTouch using a lithium battery, never use a battery that is deformed, leaks, or shows any other signs of
abnormality. Failure to follow these conditions will lead to explosion or ignition.
The power lamp flashes when the backlight is at the end of life or is faulty. However, the switches on the screen
are operable at this time. Do not touch the screen when the screen becomes dark and the power lamp flashes.
Otherwise, a malfunction may occur and result in machine accident or damage.
V8 Plus Series
V812+ OPERATING INSTRUCTIONS
4
5
12
12-inch
i
Advanced model
S
TFT color LCD
(SVGA 65,536 colors)
M
Matrix resistance film type
D
24 VDC
(comply with CE/UL/cUL)
may also result in a serious accident.
Accessories
V812 OPERATING
1
INSTRUCTIONS
copy
Fixtures
4
pcs.
USB cable clamps
2
pcs.
USB cable clamp
2
fixing screws
pcs.
(M3 × 8)
1
3312NKO
