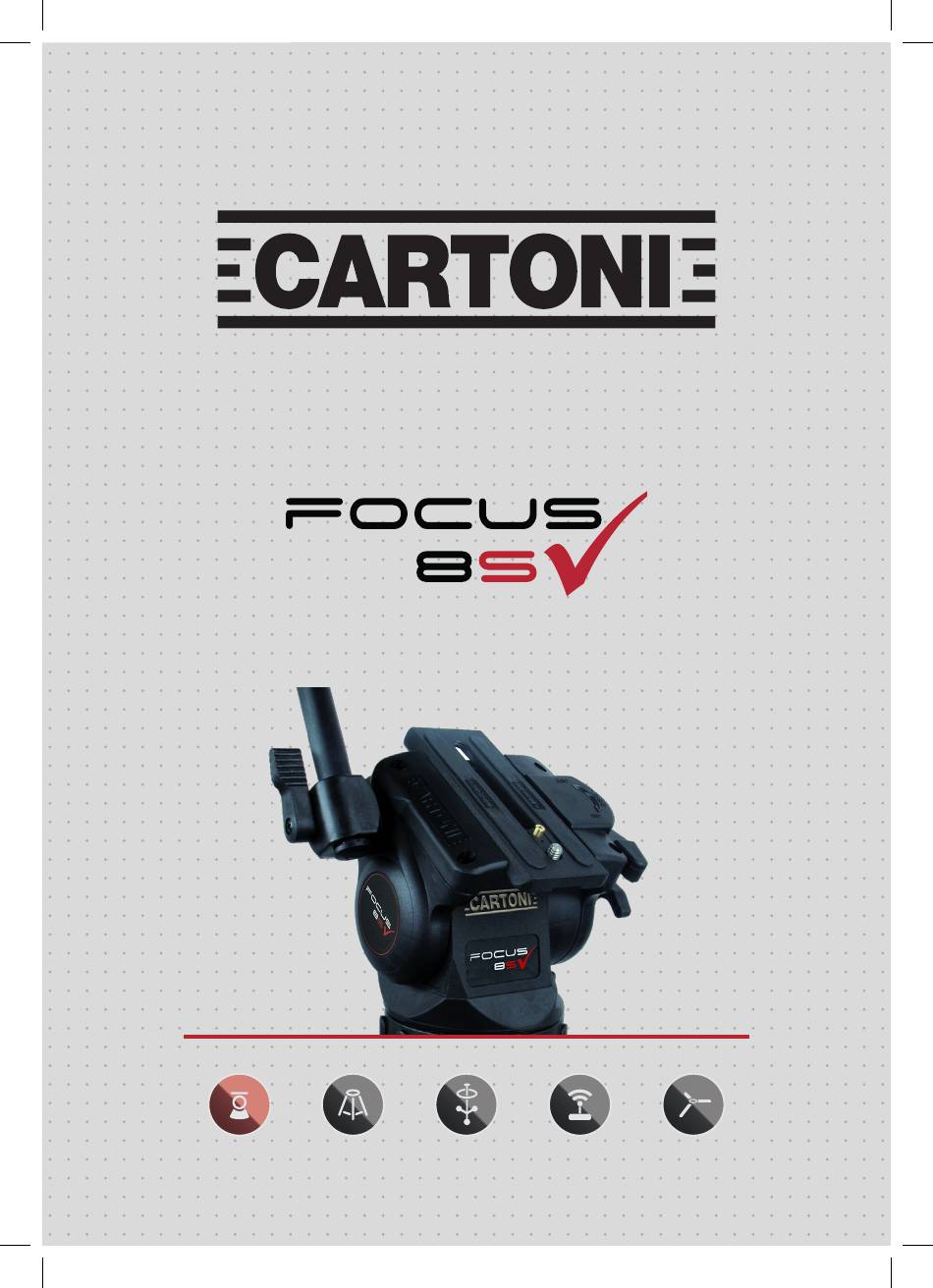

  • Page 1 PROFESSIONAL CAMERA SUPPORT...
  • Page 2 CARTONI ® / All rights reserved © User Manual Version: 2.0 Issue date: Feb 2017 CARTONI S.p.A. Via di Portonaccio, 33/B 00159 - Rome (Italy) phone. +39 06 4382002 fax. +39 06 43588293 email. cartoni@cartoni.com www.cartoni.com...
  • Page 3 USER MANUAL...
  • Page 4 INDEX Safety & Set-up instructions Operating elements Procedures Technical data Maintenance Warranty Accessories & Product line...
  • Page 5 Pan bar that can be attached to a rosette on either side. The FOCUS 8S tilts +/- 90° with perfect response throughout the entire Tilt range. It interfaces with all 75 mm bowl base Tripods and supports.

  • Page 6: Operating Elements

    2. OPERATING ELEMENTS Tie down knob Level bubble Pan bar Pan bar attachment Pan bar extension Pan brake lever...
  • Page 7 Tilt brake lever Pan drag selector Camera Plate lock Balance knob Camera Plate Tilt drag selector...
  • Page 8 6 - Place the camera sideways on top of the FOCUS 8S, the wedge plate will lock into place: The camera plate locking lever (9) will click into an intermediate position, so that you can slide the camera back &...

  • Page 9: Technical Data

    Temperature Range -40°/+60° 5. MAINTENANCE With indoor use - when needed - just clean the FOCUS 8S and Tripod with a soft cloth. Dirt accumulated during storage may be removed using a brush or Air spray. CARTONI products main mechanisms are sealed as they are also built for professional outdoor use.

  • Page 10: Warranty

    6. WARRANTY All CARTONI Fluid Heads & Pedestals have a free of charge three (3) year warranty. Register your product at www.cartoni.com within 30 days from date of first purchase/invoice to receive further two (2) year warranty for the unsurpassed free five (5) year warranty.
  • Page 11 7. ACCESSORIES & PRODUCT LINE For the complete Accessories list & Product line please visit CARTONI’s official website www.cartoni.com. Every product has an updated list of compatible items sorted by groups, with descriptions and technical data.
  • Page 12 www.cartoni.com...
