Related Manuals for Cartoni Focus 10
Summary of Contents for Cartoni Focus 10
- Page 1 PROFESSIONAL CAMERA SUPPORT USER’S MANUAL & Maintenance...
- Page 3 & S afety ntrodUctIon peratIng elementS rocedUreS pecIfIcatIonS aIntenance arranty & cceSSorIeS prodUct lIne CARTONI ® All rights reserved © Manual Version: 2.3 Issue date: March 2020...

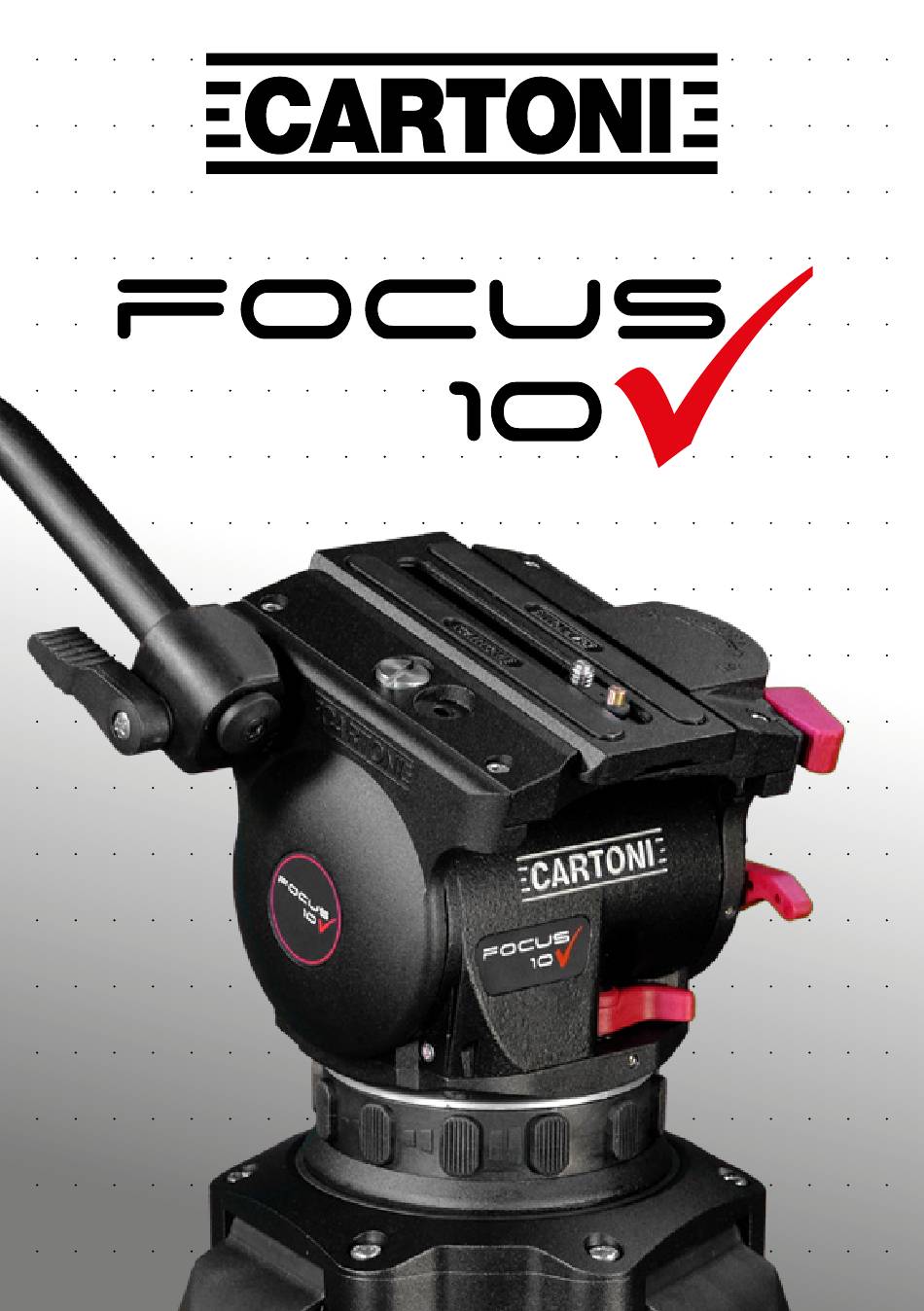

- Page 5 & S afety ntrodUctIon The FOCUS 10 Fluid Head is the ideal support for the latest smaller, lighter high-performance Cameras weighing from 0 to 11 kg (0 to 24.3 lbs). Extremely compact and lightweight, the innovative FOCUS 10 features a continuously variable fluid damping system on both Pan and Tilt move-...
-
Page 6: Operating Elements
2. o peratIng lementS ❶ ❸ ❷ ❹ ❻ Camera plate ❺ Pan bar attachment Pan bar extension Pan drag selector Pan brake lever Tilt brake lever... - Page 7 ❼ ⓬ ❿ ❽ ❾ Camera plate release lever ⓫ Tilt drag selector Spirit level & Battery Counterbalance selector Tie down knob Pan bar...
- Page 8 Center the plate on the Camera, keeping the center of grav- ity position in mind. Place the camera sideways on top of the FOCUS 10, the wedge plate will lock into place: the Camera plate locking lever (7) will click into an intermediate position, so that you can slide the Camera back &...
-
Page 9: Specifications
Set the counterbalance system by turning the balance knob clockwise (10) to appropriate tension. The Camera has to stay at any tilt angle. Eventually fine-tune by adjusting the sliding plate. Unlock the Pan brake lever (5) and set the Fluid drag control by adjust- ing selectors (4 &... -
Page 10: Maintenance
5. m aIntenance With indoor use - when needed - just clean the FOCUS 10 and Tripod with a soft cloth. Dirt accumulated during storage may be removed using a brush or Air spray. CARTONI products main mechanisms are sealed as they are also built for professional outdoor use. - Page 11 This warranty does not apply to any CARTONI product that has been damaged in shipping or handling, abused, misused, operated contrary to instructions for use, neglected, normal wear or tear, modified or changed in design or construction or serviced by unauthorized parties.
- Page 12 PROFESSIONAL CAMERA SUPPORT CARTONI S.p.A Via di Portonaccio, 33/B - 00159 Rome (Italy) Phone +39 06 4382002 Fax +39 06 43588293 Email: cartoni@cartoni.com www.cartoni.com...
