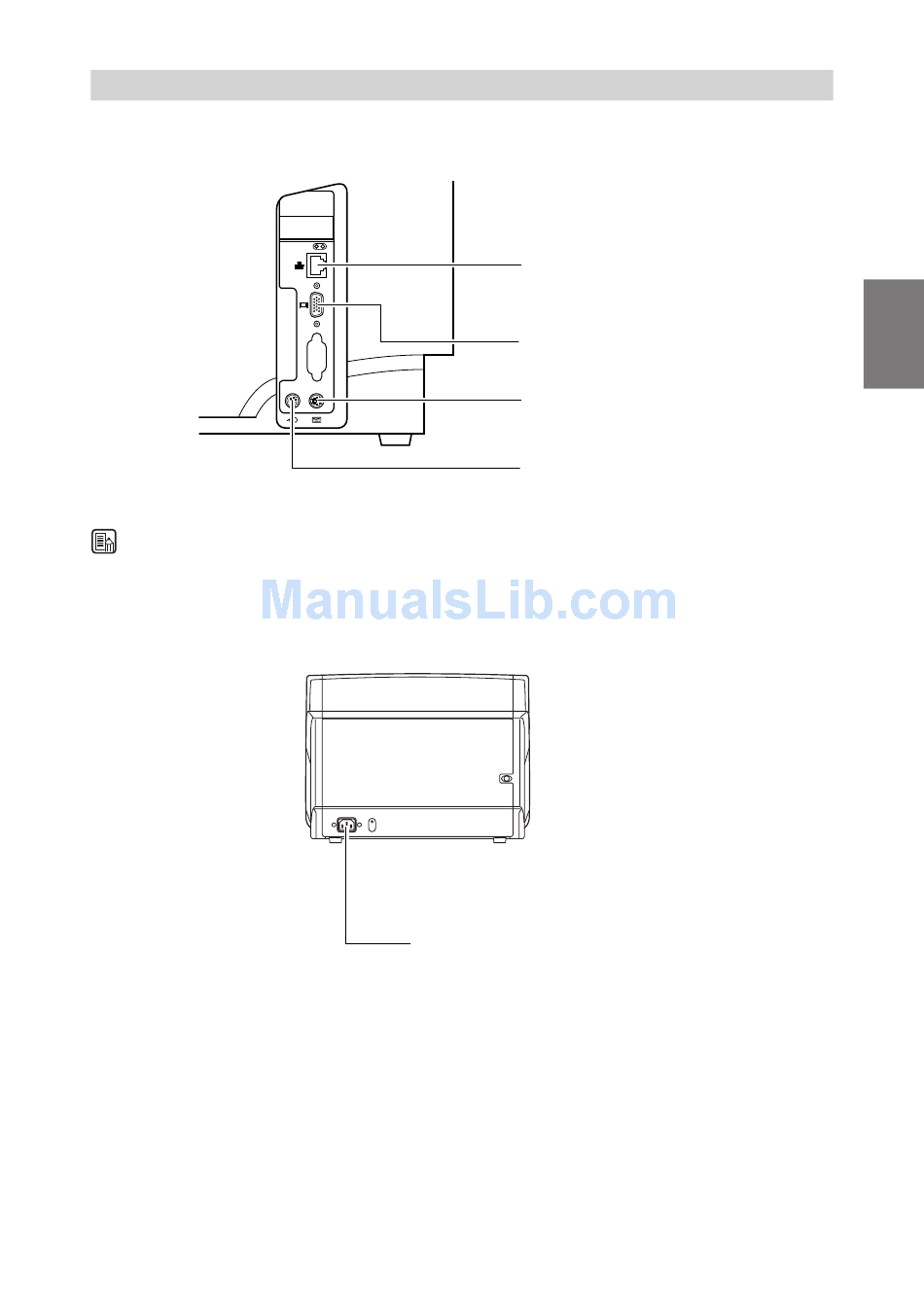

■ External Interface
NOTE
The VGA monitor output resolution is 640 x 480 dpi.
■ Back View
Chapter 2. Overview of the CD-4070NW
RJ-45 Network Connector
Connect a 10Base-T/100Base-TX
twisted pair cable here.
15 pin D-Sub Connector
Connect a VGA monitor here.
PS/2 Connector (Purple)
Connect a PS/2 keyboard here.
PS/2 Connector (Green)
Connect a PS/2 mouse here.
Power Cord Connector
This is used for connecting the power cord
(supplied).
17
