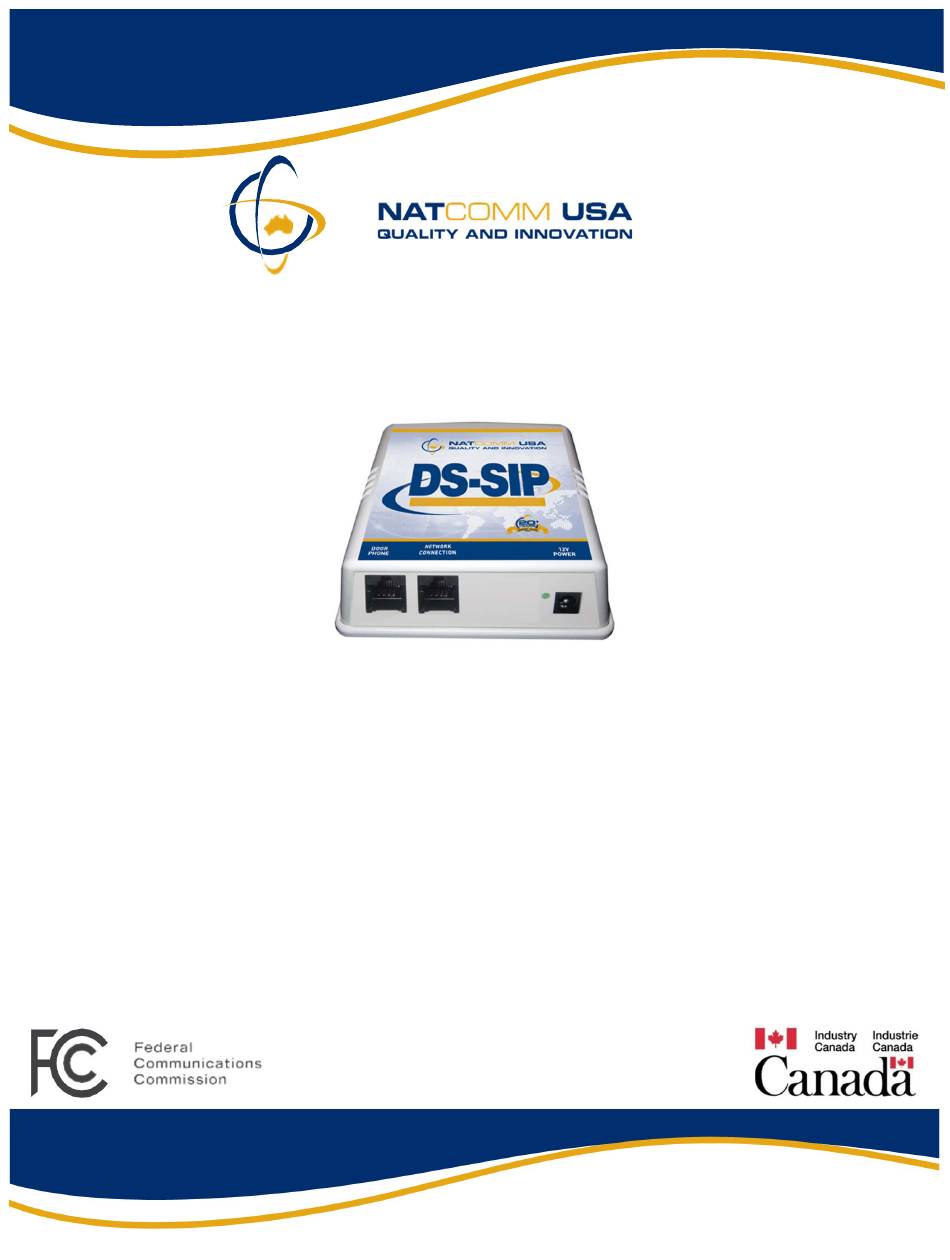

- Page 1 DS-SIP SIP INTERCOM CONTROLLER For Technical Assistance call the Manufacturers direct ph 800 530 8645 8AM - 5PM West Coast Pacific Time NATCOMM USA LLC Responsible Supplier Code :NC...
-
Page 2: Packing List

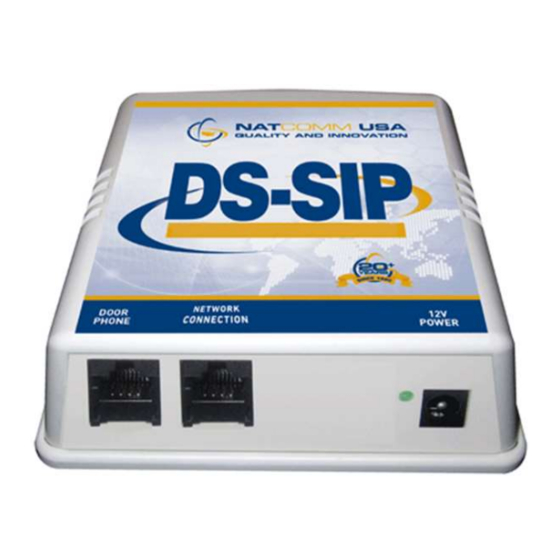

DS-SIP is a Door Station Controller designed to operate with Any NATCOMM Door Phone Intercom (see page 3). DS-SIP is supplied as a complete kit, ready for quick and easy installation by a technician or an end user with some IT experience. - Page 3 (130mm Wide, 264mm High, 30mm Depth). Door Phone Intercom Covers and Stainless Steel Surface Mounting Kits are available for all Door Phone Intercoms. See page 4 for further details. Separate User Guides are provided with each DOOR PHONE. Natcomm Page 3...
- Page 4 Door Phones, so that your Door Phone can be mounted ONTO a wall surface, rather than into it. Two separate surface mounting kits are available, to cater for the different sized DP2- DP5 Door Phones: Model SMK2 for DP2 Door Phones Model SMK3 for DP4, DP5 Door Phones Page 4 Natcomm...
-
Page 5: Operation
DS-SIP is designed for use with ANY IP or Cloud PBX System. It can connect to ANY Network Point. The IP Address of DS-SIP is then set up as an Extension and it can be called if required from Any Handset on the same PBX system. -
Page 6: Installation Overview
INSTALLATION OVERVIEW DS-SIP : IP Network Connection DS-SIP can be connected to ANY Point on a Local Area or Wide Area Network, such as : * Any Internal Network Point of a LAN * Direct to a Network Switch * Direct to a Network Modem used for LAN or WAN... - Page 7 DS-SIP : IP Network Connection Using the supplied CAT5 cable connect the NETWORK port of DS-SIP to your Internet Network, at a convenient Network Point or direct to a Switch or Modem-Router. Note : The shielded cable must be pushed fully in until it ‘clicks’ in position.
- Page 8 (4 Wire Connection) Connect Pins 4 & 5 (the center 2 pins) of the 8 pin RJ45 socket of DS-SIP to the center 2 inputs of the supplied 4 position Phoenix Plug. Polarity is not important. This is the Audio Pair.
-
Page 9: Lock Control
Recorder or Light. Relay Specification - Dry Relay Contacts rated at 12V/1Amp. Do not use the supplied DS-SIP Controller 12V plug pack to also provide 12V power for the lock, as this may cause damage to DS-SIP. You must use a separate 12V source, with a maximum rating of 12V/1A. -
Page 10: Lock Installation
Lock 2 or Device 2 should connect to the Blue and White terminals. NOTE- Do not use the supplied DS-SIP Controller 12V plug pack to also provide 12V power for the lock, as this may cause damage to DS-SIP. You must use a separate 12V source, with a maximum rating of 12V/1A. - Page 11 3) DO NOT use a telephone in close proximity to the door phone, as feedback interference will affect the Balance Pot settings. 4) The Balance POT does not increase volume. Moving it when unnecessary can cause a deterioration in audio quality or a loss of audio in 1 direction. Natcomm Page 11...
- Page 12 These are back-ups in case any of the above methods fails to take place. DS-SIP Hang Up tone detection is very reliable and you are very unlikely to need either above option. They are provided in case DS-SIP is exposed to significant EMI Interference which could possibly affect Hang Up tone detection.
-
Page 13: Programming Options
PROGRAMMING OPTIONS DS-SIP Switch provides for Three User Programmable settings. Relay 1 Closure Time Allowable Range 01 to 99 Default Setting is 15 seconds To Change from the Default Setting, in programming Mode, Press : #1xx Where xx = number of seconds and can be 01-99... -
Page 14: Programming Procedure
PROGRAMMING PROCEDURE You can program 1 or more parameters, in any order, during the same programming call. Should you need to program DS-SIP, please follow the procedure below : 1) Call the Extension Number to which DS-SIP switch is connected. - Page 15 Consult the dealer or an experienced technician for help. Call NATCOMM ph 800 530 8645 The Power adaptor supplied with the Door Station Controller that powers this product complies with UL (USA) and cUL (Canada) specifications.
-
Page 16: Specifications
Damage caused to this device or attached equipment by lightning strikes, over voltage surge or excessive water is not covered under this warranty. THE CASE IS SEALED AT THE FACTORY. OPENING THE CASE WILL VOID THE WARRANTY. Page 16 Natcomm...
