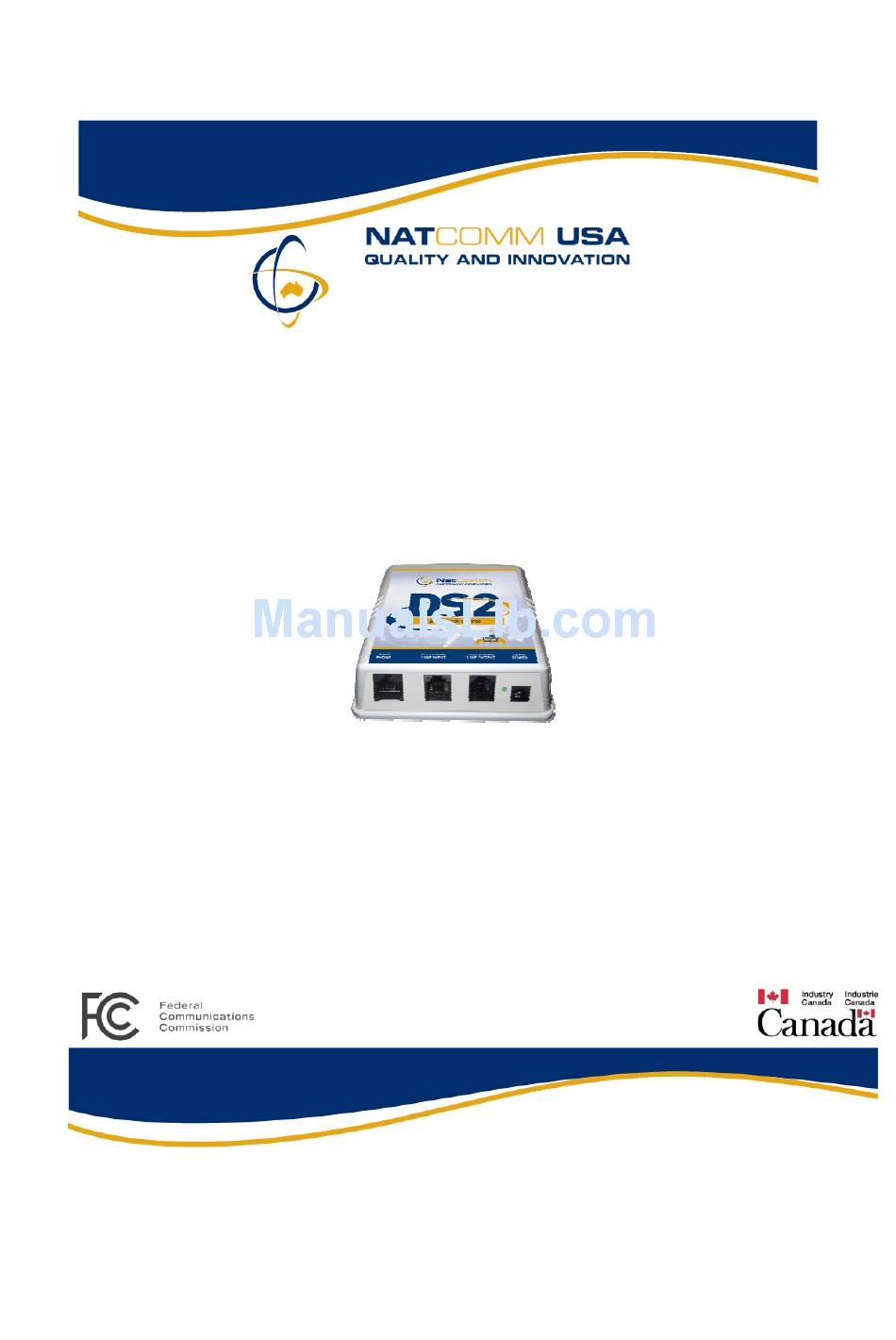

- Page 1 USER GUIDE For Technical Assistance call the Manufacturers direct Ph 800 530 8645 8AM - 5PM West Coast Pacific Time NATCOMM USA LLC Responsible Supplier Code :NC...
- Page 2 Cordless Handsets, this results in extreme flexibility and save the considerable costs of using (and cabling) multiple dedicated Intercom handsets. DS2 can also be fitted to a PSTN TRUNK (used or unused) of any Multi-Line PBX telephone system. See pages 16-17 for further details.
- Page 3 Line Input port of DS2 vacant (see the diagram below). DS2 will ring all attached telephones as normal. This will suit the many users that no longer use a fixed telephone line. The diagram below shows a wiring diagram used when a Single Lock Control relay is being used.
- Page 4 Supplied with Wall Mount Box to assist installation. Optional Surface Mounting Kit is available. (5.1 in Wide, 10.4 in High, 1.2 in Depth). (130mm Wide, 264mm High, 30mm Depth). Separate User Guides are provided with each DOOR PHONE. Page 4 Natcomm...
- Page 5 DP5 Door Phones, so that your Door Phone can be mounted ONTO a wall surface, rather than into it. Two separate surface mounting kits are available, to cater for the different sized DP2-DP5 Door Phones: Model SMK2 for DP2 Door Phones Model SMK3 for DP4, DP5 Door Phones Natcomm Page 5...
- Page 6 OPERATION SUMMARY When a visitor at your door or gate presses the call button on your NATCOMM Door Phone, DS2 will ring all of the telephones connected to your line up to 10 times (the number of rings can be changed).
- Page 7 SINGLE CORDLESS BASE STATION Natcomm Page 7...
- Page 8 WITH SINGLE LOCK CONTROL Page 8 Natcomm...
- Page 9 INSTALLATION WHEN USED WITH MULTIPLE TELEPHONE SOCKETS Natcomm Page 9...
- Page 10 See diagram on page 9. DS2 has been designed so that it will not interfere with the normal use of your telephone line in any way. In the event of a malfunction or power cut, your telephone line will continue to operate.
- Page 11 Modular Double Telephone adaptor. VERY IMPORTANT NOTE - LOSS OF TELEPHONE SERVICE D) Should the DS2 device ever need to be removed, or if it becomes faulty, you will lose your telephone service. To overcome this, you should remove the cable from the LINE IN port...
- Page 12 Power Connection - Connect Pins 3 & 6 (the 2 pins either side of the center 2 pins) of the 8 pin RJ45 socket of DS2, to the outside positions of the 4 position Phoenix Plug. Polarity is not important...
- Page 13 DO NOT use a telephone in close proximity to the door phone, as feedback interference will affect the Balance Pot settings. The Balance POT does not increase volume. Moving it when unnecessary may cause deterioration in audio quality or a loss of audio in 1 direction. Natcomm Page 13...
- Page 14 LOCK CONTROL Your DS2 is provided with an internal relay which can be used to control a Door or Gate Lock. To OPEN the Door/Gate Lock after answering a call from your DOOR PHONE you need to press ** on your telephone. The lock will remain open for 10 seconds (Default setting).
- Page 15 However it is ESSENTIAL to fit a SINGLE High Quality ADSL filter immediately ahead of the DS2 Controller. Failure to do so, or use of additional ADSL filters connected direct to your telephones, WILL cause problems in the operation of your DS2 Controller and ADSL service.
- Page 16 MULTI-LINE PBX TELEPHONE SYSTEM USE Our DS2 Line Sharer can be used with a PBX system in one of 3 ways: 1) Shared on the Last Line of a PBX See Diagram 1 on page DS2 can be fitted to ONE SPECIFIC INCOMING LINE of a Multi Line PBX type system.
- Page 17 MULTI-LINE PBX TELEPHONE SYSTEM USE Diagram 1 - Connecting to the LAST LINE of a PBX system Note DS2 should connect to the LAST LINE of the PBX. Diagram 2 - Connecting to an UNUSED Trunk of a PBX system Note Line Input is not required for our DS Controller.
- Page 18 NUMBER OF RINGS before stopping or initiating Dial Out DS2 will ring your telephones 10 times when it is triggered by a Door Phone call. This can be changed from 1-99 rings. DS2 has the ability to DIAL OUT to an external telephone number or mobile number, if the call is unanswered after the programmed NUMBER OF RINGS.
- Page 19 DS2, PRESS # within 30 seconds. DS2 must be not connected to a telephone line in order for your Telephone to generate the DTMF Touch Tones that it uses for programming its functions. You will hear 3 short ‘beeps’ to confirm you are in programming mode.
- Page 20 PROGRAMMING PROCEDURE TURN OFF POWER TO YOUR UNIT SWITCH ON POWER AND PRESS # (use a Telephone connected to DS2) YOUR UNIT WILL OUTPUT 3 SHORT ‘BEEPS’ (you are in Program Mode) If you do not hear 3 beeps, return to the start (1).
- Page 21 EMI. Please TURN OFF any SWITCH MODE POWER SUPPLIES located near the DS2 controller (and its power supply) and test if the problem is resolved. If the DS2 Power Supply is connected to an Uninterruptable Power Supply, remove it and test if the problem is resolved.
- Page 22 Alternatively, you can remove the Door Phone from its normal position and move it closer to the DS2 unit so that you can connect it using a temporary new CAT5 cable. Please ensure this temporary test cable is no less than 20 feet away from your DS2 unit in order to prevent Audio Feedback.
- Page 23 If your lock operates, then the problem is located in the wires of the connection box, the RJ to RJ lead connecting to the DS2 unit or the relay within the DS2 unit itself.
- Page 24 Damage caused to this device or attached equipment by lightning strikes or over voltage surge is not covered under this warranty. THE CASE IS SEALED AT THE FACTORY OPENING THE CASE WILL VOID THE WARRANTY Page 24 Natcomm...
