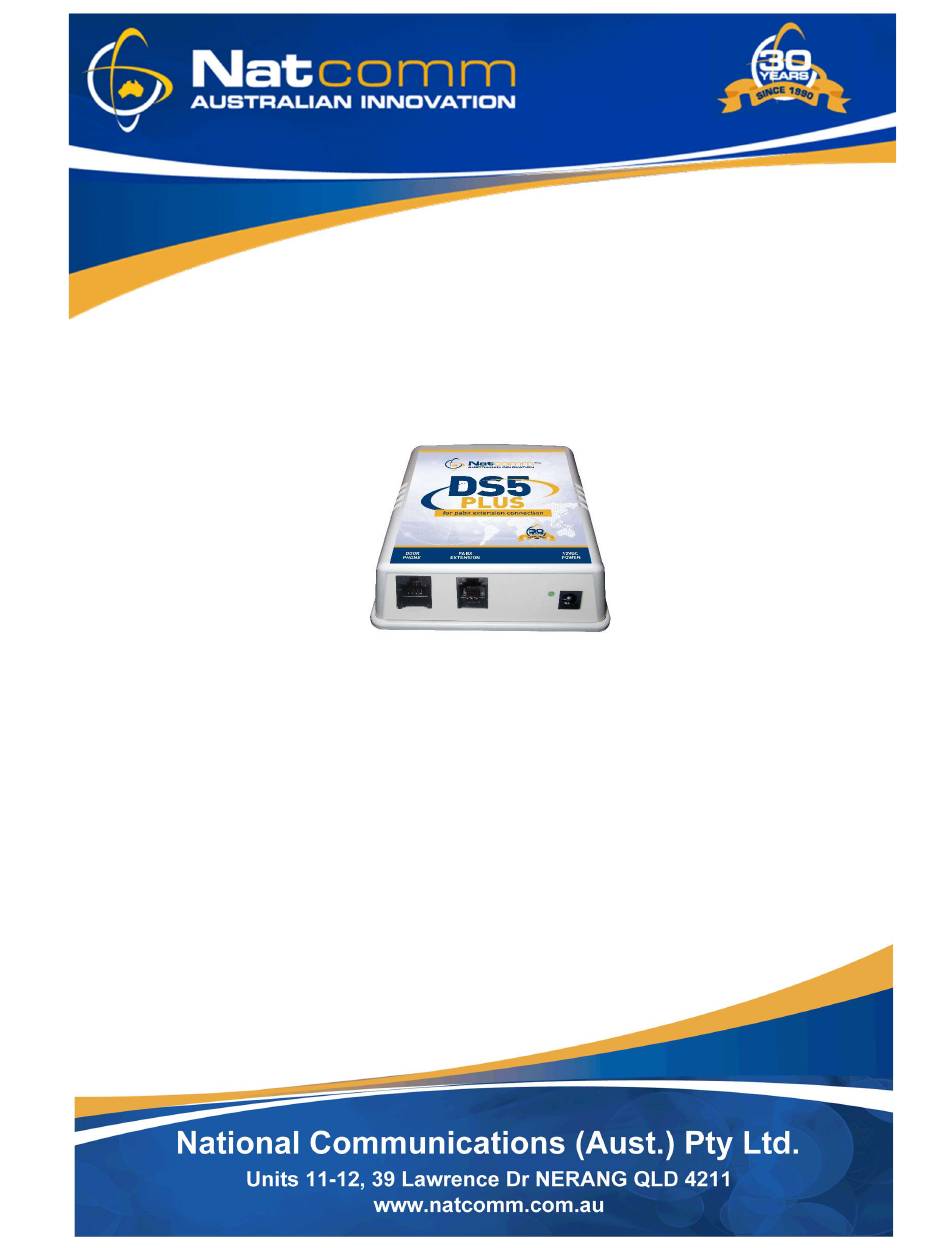

- Page 1 DS5 Plus USER GUIDE For Technical Assistance Please Ph: 07 5596 5128 or Email : info@natcomm.com.au DESCRIPTION...
- Page 2 ‘Hot Dial’ (called ‘Hot Line’) your desired PBX Extension or Extension Group whenever it is triggered by an attached NATCOMM Door Phone. DS5 Plus is supplied as a complete kit, ready for quick and easy installation by a technician or an end user with some IT experience.
- Page 3 DOOR PHONE RANGE A choice of Four Door Phones is provided for use with our range of Door Station Controller units: Model DP1 - SURFACE MOUNT Molded plastic unit, designed for easy surface mounting direct onto your wall surface. ...
- Page 4 DOOR PHONE COVERS If your Door Phone is not under cover, a Strong Transparent DOOR PHONE COVER is highly recommended to prevent water from gradually permeating through to the electronics of the Door Phone. RRP is just $39.00. Model DPC1 for DP1 Door Phone ...
-
Page 5: Operation
Then when a visitor at the door or gate presses the call button on your NATCOMM Door Phone, DS5 Plus will immediately go ‘Off Hook’ and the PBX will Dial the Hot Dial Extension Number. At the same time, DS5 Plus will generate a ‘Ring Back’ tone to the Door Phone Intercom so that the visitor hears that they are being connected. -
Page 6: Connecting The Door Phone
Connection to ANY Natcomm Controller. A 4 Pin Phoenix Plug is supplied with all Door Phones which allows 4 wires from the Door Phone to connect to the DS5 Plus Controller. A solid core cable should be used to interconnect the devices. Cat5 cable is ideal and will allow the units to be up to 300m apart without any loss of performance. -
Page 7: Lock Control
Do not use the supplied DS5 Plus Controller 12V plug pack to also provide 12V power for the lock, as this may cause damage to DS5 Plus. You must use a separate 12V source, with a maximum rating of 12V/1A. -
Page 8: Lock Installation
Lock 2 or Device 2 should connect to the Blue and White terminals. NOTE- Do not use the supplied DS5 Plus Controller 12V plug pack to also provide 12V power for the lock, as this may cause damage to DS5 Plus. You must use a separate 12V source, with a maximum rating of 12V/1A. - Page 9 CALL TERMINATION OPTIONS DS5 Plus has a Hang Up tone detector that will automatically terminate Intercom calls when they are complete. However, there are also 2 other methods of Intercom Call termination: BY THE USER PRESSING ANY TOUCH TONE (0-9)
-
Page 10: Programming Options
PROGRAMMING OPTIONS DS5 Plus Switch provides for Three User Programmable settings. Relay 1 Closure Time Allowable Range 01 to 99 Default Setting is 15 seconds To Change from the Default Setting, in programming Mode, Press : #1xx Where xx = number of seconds and can be 01-99... -
Page 11: Programming Procedure
You can program 1 or more parameters, in any order, during the same programming call. Should you need to program DS5 Plus, please follow the procedure below : 1) Call the Extension Number to which DS5 Plus switch is connected. -
Page 12: Specifications
Damage caused to this device or attached equipment by lightning strikes, over voltage surge or excessive water is not covered under this warranty. THE CASE IS SEALED AT THE FACTORY. OPENING THE CASE WILL VOID THE WARRANTY. Page 12 Natcomm...
