DS4
USER GUIDE
For Technical Assistance
Please Ph: 07 5596 5128
or Email : info@natcomm.com.au
Page 1
Natcomm

Advertisement

Table of Contents
loading

Summary of Contents for NatComm DS4

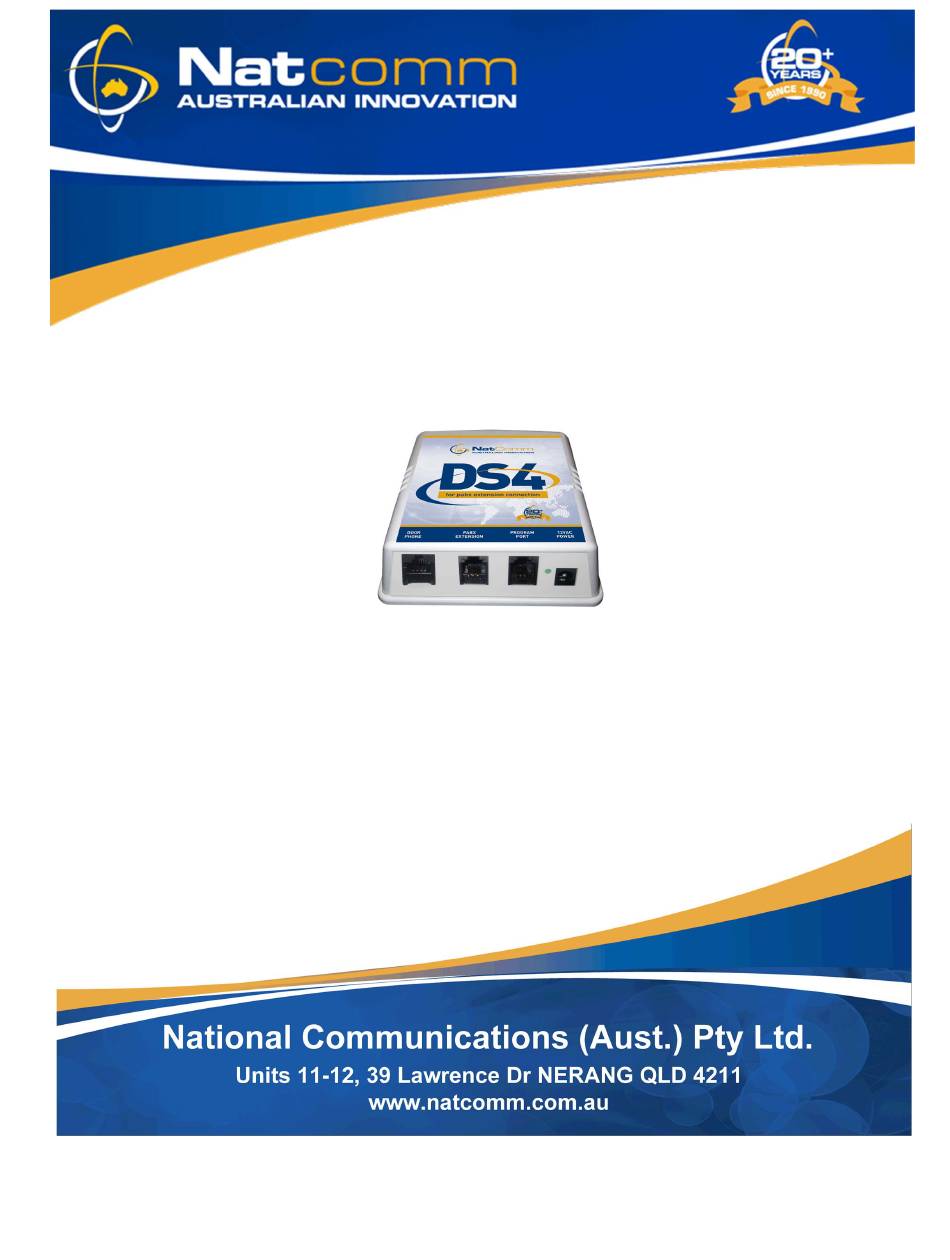

  • Page 1 USER GUIDE For Technical Assistance Please Ph: 07 5596 5128 or Email : info@natcomm.com.au Page 1 Natcomm...
  • Page 2: Product Description

    It is designed to connect to an ANALOGUE EXTENSION of a PBX or an FXS or ATA port of an IP or Cloud Phone System To use DS4, it is necessary that the Telephone System can be programmed to HOT DIAL when the ANALOGUE telephone extension that it is connected to goes ‘Off Hook’.
  • Page 3 Available in Vertical (displayed) or Horizontal orientation  Marine Grade Stainless Steel Face plate.  Blue and White LED Night illumination.  Supplied with Wall Mount Box to assist installation.  Optional Surface Mounting Kit is available. (130mm Wide, 264mm High, 30mm Depth Natcomm Page 3...
  • Page 4 Door Phones, so that your Door Phone can be mounted onto a wall surface, rather than into it. Two separate surface mounting kits are available, to cater for the different sized DP2- DP5 Door Phones: Model SMK2 for DP2 Door Phones  Model SMK3 for DP3, DP4, DP5 Door Phones  Page 4 Natcomm...
  • Page 5 If you require LOCK CONTROL via the Intercom Call, then you should use our alternative Model DS5 Controller. Once the CALLED PARTY has hung up, DS4 will detect the ‘hang up tones’ and then terminate connection to the Door Phone.
  • Page 6: Installation Diagram

    INSTALLATION DIAGRAM Page 6 Natcomm...
  • Page 7: Installation

    DS4 unit using the short RJ to RJ cable that is provided with it. Use of the interface unit is not required. You may prefer to connect the CAT5 cable direct to the 8 pin RJ45 port of DS4. Pin connections are described on page 11.
  • Page 8: Connecting The Door Phone

    Polarity is not important. The LED on the DOOR PHONE should turn ON (DS1 must be ON). Your DP2-DP5 unit should be screwed direct to the wall with the 2 supplied mounting screws, or to the optional Surface Mounting Kit. Page 8 Natcomm...
  • Page 9 Door Phone (or the 2 screw terminals if you are using a DP1). If the Phone system does not respond, then you have a problem with the cabling back to the DS4 that must be repaired or replaced. If the Phone system does respond, then you may have a problem with the Door Phone.
  • Page 10 Due to the possibility that your equipment may not generate ‘Hang Up’ tones or suitable tones, you can ENABLE DS4 to Immediately HANG UP by pressing ANY DTMF Digit from 0-9.
  • Page 11: Programming Notes

    Telephoned (or a Test Phone) to the PROGRAM PORT of your DS4 unit. All entries must be made using this telephone. 2) The PBX EXTENSION port of your DS4 unit MUST be connected to a telephone extension (or you can alternatively use a normal PSTN line). This is so a telephone line ‘battery feed’...
  • Page 12: Programming Procedure

    PROGRAMMING PROCEDURE CONNECT A STANDARD TELEPHONE (or Test Phone) to the PROGRAM PORT of DS4. TURN OFF POWER TO YOUR DS4 UNIT SWITCH ON POWER AND PRESS # (within 30 seconds) YOUR UNIT WILL OUTPUT 3 SHORT ‘BEEPS’ Do not proceed until you have heard 3 short beeps. If you do not hear 3 beeps, return to the start (1).
  • Page 13 Adjust your PBX system to generate Hang Up tones as per the above specification, or to output normal AUSTRALIAN Hang Up tones. You can set DS4 to HANG UP on Detection of ANY DTMF digit (0 to 9), from the Answering Party once the Door Phone call is complete.
  • Page 14: Troubleshooting Audio

    Door Phone from its normal position and move it closer to the DS4 unit so that you can connect it using a temporary new CAT5 cable. Please ensure this temporary test cable is no less than 30ft away from your DS4 unit in order to prevent it generating feedback.
  • Page 15 ACMA (Australia) FCC (USA) and IC (Canada) COMPLIANCE This product has been tested by an authorized independent laboratory to comply with all Telephone Line and Electromagnetic Compliance requirements for Australia, the USA and Canada. NOTES Natcomm Page 15...
  • Page 16: Specifications

    Damage caused to this device or attached equipment by lightning strikes or over voltage surge is not covered under this warranty. THE CASE IS SEALED AT THE FACTORY OPENING THE CASE WILL VOID THE WARRANTY Page 16 Natcomm...
