Levelflex FMP53
9.6

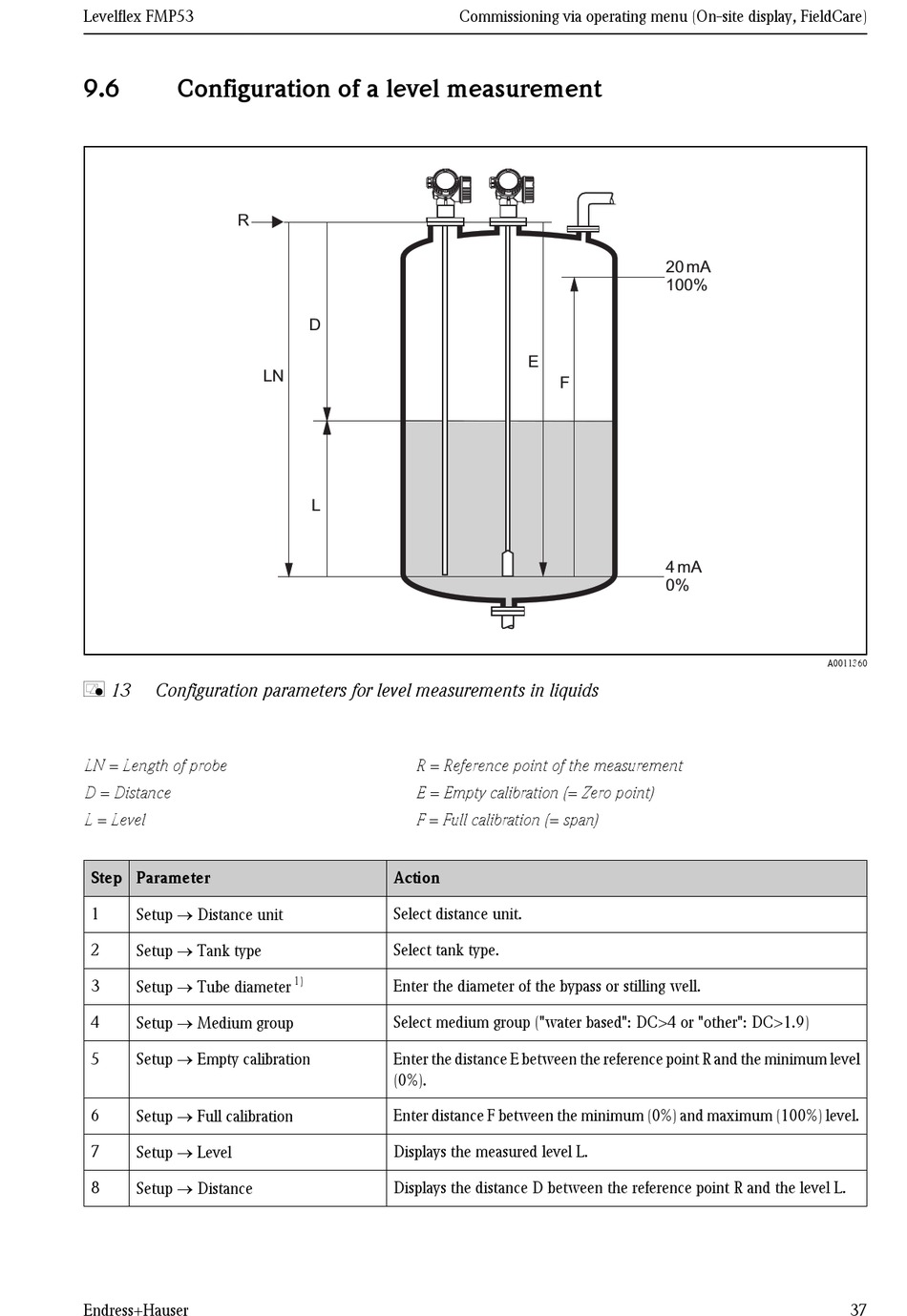

Configuration of a level measurement

R
å 13 Configuration parameters for level measurements in liquids
LN = Length of probe
D = Distance
L = Level
Step Parameter
1 Setup ® Distance unit
2 Setup ® Tank type
3 Setup ® Tube diameter
4 Setup ® Medium group
5 Setup ® Empty calibration
Setup ® Full calibration
6
Setup ® Level
7
Setup ® Distance
8
Endress+Hauser
D
LN
L
R = Reference point of the measurement
E = Empty calibration (= Zero point)
F = Full calibration (= span)
Action
Select distance unit.
Select tank type.
1)
Enter the diameter of the bypass or stilling well.
Select medium group ("water based": DC>4 or "other": DC>1.9)
Enter the distance E between the reference point R and the minimum level
(0%).
Enter distance F between the minimum (0%) and maximum (100%) level.
Displays the measured level L.
Displays the distance D between the reference point R and the level L.
Commissioning via operating menu (On-site display, FieldCare)
E
F
20 mA
100%
4 mA
0%
A0011360
37
