Special Mounting Conditions - Endress+Hauser Levelflex FMP53 Brief Operating Instructions

Mounting
When mounting the electronics housing into a recess (e.g. in a concrete ceiling), observe
a minimum distance of 100 mm (4 inch) between the cover of the terminal compartment /
electronics compartment and the wall. Otherwise the connection compartment /
electronics compartment is not accessible after installation.
6.2

Special mounting conditions

6.2.1 Non-metallic vessels
1 Non-metallic vessel
2 Metal sheet or metal flange

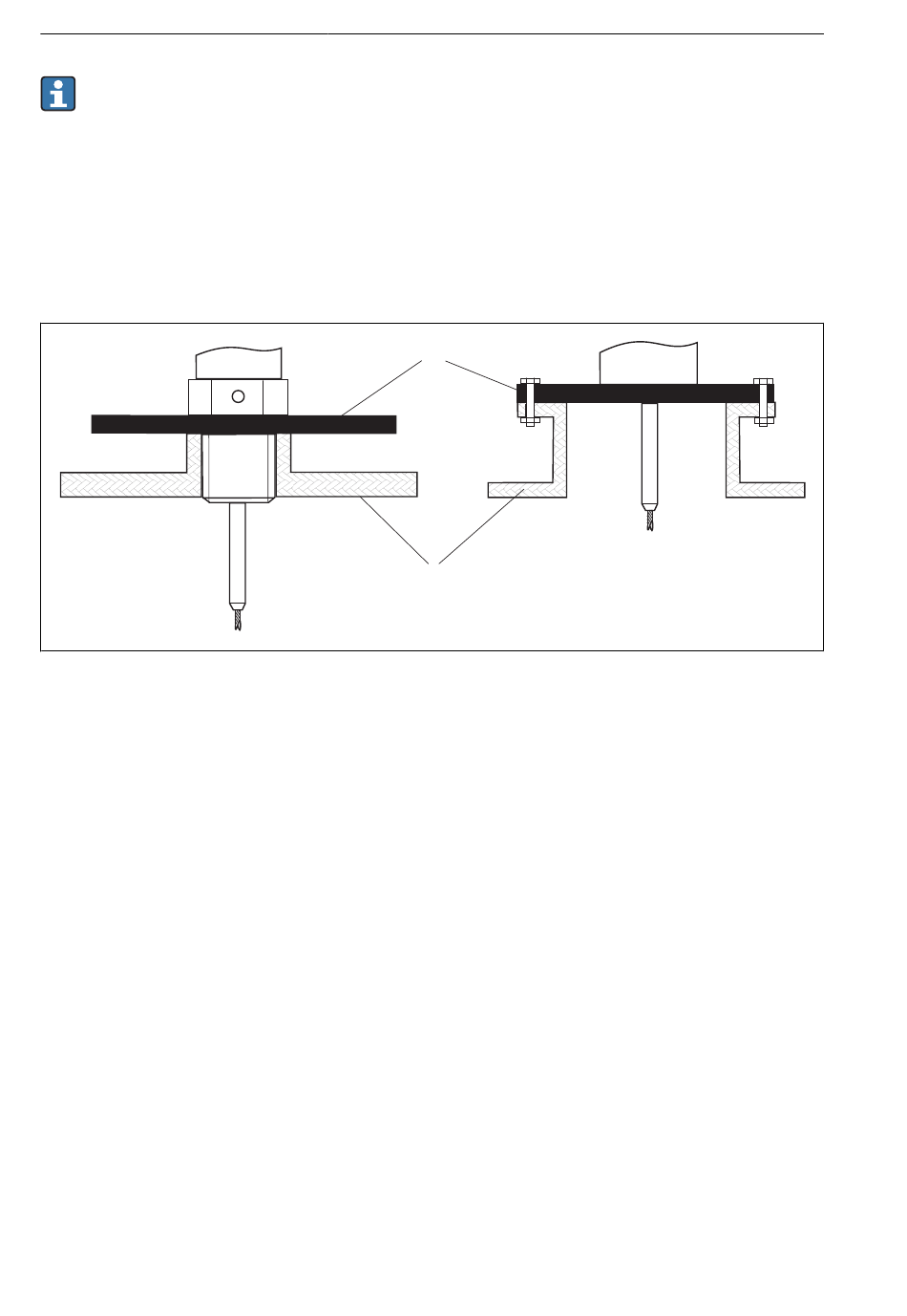

To measure, Levelflex with a rod or rope probe needs a metallic surface at the process connection.
Therefore:
Mount a metal sheet with a diameter of at least 200 mm (8") to the probe at the process
connection. Its orientation must be perpendicular to the probe.
14
2
1
