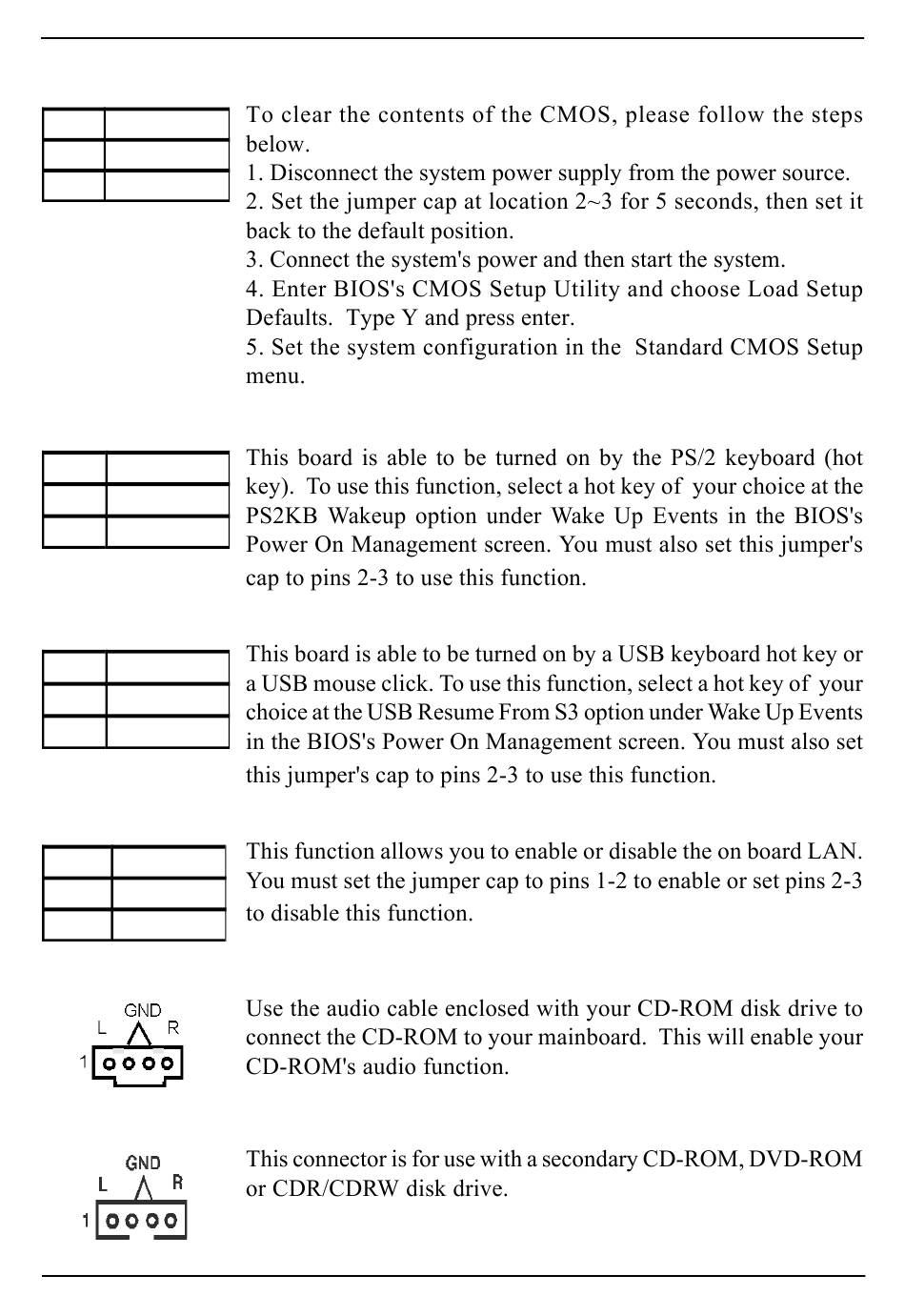

CHAINTECH 6WIFI User Manual page 11

Chapter 2
Clear CMOS Data (JP1) Clear CMOS Data (JP1) Clear CMOS Data (JP1) Clear CMOS Data (JP1) Clear CMOS Data (JP1)
Pin Definition
1~2 Normal (default)
2~3 Clear CMOS Data
PS2 Keyboard Power On Function (JP5) PS2 Keyboard Power On Function (JP5)
PS2 Keyboard Power On Function (JP5) PS2 Keyboard Power On Function (JP5) PS2 Keyboard Power On Function (JP5)
Pin Definition
1~2 Disable (default)
2~3 Enable
Power On By USB 0/1 and 2/3 (JP6/JP6A) Power On By USB 0/1 and 2/3 (JP6/JP6A) Power On By USB 0/1 and 2/3 (JP6/JP6A)
Power On By USB 0/1 and 2/3 (JP6/JP6A) Power On By USB 0/1 and 2/3 (JP6/JP6A)
Pin Definition
1~2 Disable (default)
2~3 Enable
Onboard LAN (JP11) Onboard LAN (JP11)
Onboard LAN (JP11) Onboard LAN (JP11) Onboard LAN (JP11)
Pin Definition
1~2 Enable
2~3 Disable
CD-ROM Audio-in Connector (CN2) CD-ROM Audio-in Connector (CN2)
CD-ROM Audio-in Connector (CN2) CD-ROM Audio-in Connector (CN2) CD-ROM Audio-in Connector (CN2)
Auxiliary Audio-in Connector (CN3) Auxiliary Audio-in Connector (CN3) Auxiliary Audio-in Connector (CN3)
Auxiliary Audio-in Connector (CN3) Auxiliary Audio-in Connector (CN3)
