WHITE GOODS
Operating your freezer
Temperature adjustment
• Initial temperature value for Freezer Department Indicator is -18°C.
• Press mode button once.
• The set value for freezer department indicator starts to flash when you press
this button.
• The value for freezer department indicator changes for a lower temperature
each time you press this button when the indicator is flashing.
• ( -16°C, -17°C, -18°C, -19°C, -20°C, -21°C, -22°C, -23°C, -24°C)
• When you wait for 1 second without pressing any button after reaching the
desired set value, the set value is activated and your freezer operates with that
set value.
• If you continue to press after -24°C , it will restart from -16°C.
Recommended temperature values for freezer
FREEZER – 391 ELECTRONIC (FLAT)

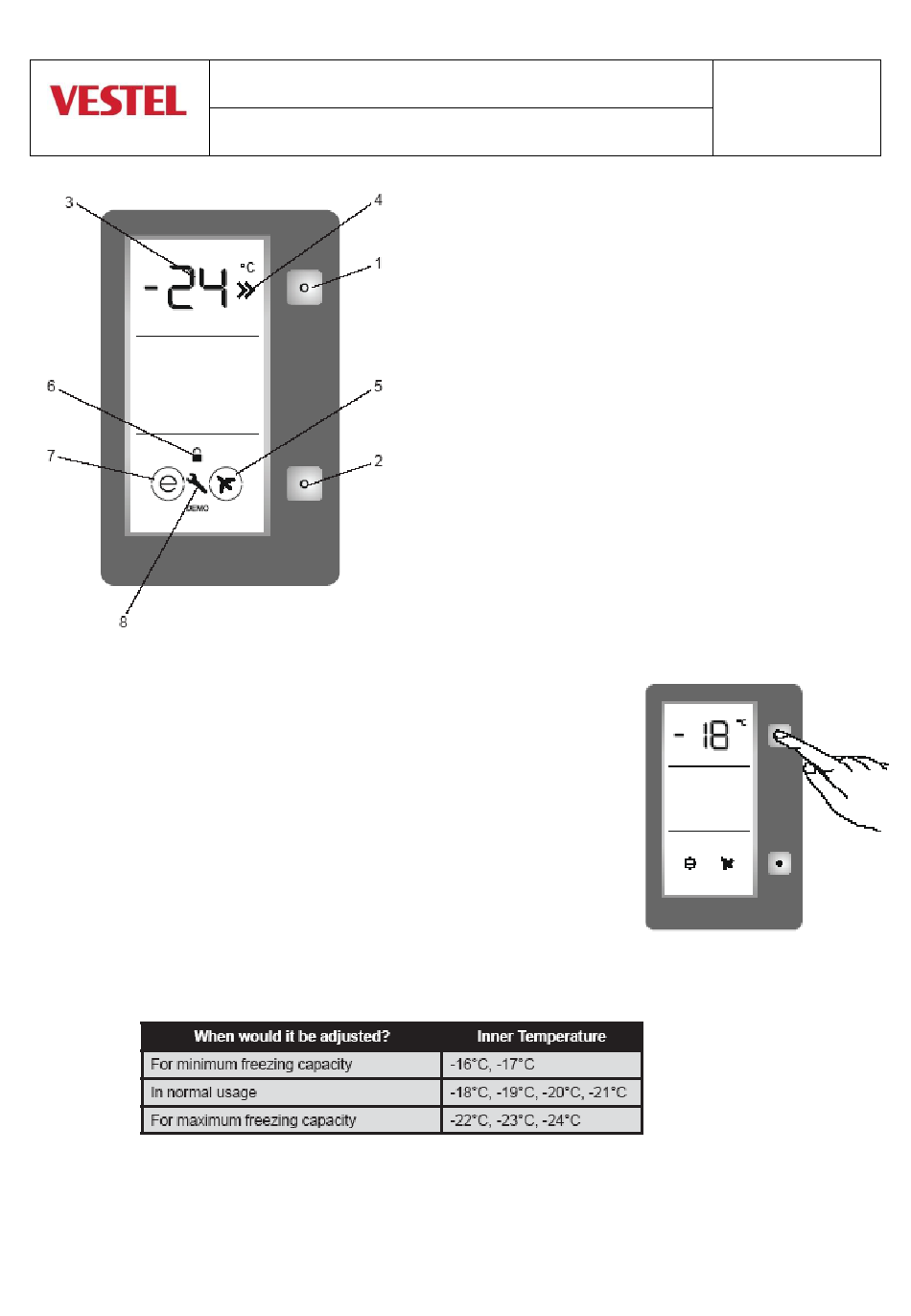

DISPLAY and CONTROL PANEL
1. It enables the setting value of freezer to be modified
and super freeze mode to be activated if desired.
Freezer maybe set to -16, -17, -18, -19, -20, -21, -22,
-23, -24 °C.
2. It enables the modes (economy, SF...) to be activated
if desired.
3. It is freezer set value screen.
4. It is super freezing indicator.
5. IIt is super freeze mode symbol.
6. It is child-lock symbol.
7. It is economy mode symbol.
8. It is alarm symbol.
1
CUSTOMER
SUPPORT
JULY 2015
