  • Page 1 Gimbal and Camera This chapter provides the technical specifications of the camera and explains the working mode of the gimbal. © 2016 DJI. All Rights Reserved.

  • Page 2: Camera And Gimbal

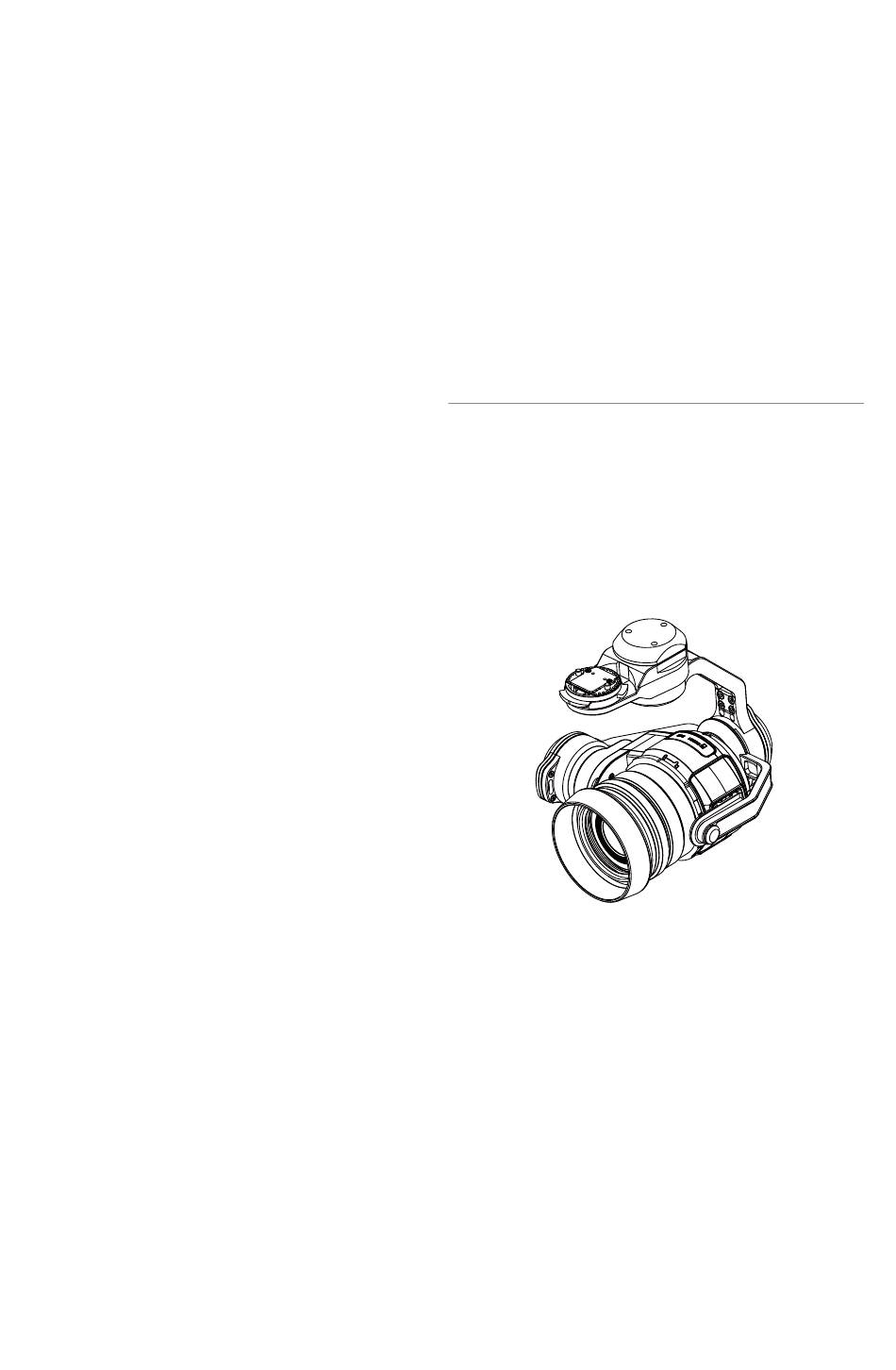

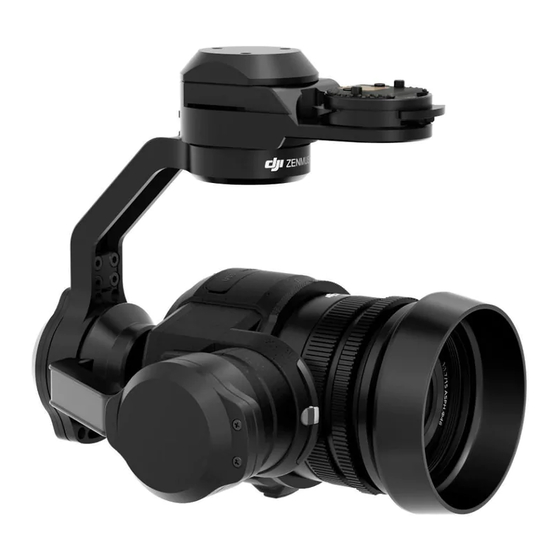

    M4/3 interchangeable lens. The Type 4/3 CMOS sensor supports video recording in 4K and 16MP still photos. The Zenmuse X5 lens kit comes with the DJI MFT 15mm f/1.7 ASPH that provides a 72 degree field of view and a manually adjustable f/1.7-f/16 aperture range. The camera can shoot burst, AEB or time-lapse in JPEG and DNG RAW, and output video in MP4 and MOV formats.

  • Page 3: Status Led

    Camera Operation Use the Shutter and Record button on the remote controller to shoot the images or the videos through the DJI GO app. For more information about how to use these buttons, refer to “Controlling Camera” P27. © 2016 DJI. All Rights Reserved.
  • Page 4 Follow the instructions below to use the gimbal dial to control the pan movement of the gimbal: 1. Power on the aircraft and remote control, launch DJI GO app and enter “Camera” page. 2. Tap “RC Control Settings” icon and select either C1 or C2 customizable button as the gimbal pitch/ yaw switching button.
  • Page 5 While pressing the C2 button, turn the camera settings dial to fine tune the roll axis of the gimbal. Using DJI GO App to Control Gimbal Follow the steps below to use DJI GO app to control the gimbal orientation: 1. Launch DJI GO app, enter “Camera” page.
  • Page 6 Three Gimbal operation modes are available. Switch between the different operation modes on the Camera page of the DJI GO App. Note that your mobile device must be connected to the remote controller for changes to take effect. Refer to the table below for details:...
  • Page 7 DJI GO App This chapter describes the four main GUI of the DJI GO app. © 2016 DJI. All Rights Reserved.
  • Page 8 DJI GO App The DJI GO app is a new mobile app designed specifically for the Inspire 1 Pro. Use this app to control the gimbal, camera and other features of your flight system. The app also comes with Map, Store a User Center, for configuring your aircraft and sharing your content with friends.
  • Page 9 A general-purpose style for most scenes. 2. Landscape The camera will focus on as much of the scene as possible by using a large depth of field. 3. Soft Suitable for scenes with natural or soft colors. © 2016 DJI. All Rights Reserved.
  • Page 10 Off, 1s, 2s, 3s, 4s, 5s, 6s, 7s, 8s, 9s, and 10s Anti-Flicker Auto, 60Hz, and 50Hz Show Grid Off, Grid Line, Grid + Diagonal, Center Point File Index Mode Reset, Continuous Show Histograms, Video Captions, Lens Profile, Reset Camera Settings, Others Format SD Card © 2016 DJI. All Rights Reserved.
  • Page 11 : Playback in the DJI GO app or press the Playback Button on the remote controller to review photos and videos that you have captured. Press the same button again to return to capturing images. [10 ] Map Display the flight path of the current flight.
  • Page 12 Find out about our latest events, featured products and trending Skypixel uploads in the Explore page. If you already have a DJI account, you will be able to participate in forum discussions, earn Credits in the DJI Store, and share your artwork with the community ©...
  • Page 13 Flight This chapter describes the flight safety and flight restrictions. © 2016 DJI. All Rights Reserved.

  • Page 14: Flight Environment Requirements

    Max Height & Radius Limits Max Height & Radius limit flying height and distance, and the user may change these settings in the DJI GO App. Once complete, your Inspire 1 Pro will fly in a restricted cylinder that is determined by these settings.
  • Page 15 No-Fly Zones All No-Fly Zones are listed on the DJI official website at http://www.dji.com/flysafe/no-fly. No-Fly Zones are divided into Airports and Restricted Areas. Airports include major airports and flying fields where manned aircraft operate at low altitudes. Restricted Areas include borders between countries or sensitive sites.
  • Page 16 The value of R varies depending on the definition of the Restricted Area. (3) A “warning zone” has been set around each Restricted Area. When the aircraft is within 0.6 miles (1 km) of this zone, a warning message will appear in the DJI GO app. Restricted Areas...
  • Page 17 For safety reasons, please do not fly close to airports, highways, railway stations, railway lines, city centers and other special areas. Try to ensure the aircraft is visible. © 2016 DJI. All Rights Reserved.

  • Page 18: Preflight Checklist

    2. DO NOT carry ferromagnetic materials with you during calibration such as cellular phones. 3. The DJI GO app will prompt you to resolve the compass issue if the compass is affected by strong interference after calibration is complete. Follow the prompted instructions to resolve the compass issue.
