ZENMUSE X5
User Manual
V1.2
2016.05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the zenmuse x5 and is the answer not in the manual?

Questions and answers

Related Manuals for dji zenmuse x5

Summary of Contents for dji zenmuse x5

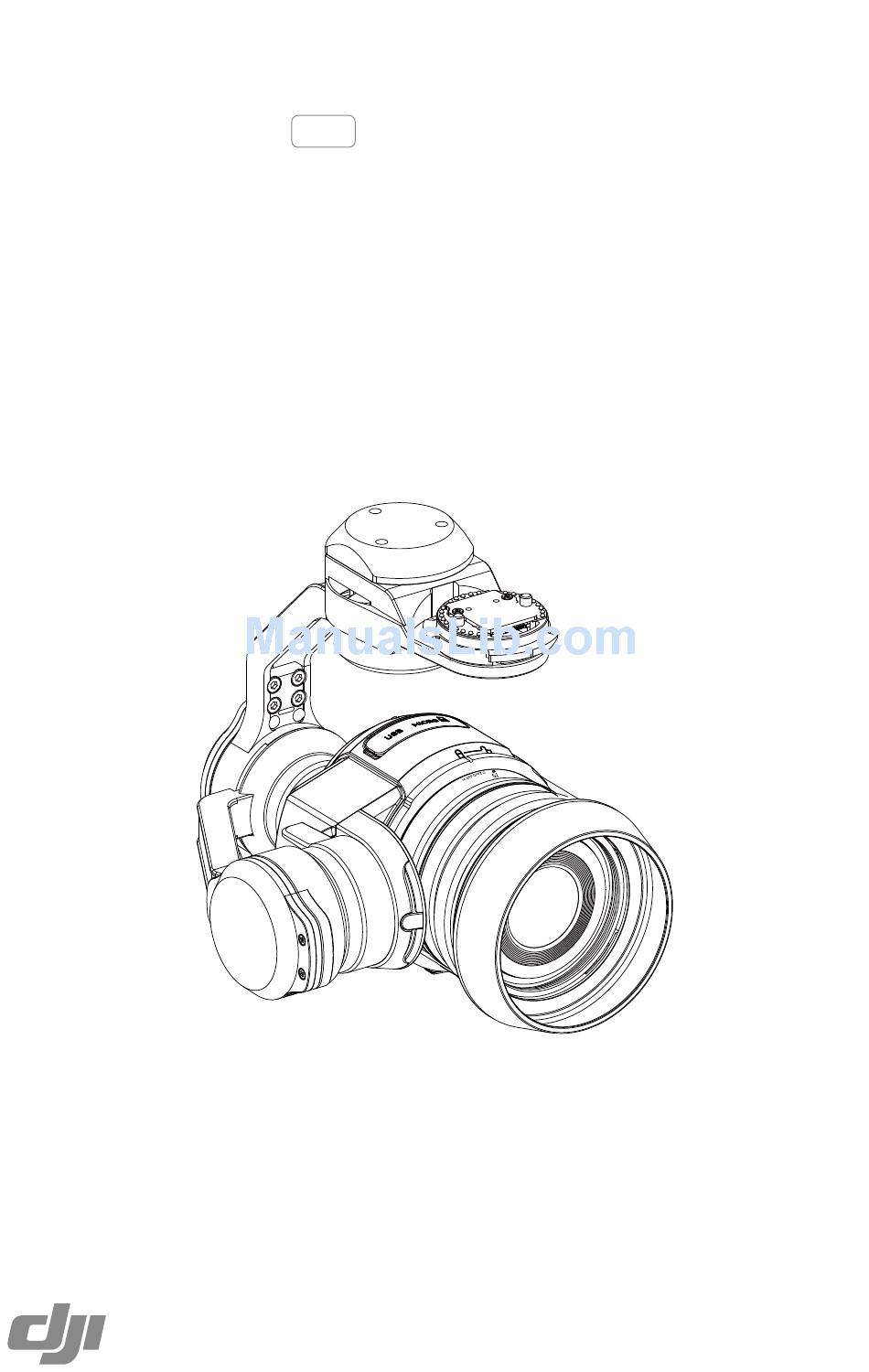

  • Page 1 ZENMUSE X5 User Manual V1.2 2016.05...

  • Page 2: Using This Manual

    Check that all of the items are included in the package. We recommend that you watch all tutorial videos on the official DJI website and read the Disclaimer and Safety Guidelines before you fly. Refer to the User Manual for more detailed information.

  • Page 3: Table Of Contents

    Product Profile Overview In the Box Optional Accessories Components Getting Started Read the information below before setting up your Zenmuse X5 Supported Devices Supported Lenses for the Inspire 1 Required Lens Accessories Supported Micro SD Cards Installing the Camera Lens...

  • Page 4: Product Profile

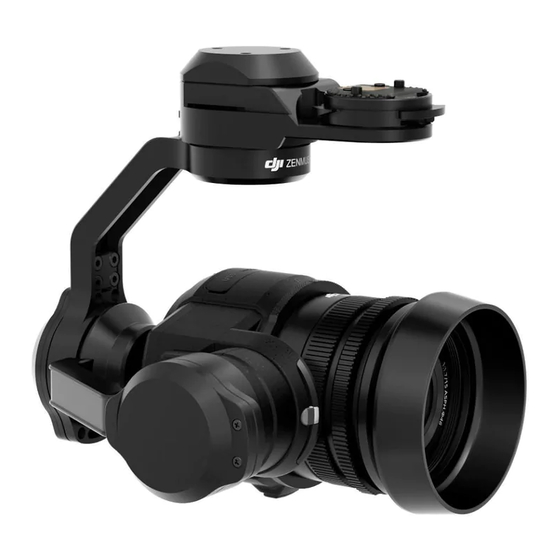

    4K and 16MP still photos. It can be mounted onto designated DJI devices such as the Inspire 1. The Zenmuse X5 lens kit comes with the DJI MFT 15mm f/1.7 ASPH that provides a 72 degree field of view and a manually adjustable f/1.7-f/16 aperture range. The camera can shoot burst, AEB or time-lapse in JPEG and DNG RAW, and output video in MP4 and MOV formats.

  • Page 5: In The Box

    ZENMUSE X5 In the Box ZENMUSE X5 Disclaimer and Safety Guidelines * The original lens, balancing ring and lens hood are only included in the Zenmuse X5 lens kit. Accessories for other supported lenses can be purchased separately on the DJI Store.

  • Page 6: Components

    ZENMUSE X5 User Manual Components Zenmuse X5 Gimbal and Camera Pan Motor Gimbal Connector Micro SD Card Slot/Micro USB Port Roll Motor Lens Lock Lens Mount Index Lens Mount Tilt Motor Lens Release Button Status LED DJI MFT 15mm f/1.7 ASPH Lens...

  • Page 7: Getting Started

    The following table shows the recommended DJI Balancing Ring and filter and lens hood requirement for each lens model. Attach either a DJI Balancing Ring or filter only. Attach a lens hood only if required. The listed Balancing Rings can be purchased on the DJI Store.

  • Page 8: Supported Micro Sd Cards

    The Balancing Ring must be installed on the camera lens when a filter is not used. Supported Micro SD Cards The Zenmuse X5 comes with a 16GB Micro SD card, but also supports Micro SD cards with a capacity of up to 64GB. We recommend using a UHS-1 Micro SD card to minimize the delay when reading and writing high resolution video data.
  • Page 9 It is recommended to wrap a dust cover around the lens to prevent contamination. DJI produces dedicated dust covers for the DJI MFT 15mm f/1.7 ASPH and the Panasonic Lumix G Leica DG Summilux 15mm f/1.7 ASPH. Other lenses may require you to purchase a third-party dust cover.

  • Page 10: Mounting The Zenmuse X5 To The Inspire 1

    ZENMUSE X5 User Manual Mounting the Zenmuse X5 to the Inspire 1 (Watch Video: http://www.dji.com/product/inspire-1/video) Ensure the aircraft is installed with Landing Gear Risers. Replace the Inspire 1 Gimbal Mounting Plate 1. Remove the two black dampers at the front.

  • Page 11: Attach The Zenmuse X5

    -320° -90° + 320° Ground Level DO NOT attach or detach the Zenmuse X5 when the aircraft is powered on. Take off from a flat, open area and protect the gimbal after powering up. © 2016 DJI. All Rights Reserved.

  • Page 12: Operating The Camera

    Operating the Camera Camera Panel All camera operations are done on the Camera Panel in Camera View of the DJI GO app. [1] Menu [2] Photo/Video Switch [3] Shutter/Record Button [4] Playback [5] Settings Always set the camera lens to AF mode. The focus and aperture will be controlled by the DJI GO app digitally.

  • Page 13: Advanced Settings

    ZENMUSE X5 User Manual Advanced Settings Exposure Modes to choose from the following exposure modes: 1. AUTO The shutter speed and aperture are set automatically to obtain the correct exposure. 2. S (Shutter Priority) Set your desired shutter speed, while the camera chooses the aperture automatically. This mode is ideal for freezing action, creating motion blur or low-light shots.

  • Page 14: List Of Settings

    Histograms, Video Captions, Over Exposure Warning, AF Assisted Others Focus, MF Assisted Focus, Lens Profile, Calibration*, Reset Settings, Format SD Card * Be sure to calibrate the camera lens in the DJI GO app for manual zoom to work properly. © 2016 DJI. All Rights Reserved.

  • Page 15: Managing Your Photos And Videos

    ZENMUSE X5 User Manual Managing your Photos and Videos Playback in the DJI GO app or press the Playback Button on the remote controller to review photos and videos that you have captured. Press the same button again to return to capturing images.
  • Page 16 4608x3456 ISO Range 100 to 25600 Electronic Shutter Speed 8 to 1/8000 s Field of View DJI MFT 15mm f/1.7 ASPH 72° Single shot Burst shooting:3/5/7 frames Still Photography Modes Auto Exposure Bracketing (AEB):3/5 bracketed frames at 0.7EV bias Time-lapse UHD:4K (4096×2160) 24/25p, 4K (3840×2160) 24/25/30p,...

  • Page 17: Status Led

    ZENMUSE X5 User Manual Angle of view 72° Max. diameter Approx. 2.26 inches (57.5 mm) Overall length Approx. 1.42 inches (36 mm) Mass 115 g Gimbal Angular Vibration Range ±0.02° Mount Detachable Pitch:-90° to +30° Controllable Range Pan:±320° Pitch:120°/s Max Controllable Speed Pan:180°/s...

  • Page 18: 2016 Dji. All Rights Reserved

    This content is subject to change. Download the latest version from www.dji.com/support If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. © 2016 DJI. All Rights Reserved.
