Discount Car Stereo iP2D-BKR Quick Start Installation Manual

Apple ipod, musicstreaming module for becker aux ready radios
Hide thumbs Also See for iP2D-BKR:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
Courtesy of: DiscountCarStereo.com
Serving the internet community since 1995
iP2D-BKR
QUICK START APPLE iPOD, MUSIC STREAMING MODULE INSTALLATION GUIDE FOR BECKER AUX READY RADIOS
Created October 1, 2015
Revised: July 19, 2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the iP2D-BKR and is the answer not in the manual?

Questions and answers

Related Manuals for Discount Car Stereo iP2D-BKR

Summary of Contents for Discount Car Stereo iP2D-BKR

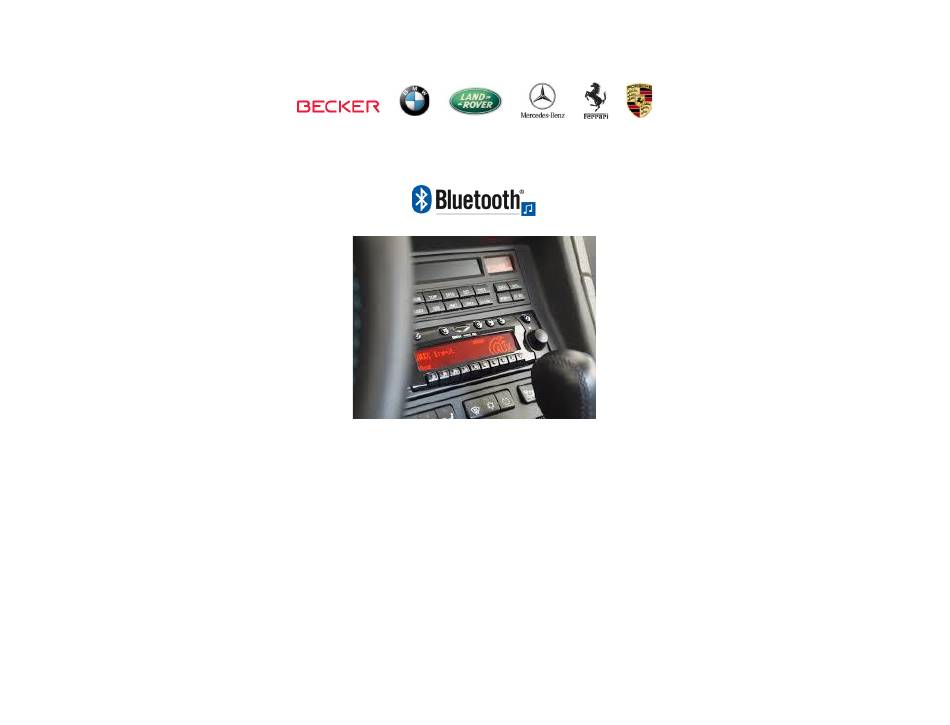

  • Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 iP2D-BKR QUICK START APPLE iPOD, MUSIC STREAMING MODULE INSTALLATION GUIDE FOR BECKER AUX READY RADIOS Created October 1, 2015 Revised: July 19, 2021...

  • Page 2: Installation

    Introduction: The iP2D-BKR module provides the best of both worlds with a dock connector to charge and play Apple 30-pin iPods, iPhones and iPads plus music streaming via Bluetooth from any A2DP capable smartphone, tablet, kindle etc. This module is...
  • Page 3 Fig. 5 power harness Fig. 4b Fig. 4 installation harness 9. Test for engine noise. If present a noise filter (not included) may be 8-pin plug required. Warning: Unlike other European vehicles, the factory power/speaker 5. Connect BLUE plug removed from radio in step 3 to mating BLACK plug in some BMW’s and Mercedes are molded together (See Fig.

  • Page 4: Operation

    Operation: One of the most important steps in this process is enabling the Becker Radio AUX Menu option. Most Becker radios are pre-programmed to recognize a CD Changer connection and because of that you must perform the following steps and change the setting to “AUX” otherwise the radio will not recognize the newly installed adapter.
  • Page 5 Radios with ☼ button: (i.e. BE6104) Nav Traffic Radios Press the "Radio" button to enter Radio mode. Turn radio “ON” Press the "Navi" and "F10" simultaneously 2. Press and hold the ☼ button for about 8 seconds. Press "Next" until the AUX input, Changer Res screen 3.
  • Page 6 Cascade Pro (i.e. BE7941) Becker DTM /High speed (i.e. BE-7892, BE7910) To activate External Device mode Press Sound button for more than 2 seconds Turn radio ON. Press multifunction button “AUX” Press information button Select Aux Mode on Turn rotary control/push (OK) button counterclockwise until System Setting is stored automatically Settings appears at the top right of display Press rotary control/push (OK) button...
  • Page 7 Operation: Optional Smart Remote Turn ignition and radio “ON” Optional smart remote allows users to: 2. Press button assigned to place radio in “AUX” mode Control music wirelessly 3. Set Smartphone or tablet initial volume level to 60% and launch 2.
  • Page 8 Operation: Optional Noise Filter (NF3A) installation If necessary, install filter to module installation harness black plug. (do not cut Use smart remote to perform the following functions on any iOS7.0 and higher factory wires) or Android 4.4 and higher. - If necessary, remove black tape from power harness -locate black and red leads from module to black plug - Cut both red and black wires about 2 inches away from harness black plug (do not cut red or black wires between male and female plugs)

  • Page 9: Frequent Asked Questions

    2. Can I control Smartphone music from radio buttons? you must continue to use device built-in controls and display. 3. Can I pair or save more than one device to the iP2D-BKR? YES; more than one device (slaves) can be paired however only one connection can be active at a time.
