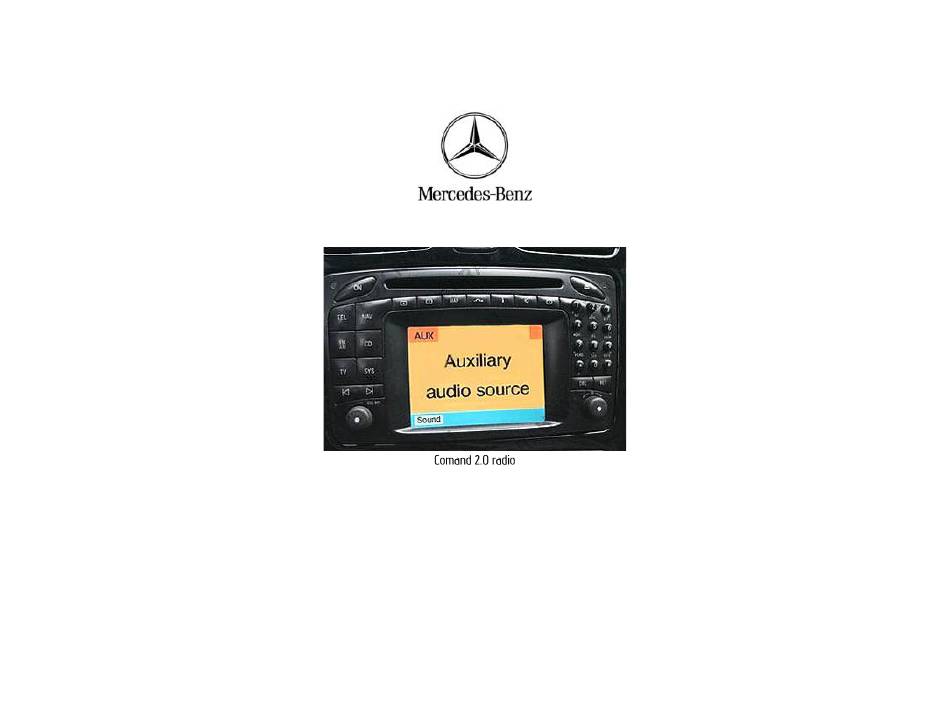

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 IL-CMD QUICK START INSTALLATION GUIDE FOR MERCEDES COMAND 2.0 APS Not for Mercedes: MCS or COMAND 2.5 Created October 10, 2015 Revised September 15, 2021...
-
Page 2: Installation
Apple has removed audio jack Comand radio connectors from recent iOS devices, the factory AUX jack just won’t cut it. Enter the iL-CMD. This adapter replaces factory AUX jack with Apple Lightning plug which plays and charges iOS devices with Lightning connectors including iPhone 5-12, iPod Touch (5G), iPad(4G), iPad Mini(1G), iPad Mini with retina etc. - Page 3 Removing wires from contact carrier Fig. 4 Remove contact carrier from both factory radio plug and that of the IL-CMD. Release pins from contact carrier by straightening (flattening) locking tab (6) using flat screwdriver or similar (7) after which wires can be pulled from contact carrier (8) (See Fig.
-
Page 4: Operation
Operation Connect Lightning plug to Apple device 2. Turn ignition and COMAND2.0 radio “ON” Apple device should beep/vibrate and begin charging 3. Switch COMAND2.0 radio to “AUX” Mode: Turn right hand rotary/pushbutton to highlight “AUX” menu field in main system settings and press to confirm. Alternate: Press SYS button to gain access to AUX IN menu field or Fig. - Page 5 •We recommend professional installation. email support@discountcarstereo.com © 1995-Sep-21 Discount Car Stereo, Inc. All rights reserved. Information in this document is subject to change without Fig. 10 notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
