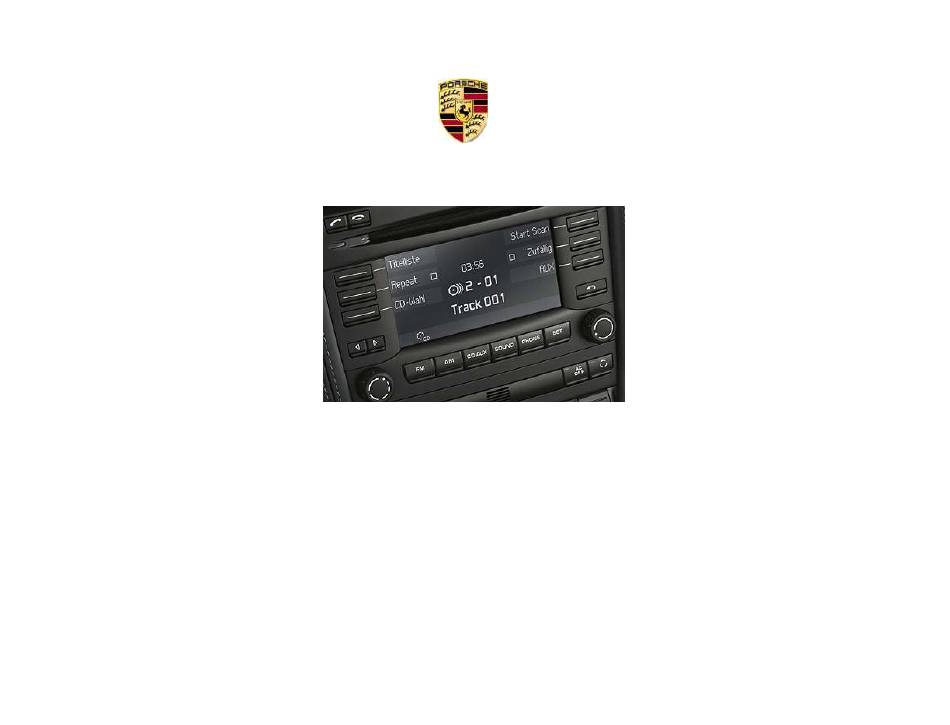

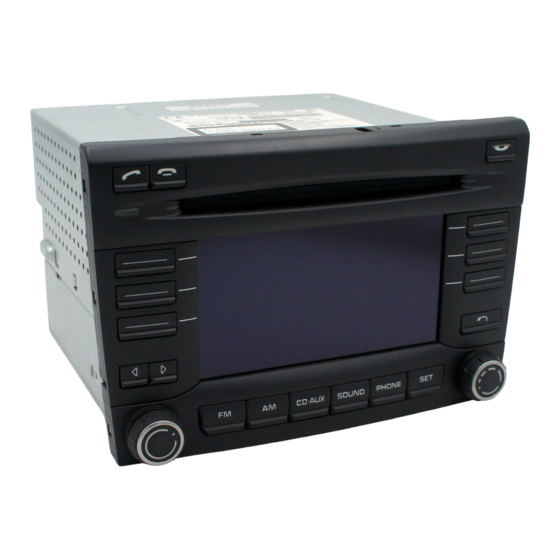

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 IL-CDR30 APPLE LIGHTNING ADAPTER INSTALLATION GUIDE FOR PORSCHE CDR30/31 RADIOS Revised August 30, 2021...
-
Page 2: Installation
Quadlock vacant slot (See Fig.3) The iL-CDR30 users are able to play and charge any Apple Lightning device including the iPhone XR, iPad Pro etc. without sacrificing the look and feel of the dashboard components. - Page 3 Fig. 5 Apple Lightning plug Fig. 3 Note: factory GREEN plug remains disconnected (See Fig. 3) 5. Connect factory Quadlock plug (from step 1) to harness Quadlock connector (To Car in Fig. 4) Fig. 4 Quadlock plug/connector 6. Route Lightning plug (See Fig. 5) to desired mounting location on dashboard, glove box, console etc.
-
Page 4: Optional Remote
Operation: Optional remote Use wireless remote to perform the following functions on iOS7.0 and higher or Android 4.4 and higher. Optional smart remote is not required for operation; however, instead juggling smartphone while driving (which is outright dangerous), simply install in a more convenient place on dashboard or steering wheel to operate your smartphone: (Remote does not apply to the CDR30/31 radio functions) Track up/down... - Page 5 • We recommend professional installation. Email: support@discountcarstereo.com © 1995-21 Discount Car Stereo, Inc. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
