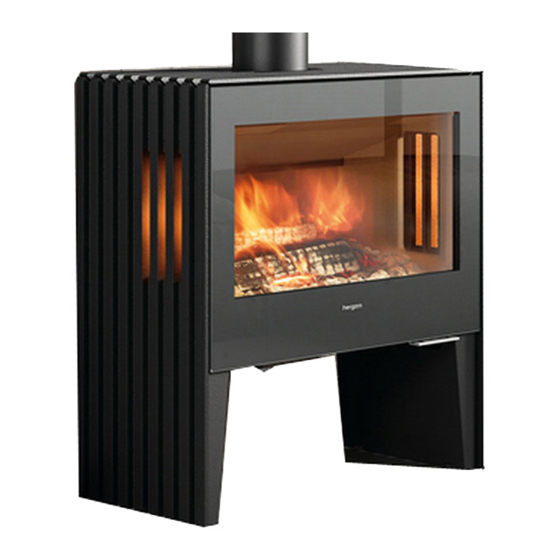

Glance L
Owner's Manual
INSTALLATION, USE AND MAINTENANCE INSTRUCTIONS.
Certified to AS/NZS 4012 :2014 & AS/NZS 4013 :2014
Please read this manual thoroughly before installing and starting your fireplace.
Keep These Instructions for future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Glance L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for hergom Glance L

  • Page 1 Glance L Owner’s Manual INSTALLATION, USE AND MAINTENANCE INSTRUCTIONS. Certified to AS/NZS 4012 :2014 & AS/NZS 4013 :2014 Please read this manual thoroughly before installing and starting your fireplace. Keep These Instructions for future reference.
  • Page 2: Welcome And Important Notes

    WELCOME to the HERGÓM family. We would like to thank you for choosing the Glance L Slow Combustion Wood Heater, which represents, in design and style, a significant improvement on typical wood stoves. Your new Stove is, perhaps, the most advanced solid fuel heating system known today. Owning a HERGOM Stove displays an exceptional sense of quality.
  • Page 3: Table Of Contents

    The surface of your heater is protected by a coating of special high temperature resistant paint, that requires curing. When lighting the fireplace for the first few times, the paint will normally emit some fumes, we therefore recommend ventilating the room well, until the paint is fully cured. Table of Contents Cover Welcome and Important notes …………………………………………………………...
  • Page 4: Warnings

    WARNING: THE APPLIANCE & FLUE SYSTEM SHALL BE INSTALLED IN ACCORDANCE WITH AS/NZS 2918:2018 AND THE APPROPRIATE REQUIREMENTS OF THE RELEVANT BUILDING CODE OR CODES. WARNING: APPLIANCES INSTALLED IN ACCORDANCE WITH THIS STANDARD SHALL COMPLY WITH THE REQUIREMENTS OF AS/NZS 4013:2014 WHERE REQUIRED BY THE REGULATORY AUTHORITY, I.E.
  • Page 5: Introduction

    1 - INTRODUCTION IMPORTANT! All local regulations and standards must be adhered to with regards to installation of this heater and chimney flue. Installation must be carried out by a suitably qualified professional installer. Check with your local authority for clarification. The way the Glance Stove is installed will directly affect safety issues and its correct operation and function.
  • Page 6: Dimensions

    GLANCE LVP – ON BASE FOR BENCH TOP NOTE: MUST BE INSTALLED ON A BENCH MINIMUM 240mm HIGH FOR THE SAME HEARTH REQUIREMENTS The Hearth must continue beneath the bench and the same dimensions in front as the Glance L.
  • Page 7 4 - INSTALLATION The Safety-Clearances in below are only valid for installions with a solid decorative 8” flue shield around the active flue. The second option is with teh additional Rear heat-shield attached to the unit (optional accessory) and the third option also has the additional flue deflector shield included between the first 900mm between the active 6”...
  • Page 8: Safety Clearances And Flue Install

    OUTSIDE AIR CONNECTION • When installing the stove using the outside air connection, we recommend that the installation is performed by qualified personnel. • Always keep in mind that air is entering the stove through the connector. This air inlet can never be blocked.
  • Page 9 Flue Installation The Flue type required: 150mm (6”) active flue and a solid 8” heat shield within the room, and air cooled Double casing insulation (triple skin) from above the ceiling, as per AS2918:2018 default flue kit. See diagrams below for flue requirements. The Active stainless-steel flue must be a tight fit into the heater collar.
  • Page 10 External Requirements Refer to AS/NZS 2918:2018 Note: All external air vents & ceiling penetrations must be bird & rodent proofed with permanently fixed screens...
  • Page 11: Heatshield Installation For Rear Clearance

    5 - Heat Shield Instructions For Rear Clearance to Combustible Wall Note that the heater will either come with the heatshield fitted, or will need to be fitted as per the manual supplied with the heat shield. The Heatshield is fitted to the heater by using 3 of the upper existing screws in the rear of the heater, the ones that align with the heatshield.
  • Page 12 Air Control Handle: These are located below the door on the left hand side (Fig.3). When lighting the heater have the control pushed all the way to the right. Once the fire is alight and a good ash bed has been built up, adjust the valve to the left to prevent excessive air intake, which will cause excessive combustion levels and temperatures.
  • Page 13: Air Control The Burn How To Control The Burn 8. How To Light Your Fire

    8 - LIGHTING THE FIRE Important Note: When first lighting the fire there may be some moisture in the stove, produced by the humidity of the environment where the stove was stored. It is very important that the first time the heater is lit, it is done so slowly. This is for the following reasons: •...
  • Page 14: Maintenance 9. Cleaning Out The Ash

    9 - CLEANING & MAINTENANCE Your heater is a device that is subjected to extreme temperatures and to the corrosive effects of combustion residual materials. Regular maintenance is essential for a longer life and improved user experience. We recommend performing the following inspections frequently: DURING THE SEASON •...
  • Page 15: Safety

    MAINTENANCE PRODUCTS Castworks supplies a range of products for the preservation of your heater and chimney at your disposal: heat resistant paint, refractory putty, anti-soot products, firelighters, glass cleaning products. 10 - SAFETY WARNING! Gas/log/pellet units get hot when in use. Consequently, owners must act with precaution and keep at a distance.
  • Page 16: Specifications

    11 – TECHNICAL SPECIFICATIONS Glance L Maximum Average Power (kW) Average Peak Power (kW) 10.0 Average Efficiency (%) (Note Maximum efficiency on low burn 67%) Average Emmissions ( Particulates g/kg) Maximum log size (mm) Flue Diameter (Ø) 150 (6”) Minimum Chimney height (m) from Hearth 4.6m...
  • Page 17: Exploded Parts Diagram

    12 - EXPLODED PARTS VIEW Part number on Drawing referenced in Table below, for ordering purposes. Note 6 different drawings total.
  • Page 19 B – DOOR C – SIDE PANELS D – LEGS E – TOP PANELS F – REAR SHIELD...
  • Page 20: Parts List

    13 - SPARE PARTS LIST We recommend only using spare parts recommended by the manufacturer.
  • Page 21: Warranty

    Warranty: Hergom offers the purchaser of this appliance a limited 5-year warranty against manufacturing defects from the date of purchase: Fireplace firebox...
  • Page 22 15 – APPLIANCE DATA LABEL Appliance Data label: MODEL – GLANCE L SERIAL NO: TESTED BY TEST REPORT NO AUSTRALIA SOLID FUEL TESTING ASFT18053 3 GARDEN STREET MORWELL DATED: 04/06/2018 VIC 3840 AUSTRALIA WHEN TESTED IN ACCORDANCE WITH AS/NZS4012:2014 & AS/NZS4013:2014 MAXIMUM AVERAGE HEAT OUTPUT BURNING HARDWOOD 6.6kW...
