- Page 1 HPSBOC 2512B v.1.1 HPSBOC 13,8V/2A/7Ah/OC Buffer switch mode power supply unit with technical outputs. Edition: 9 from 01.03.2018 Supercedes edition: 8 from 01.06.2016...
-
Page 2: Table Of Contents
GREEN POWER plus www.pulsar.pl HPSBOC2512B Features: DC 13,8V/2A uninterruptible power supply* EPS technical output indicating AC power loss – OC and relay type fitting battery: 7Ah/12V wide range of mains supply: 176÷264V PSU technical output indicating PSU failure –... -
Page 3: Block Diagram

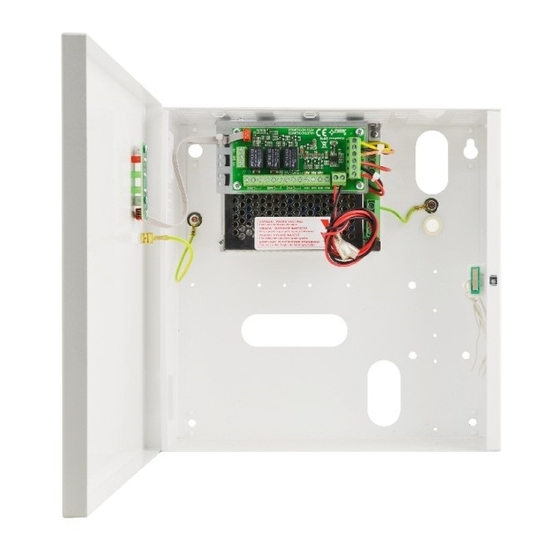

GREEN POWER plus www.pulsar.pl HPSBOC2512B 1.2 Block diagram (fig.1). Fig.1. The block diagram of the PSU. 1.3 Description of the module’s components and connectors (tab.1, fig.2). Table 1. Elements of the PSU (see fig.2). Element no. Description LED indicating presence of AC power... - Page 4 GREEN POWER plus www.pulsar.pl HPSBOC2512B Fig. 2. The view of the PSU. Description of PSU components and connectors (tab.2, fig. 3). Element no. Description [Fig. 3] PSU module TAMPER, contact, sabotage protection (NC) Tab.2. The components of the PSU. Fig.3. The view of the PSU.
-
Page 5: Specifications
GREEN POWER plus www.pulsar.pl HPSBOC2512B 1.4 Specifications: - electrical parameters (tab.3) - mechanical parameters (tab.4) - operation safety (tab.5) - operating parameters (tab.6) Electrical parameters (tab. 3) 176÷264V AC Mains supply Current up to 0,45A@230VAC Supply power 35W max. Efficiency 11V ÷... -
Page 6: Installation
GREEN POWER plus www.pulsar.pl HPSBOC2512B Mechanical parameters (tab. 4) Dimensions W=250, H=250, D+D =82+8 [+/- 2mm] =255, H =255 [+/- 2mm] The dimensions of the 160x100x75mm (WxHxD) max battery compartment Fixation See figure 2 Net/gross weight 1,8kg / 2,0kg Enclosure... -
Page 7: Installation Procedure
GREEN POWER plus www.pulsar.pl HPSBOC2512B Before installation, prepare a PSU load balance. During normal operation, the total current drawn by the device may not exceed I = 2A . Maximum battery charge current: 0,5A . Total device current + battery: 2,5A max As the PSU is designed for a continuous operation and is not equipped with a power-switch, therefore an appropriate overload protection shall be guaranteed in the power supply circuit. -
Page 8: Technical Outputs
GREEN POWER plus www.pulsar.pl HPSBOC2512B 3.2 Technical outputs The PSU has indication outputs: EPS - absence of AC supply output: - OC type output that indicates AC power loss. Under normal status, with 230V AC supply, the output is connected to ground (L level –... -
Page 9: Operation And Use
GREEN POWER plus www.pulsar.pl HPSBOC2512B 4. Operation and use. 4.1 Overload or short circuit of the PSU output (SCP on). In case of overload, the output voltage is automatically shut off, and so is the LED indicator. The restoration of the voltage takes place immediately after the failure (overload) is over. - Page 10 The power supply unit is adapted for a sealed lead-acid battery (SLA). After the operation period it must not be disposed of but recycled according to the applicable law. Pulsar sp. j. Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl,...
