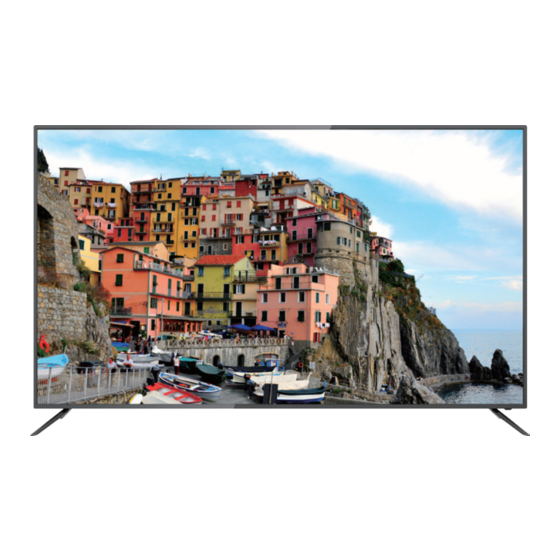

75" 4K Ultra High Definition LED LCD TV
Model number: ATV75UHD-1117
GETTING STARTED GUIDE
1

PARTS LIST

In the box you will find:
1 x 75" 4K Ultra High
Definition LED LCD TV
1 x Remote Control
2 x AAA Activ Energy
Batteries

WHAT YOU WILL NEED:

Phillips head screwdriver (for stand installation)
Antenna cable
2

CONNECTIONS

1 Power Cord
2 Optical Digital Audio Output
3 L/R Stereo Audio Inputs
4 CVBS Input (Composite Video)
5 Y/Pb/Pr Input (Component
Video)
6 Line Out (Audio)
7 HDMI 1/2/3/4 Inputs
8 Antenna Input
9 USB Input
3

INSTALLATION AND POWER CONNECTION

1 Install the stand (see page 6 of the instruction
manual).
2 Connect the antenna cable to the Antenna socket of
the TV.
3 Insert the batteries into the remote control.
4 Connect the TV power cord into the mains power
socket and switch it on.
5 Press the
the power to the unit. The standby light will turn blue
and the TV screen will display the initial setup.
4

REMOTE CONTROL

• Information on all remote control functions can be found on pages
iii-iv of the Instruction Manual.
• Always point the remote control transmitter directly at the TV.
1 x Composite AV Cable
2 x Stand Bases (including
screws)
1 x Instruction Manual
1 x Getting Started Guide
1 x Warranty Card
button on the remote control to turn on
1
2
3
6
4
5
7
8
9
Transmitter
7
