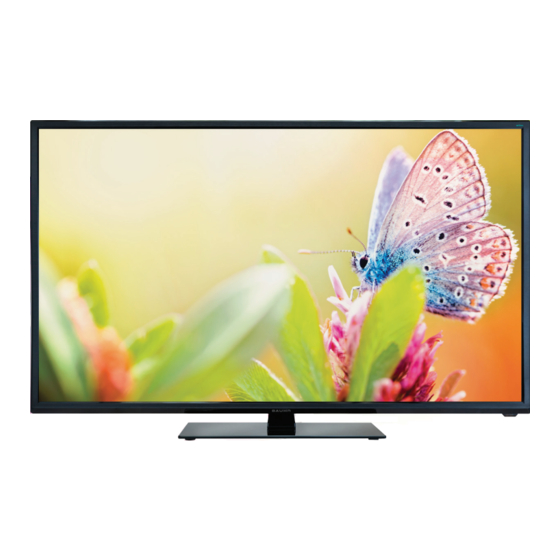

40" (101cm) Full HD LED LCD TV
Model Number: ATV40-014
INSTRUCTION MANUAL
AFTER SALES SUPPORT
www.tempo.org
Model: ATV40-014 Product Code: 48436 11/2014
AUS
1300 886 649

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATV40-014 and is the answer not in the manual?

Questions and answers

Related Manuals for Bauhn ATV40-014

Summary of Contents for Bauhn ATV40-014

  • Page 1 40” (101cm) Full HD LED LCD TV Model Number: ATV40-014 INSTRUCTION MANUAL AFTER SALES SUPPORT www.tempo.org Model: ATV40-014 Product Code: 48436 11/2014 1300 886 649...
  • Page 2 Welcome Congratulations on choosing to buy a BAUHN product. All products ® brought to you by BAUHN are manufactured to the highest standards ® of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty.
  • Page 3 19 LANG/AUDIO: Switch the available sound-track language (DTV/DVD). 20 PMODE: Cycle through the different picture modes. 21 S.MODE: Cycle through the different Note: TV doesn’t support DVD functions. sound modes. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 4 However, one teletext option, “closed captions”, is still working on most Australian television channels. This service allows you to activate subtitles while watching normal television programs that provide it. Note: TV doesn’t support DVD functions. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 5 • Keep batteries away from children and pets. • Never throw batteries into a fire or expose them to fire or other sources of extreme heat. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 6 • Do not place objects between the remote control and the remote control sensor. • Do not use this remote control while simultaneously operating a remote control of other devices. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 7 You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 8 Remote Control Welcome General Safety Instructions Installation Controls and Connections Getting Started Basic Operations Electronic Program Guide (EPG) Recording USB Mode Menus FAQs Specifications Repair and Refurbished Goods or Parts Notice www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 9 Doing so may cause a fire or an electric shock. Do not run the power cord near heat-producing appliances such as radiators, stoves or irons. The excessive heat could melt the insulation and expose live wires, resulting in fire or electric shock. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 10 If the temperature inside the unit rises, it may result in fire. Do not cover the ventilation openings with items such as newspapers, tablecloths, curtains etc. as this could impede ventilation. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 11 • Children: Supervise young children to ensure they do not play with the TV. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 12 TV, when the TV has been exposed to rain or moisture, does not operate normally, or has been dropped. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 13 • Make sure that the screws are fastened completely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) • Do not fasten the screws with excessive force, otherwise they may wear out and loosen. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 14 NOTE: The screws in the package are for securing the TV stand only. If you are wall-mounting the TV, please consult a qualified installer for further instructions on bracket support and wall support. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 15 6. MENU: Enter the settings menu 7. SOURCE: Select the input source 8. STANDBY: Turn the TV on/off NOTE: See page 8 for a detailed description of all sockets on the back panel. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 16 3 YPbPr (Component) Input 4 PC Audio Input 5 PC (VGA) Input 6 Antenna Input 7 Headphones Output 8 HDMI Input 1, 2,3 9 USB Input 10 Coaxial S/PDIF Output www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 17 Connecting an external antenna For best picture quality, we recommend connecting the TV set to an external antenna. Antenna Outdoor antenna amplifier Indoor antenna amplifier 75Ω Power plug antenna of antenna plug amplifier www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 18 CVBS (yellow) cable to connect the unit with other devices. HDMI connection HDMI cable (not included) Use HDMI cable to connect the unit with other devices to receive high-definition multimedia signal. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 19 Coaxial (S/PDIF) connection Use a coaxial cable to connect the unit with an amplifier or other audio decoding device for coaxial audio signal output. (Coaxial cable is not included) www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 20 Controls and Connections (Cont.) Component (YPbPr) connection YPbPr cable (not included) Audio cable (not included) www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 21 USB connection Insert a USB memory device into the USB port for PVR recording, time-shifting and playback of video/music/photo multimedia files. USB device (not included) Earphone connection EARPHONE cable (not included) www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 22 • To exit channel tuning, press the EXIT button and use the / buttons to select YES; select NO to continue tuning. • When auto searching is complete, your TV will show the first channel found. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 23 • Press the AUDIO button repeatedly to select the desired audio language. NOTE: The channel you are watching must support multi-audio languages. Information display • Press the DISPLAY button to display information about the current program. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 24 NOTE: The channel you are watching must support multi-subtitles. Freeze • During normal playback, press the FREEZE button on the remote control to hold the picture, press it again to resume normal playback. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 25 • Press the button to schedule a recording for the selected program. RECORD • Press the OK button to display full program information. • Press EXIT to exit the EPG menu. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 26 Scheduled Recording (in DTV mode only) See instructions under EPG on the previous page or press the INDEX button, select Schedule Recording and follow the instructions on page 35. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 27 Yes to exit time-shift mode and return to live TV signal, or select No to dismiss the dialogue box. NOTE: The USB storage device will not retain recorded data after exiting the time-shift function www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 28 • Ensure any USB devices connected to the TV do not use/exceed 500mA power rating. • If an “Unsupported File” message is displayed, the file format or codec is unsupported or corrupted. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 29 • Interval Time: Set the slide show interval time. • Repeat: Select the repeat mode. • Slide Show Effect: Select the slide show effect. • Background Music: Turn on/off background music. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 30 • Press the BLUE button on the remote control to display the Quick Menu, press it again to dismiss the menu. Repeat: Select the repeat mode. Background Music: Turn on/off background music. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 31 • Press the button to play the next file. NOTE: To play your multimedia files, make sure you have selected the correct icon in the main media playback menu. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 32 NOTE: When you switch on this TV for the first time, you need to select the language and the country to auto-search for all the available channels in your area. See page 14 for first time installation instructions. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 33 Advanced Settings: NR (Noise Reduction): Available options: Off, Weak, Medium, Strong. MPEG NR (MPEG Noise Reduction): Available options: Off, Weak, Medium, Strong. Dynamic Contrast: Available options: Off, Weak, Medium, Strong www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 34 (for people with vision impairments). Sound Type : Use this item to select the desired sound Type. Available options: Stereo, Dual I, Dual II, Mixed. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 35 Sound System: Select the sound system. AFC: Turn on/off automatic fine tuning. Start: Start scanning. NOTE: Colour System, Sound System and AFC can only be adjusted if there is a signal. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 36 Use the / buttons to select the preferred position, then press the BLUE button again to move the channel. Signal Information This item is used to display signal details, such as Channel Number, Frequency, Quality and Strength. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 37 No Block, Block G+, Block PG+, Block M+, Block MA+, Block AV+, Block R+, Block All+. Lock Keyboard • Use this item to turn on/off the key lock on this unit. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 38 • Input your new password using the number buttons on the remote control and confirm it again to set your private password. Clear Lock • Use this item to clear your current lock settings. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 39 OSD Time: This item is used to select desired OSD menu duration. Available options: Off, 10/20/30/60 seconds. Sleep Timer: This item is used to adjust the Sleep Timer. Available options: Off, 5/15/30/60/90/120/240 minutes. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 40 Electronic Control). ARC: This item is used to turn on/off Audio Return Channel. When ARC is on, the TV can return the audio to the connected HDMI device (amplifier, etc.). www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 41 • Option: Display the Option menu of the connected CEC device. • Content: Display the Content menu of the connected CEC device. Device List: This item is used to display the available device that connected. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 42 • In this item you can check the available space and file system of your memory device connected to USB port. • Press the RED button on the remote control to format your USB memory device. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 43 This item is used to recall the First Time Setup page (see page 14 for details). Reset This item is used to reset to factory default settings. Software Update (USB) This item is used to update software through USB memory device. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 44 Use this item to adjust the signal transfer speed from -30 to +30. NOTE: For other menu operations in PC mode, please refer to the menu operations of DTV mode. NOTE: A signal must be connected in order to change these settings. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 45 (music/movie players with HDD) on the market; however, it may not be compatible with certain devices, in particular external self-powered hard disks. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 46 927(W) × 209 (D) × 586 (H) mm Measurements (mm) Without Stand 927 (W) × 90 (D) × 544 (H) mm With Stand 8.9 Kg Weight Without Stand 7.6 Kg www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 47 Tempo (Aust) Pty Ltd ABN 70 106 100 252 PO BOX 6056 Frenchs Forest, Sydney, Australia NSW 2086 Tempo Help Desk: 1300 886 649 (Aust) (Operating Hours: Mon-Fri 08:30AM to 06:00PM EST) Email: info@tempo.org www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
  • Page 48 If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on 1300 886 649 before returning it to the store for a refund. www.tempo.org 1300 886 649 Model: ATV40-014 Product Code: 48436 11/2014...
