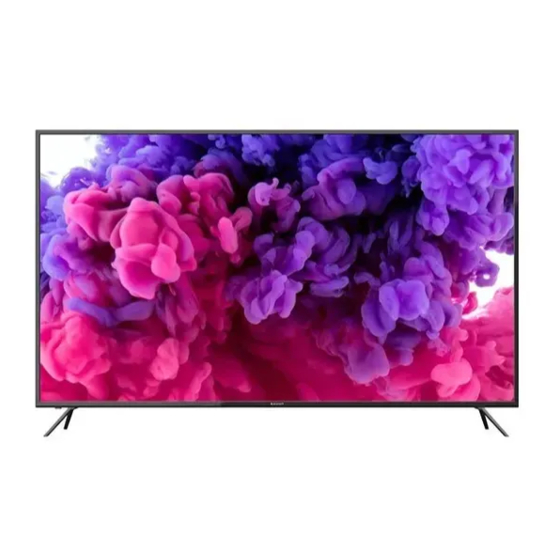

Bauhn ATV65UHD-0420 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

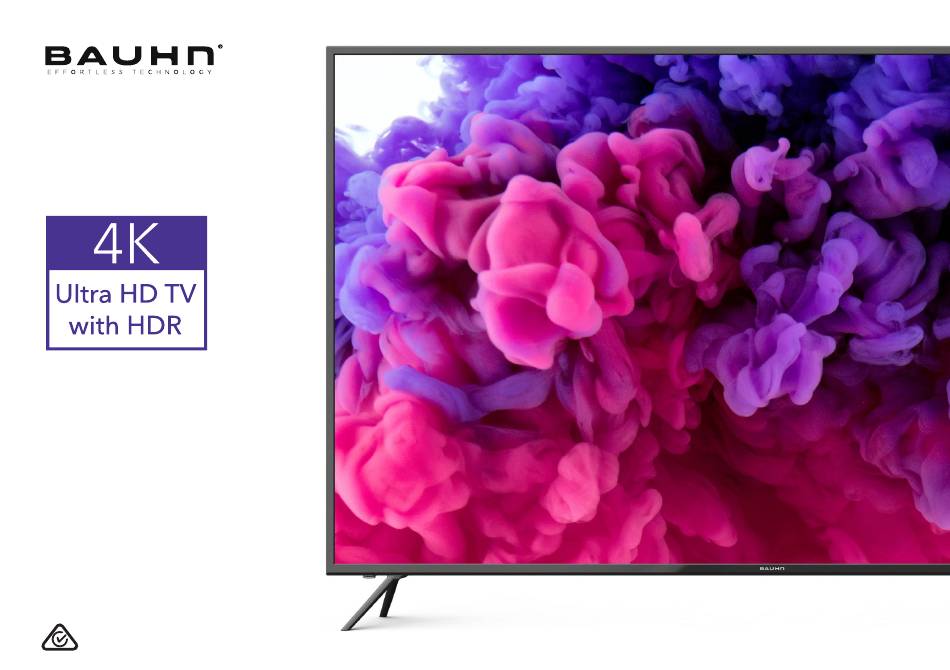

65
"
MODEL: ATV65UHD-0420
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATV65UHD-0420 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bauhn ATV65UHD-0420

Summary of Contents for Bauhn ATV65UHD-0420

  • Page 1 ” MODEL: ATV65UHD-0420 User Manual...

  • Page 2: Welcome

    Welcome Congratulations on your purchase! This manual tells you all you need to know about using your new BAUHN product. ® Please take special note of any important safety and usage information presented with the symbol. All products brought to you by BAUHN are manufactured to the highest standards of performance and safety and, ®...

  • Page 3: Table Of Contents

    Contents Welcome On-Screen Set Up Troubleshooting Unpack and Prepare TV Setting Menus Specifications What's in the box Channel Compliance and Picture Responsible Disposal Important Tips Sound Attaching the stand Warranty Information Time Wall-mounting the TV Repair and Refurbished Lock Connect to power Goods or Parts Notice Option Connect your antenna...

  • Page 4: Unpack And Prepare

    Unpack and Prepare What's in the box See the box flap for how Before installing your new TV, check you have everything needed. to handle the TV without damaging it! In the box you will find: A. 65"4K Ultra HD TV with HDR B.

  • Page 5: Important Tips

    Important Tips • Place the TV on a level surface. • Place the TV away from any source that may generate heat or vibrations. • Make sure there is enough space around vents for airflow. • The remote control works up to 6 metres away from the TV. •...

  • Page 6: Attaching The Stand

    Attaching the stand • This TV is heavy! We recommend asking someone to help you lift it. • Unplug the TV from the power outlet before installing or removing the stand. • Only touch the frame, not the screen. • It is highly recommended to use safety straps for securing the TV.

  • Page 7: Wall-Mounting The Tv

    Wall-mounting the TV • Unplug the TV from the power outlet before wall-mounting. • Contact a professional for assistance with wall-mounting the TV. Required 400mm • VESA Mounting Bracket • 4 x M6*12mm screws (or longer as required) The TV comes with holes on the back panel for use with wall-mounting brackets (bracket not included).

  • Page 8: Connect To Power

    Connect to power Don't forget to plug in the TV to the power outlet. Leave the power switched off until installation is finished. Make sure the TV is switched off at the power outlet Image is an example only. Plug on your TV may vary. until you have finished connecting your cables.

  • Page 9: Controls And Connections

    Controls and Connections Get to know your TV On/Standby light and Remote sensor Buttons on the TV VOL+ 1. VOL + : Increase the volume level. VOL- 2. VOL - : Decrease the volume level. 3. CH + : Select the next channel. 4.

  • Page 10: Ports On The Tv

    Ports on the TV HDMI All-digital connection between the TV and any HDMI device. Use a high-speed Supports Ultra HD resolution. Requires a high-speed HDMI cable HDMI cable for best picture and (not included). sound quality. ANTENNA Connect your antenna for live TV. (Antenna cable not included). •...
  • Page 11 Headphone Connect to your headphones, amplifier, soundbar or audio device, Jack using an AUX cable (not included). DIGITAL Connect an external digital audio device. Use an Optical cable (not AUDIO OUT included) to connect the TV with an amplifier, soundbar or other audio decoding device for digital audio signal output.

  • Page 12: Remote Control

    Remote Control Setup Insert two AAA size batteries according to the polarity markings (+ / -) inside the compartment. Make sure the batteries are correctly aligned and properly pushed into AAA size place. batteries included Precautions When Using Batteries • Do not use old and new batteries together. •...

  • Page 13: Using The Remote Control

    Using the Remote Control To use the remote, point it towards the remote sensor at the front of the TV. The remote will not operate if its path is blocked. The remote has a range of up to about 6 metres from Remote Hints and Tips the TV at an angle of up to 30 degrees to either side of the sensor, as illustrated below.

  • Page 14: Standard Remote

    Standard Remote : Switch the TV to On or Standby /GOTO: Jump to a different chapter of the DVD* TV/RADIO/EJECT: Switch between TV or radio in DTV mode / Eject a disc (DVD)* /ANGLE: View DVD playback from different angles, if the DVD has this feature* /A-B: Repeat selected DVD scenes* FAV: Press to display your favourite program in DTV /REPEAT: Repeat playback of a selected...
  • Page 15 SOURCE: Switch the input source /MUTE: Mute the sound. Press again or press VOL+ to restore the sound D.MENU/GUIDE: Launch the TV Guide (DTV) VOL +/-: Turn the volume up/down CH +/-: Change to the next or previous channel DISPLAY: Display information of the current program : Return to the previous channel NUMBER BUTTONS (0-9): Press to select a...

  • Page 16: Easy Remote

    Easy Remote (SOURCE): Switch the input source (POWER): Switch the TV to On OK: Confirm your selection. or Standby Display the channels list (DTV) : Press the UP/ (EXIT): Exit from the main TV MENU DOWN/LEFT/RIGHT buttons to menu displayed on the screen navigate INFO : Go to the next or...

  • Page 17: On-Screen Set Up

    On-Screen Set Up Image is an example only. Plug may vary. Make sure equipment is properly connected (as shown on pages 10-11) before connecting the TV to power. Make sure the TV is plugged in at the power socket and switched on.

  • Page 18: Tv Setting Menus

    TV Setting Menus Menu Navigation Buttons Press the MENU button to display the TV settings menu. See the guide below for all the other buttons you'll need Once you have programmed any to use to adjust and change your settings. settings, the TV will retain them in its memory until you change them, even after turning the TV off.
  • Page 19 Picture Time Option • Picture Mode • Clock • System Language • Personal Mode Settings: • Time Zone • Audio Language • Contrast, Brightness, Saturation, • Off Time • Subtitle Language Tint, Sharpness • On Time • Hearing Impaired • Picture Settings: Colour Temp, •...

  • Page 20: Channel

    Channel Option Description Automatically tune all available free-to-air TV channels. Adjust settings (default settings are set for Auto Tuning Australia). Press OK to start scanning. Manually select and tune analog TV channels. (Analog TV is no longer supported in Australia). Current channel: Press the buttons to select the channel number to save the tuned signal.
  • Page 21 Channel Edit Use the buttons to highlight a channel. Option Description Delete Press RED to delete the highlighted channel. Skip Press BLUE to skip the highlighted channel. Favourite Press to add the channel to the Favourites list. TV SETTING MENUS | 21...

  • Page 22: Picture

    Picture Picture Mode Original (default): Basic picture suitable for home use, with reduced power consumption. Home Images are for reference only. : Enhanced brightness, contrast, colour depth and edges for standing out in Dynamic very bright places such as storefronts. : Picture with enhanced brightness for bright home environments.
  • Page 23 Picture Settings Option Description Colour Temp Adjust the on-screen colour temperature. Noise Reduces picture noise to improve picture quality. Reduction HDMI Mode Adjusts HDMI input mode to best suit your device. Select the screen size. Depending on the input signal, the available Aspect Ratio screen sizes may be different.

  • Page 24: Sound

    Sound Option Description Sound Mode Select preset sound modes. Treble Adjust the levels of higher pitched sounds (adjustable when in personal mode). Bass Adjust the levels of lower pitched sounds (adjustable when in personal mode). Balance Adjust the audio output between the left and right speakers. Auto Volume Turn On to keep the volume level consistent.

  • Page 25: Time

    Time Option Description Clock Displays time values from the TV broadcast signal. (Not user adjustable). Time Zone Select your timezone. Off Time Set the time and frequency for the TV to go into standby mode. Set the time, frequency, channel and volume level for the TV to turn on. On Time Note: The TV must be in standby mode to turn on.

  • Page 26: Lock

    Lock 0000 Factory Password: Enter the factory password '0000' using the number buttons on the remote and select 'OK' on-screen. If you changed your 4711 Master Password: password but forgot it, you can still use the master password. Option Description Lock System Enable/disable the lock on the system.
  • Page 27 Hotel Mode Option Description Hotel Mode Turn On/Off Hotel Mode. Source Lock Turn On/Off the lock on available sources. Default Source Set a default input source. Default Prog Set the default program. Default Volume Set the default volume level. Max Volume Set a limit to the maximum volume level.
  • Page 28 Option Option Description System Language Select your preferred On Screen Display language. Audio Language Select your preferred audio language. (Available for digital channels, depending on the program). Subtitle Language Select the language for subtitles (available for digital channels, depending on the program). Turn On or Off.
  • Page 29 PVR File System To make changes to PVR (Personal Video Recording), ensure your USB drive is inserted into the TV. Check the troubleshooting section if you're having problems setting up your USB device. Option Description Select Disk Select the USB drive. Check PVR File System Check the health of the USB drive file system.
  • Page 30 HDMI CEC Setup This feature allows for your TV and your connected HDMI device to be controlled by one remote. Press the SOURCE button on the TV or remote control to select the HDMI input source. Option Description HDMI CEC (Consumer Electronics Turn HDMI CEC On/Off.

  • Page 31: Tv Guide

    TV Guide (Free to air TV) TV Guide Functions To access the TV guide, Function Remote Button press the D.MENU/ GUIDE button on the Move between columns. remote. To activate the TV Select a channel or program. Channels use the buttons to select View TV Guide for the next day.

  • Page 32: Recording

    Recording Important Tips: • Back-up your personal data before plugging in your USB to the TV. We do not assume liability for any loss of data due to misuse or malfunction. • You cannot change channels while in recording mode. •...

  • Page 33: Recording Live Tv

    Recording, scheduled recording and pause Before you can record with this TV (including time-shift recording), you must live TV functions only work in DTV mode insert your USB storage device into the (free-to-air). USB port. Recording Live TV SOURCE Instant Recording Press once - start recording.

  • Page 34: Pause Live Tv (Time-Shift)

    Pause Live TV (Time-shift) Recording, scheduled recording and pause live TV functions only work in DTV mode Temporarily pause the live TV signal, then resume (free-to-air). playback at your convenience. Before you can record with this TV SOURCE (including time-shift recording), you must insert your USB storage device into the USB port.

  • Page 35: Usb Mode

    USB Mode You can only display Photos in the Photo category, Music in the Music category and so on. Make sure you select the correct category for the file you wish to play. Set up Function Remote Button Insert your USB into a USB port on the TV. Press the SOURCE button to select 'USB' mode or press Navigate media categories and file system the MEDIA button on the remote.
  • Page 36 Playback Functions Music Function Remote Button Playback of different media types have different controls. Navigate to a folder or file Photo Play a track Function Remote Button Navigate to a folder or file Rewind or fast forward the current track Display a photo Restart or skip the current track Hide or display the on-screen...
  • Page 37 Video Text Function Remote Button Function Remote Button Navigate to a folder or file Navigate to a folder or file Play a video Open the text file Pause the video Navigate to the previous/next page Resume playback Return to the file list Stop playback Rewind or fast forward the current track...

  • Page 38: Troubleshooting

    Troubleshooting If you experience problems with your TV, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 886 649. Problem Solution • Check the power outlet is turned on. • If using a multi-outlet, check if it is working properly. To check whether a power strip is working properly, plug No power the TV’s power plug directly to a wall outlet and make sure the white indicator light on the TV is lit.
  • Page 39 Problem Solution • Ensure that all equipment is connected properly. If you are using an external device, turn it off, then turn it on again. If it says there is no signal on the screen, choose the correct source input. •...
  • Page 40 Problems relating to your USB media storage device Problem Solution • First, refer to the instructions describing how to use USB devices with this TV. • If the problem still occurs, your USB device may not be compatible. My TV does not •...

  • Page 41: Specifications

    Specifications Active screen size With stand: 1460 x 250 163.9cm (diagonal) x 916 mm Dimensions (W x D x H) Resolution 3840 x 2160 Without stand: 1460 x 96 x 843 mm Aspect ratio 16:9 Net (with 16.43kg Refresh rate 60Hz stand) Weight...

  • Page 42: Compliance And Responsible Disposal

    Compliance and Responsible Disposal Packaging The packaging of your product has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can National Television and Computer Recycling be a suffocation hazard for babies and young children, please ensure all packaging materials are out of Scheme reach and are safely disposed of.

  • Page 43: Warranty Information

    Warranty Information Warranty Information The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour.

  • Page 44: Repair And Refurbished

    Repair and Refurbished Goods or Parts Notice Unfortunately, sometimes faulty products are manufactured, which need to be returned to the supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost.
  • Page 45 Notes...
  • Page 46 Notes...
  • Page 47 Notes...
  • Page 48 Online support Visit www.bauhn.com.au for software updates to keep your TV up-to-date, as well as the latest User Manual for information on the updated features. Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product.
