Summary of Contents for dji RONIN 4D

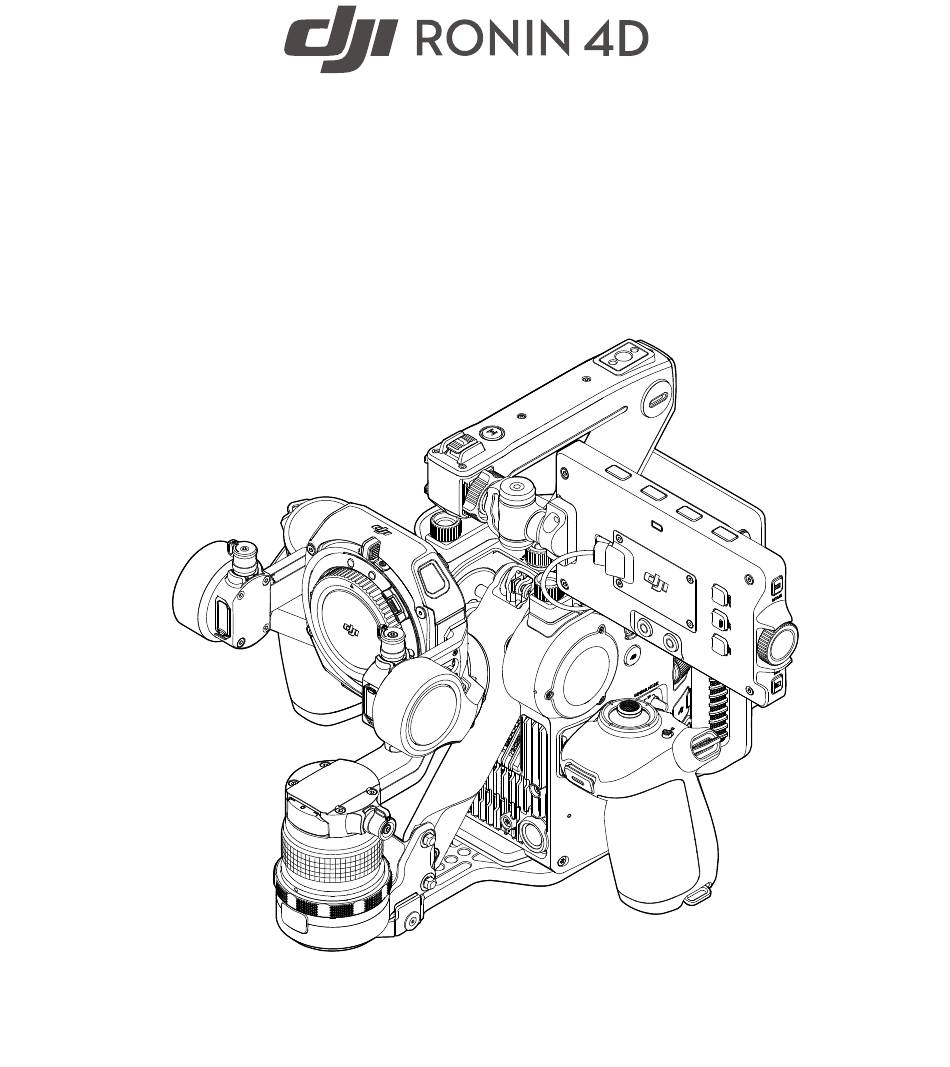

  • Page 1 Quick Start Guide v1.0...
  • Page 2: Getting Started

    3. Left Hand Grip 7. Main Body 8. Right Hand Grip 4. Top Handle For more information, read the DJI Ronin 4D User Manual: https://www.dji.com/ronin-4d/downloads Getting Started A. Watching the Tutorials B. Downloading DJI Assistant 2 (Ronin Series) Scan the QR code to watch tutorials on how Visit http://www.dji.com/ronin-4d/downloads to download the...
  • Page 3: Installation

    DJI Ronin 4D Quick Start Guide Installation A. Mounting the Lens (Using DL Lens as an example) 1. The gimbal is folded by default. Unfold the roll and tilt axes before mounting the lens. Toggle the roll axis lock to the unlocked position, adjust the roll axis as shown, and lock the roll axis.
  • Page 4 Tilt Ronin 4D towards you while holding the top handle. Check the movement of the pan axis. If the camera lens rotates to the left, push the pan axis to the right. If the camera lens rotates to the right, push the pan axis to the left.
  • Page 5 Open the card compartment cover and insert a CFexpress2.0 Type B card or mount a DJI PROSSD 1TB card.* * The CFexpress2.0 Type B card is not included and must be purchased separately. Check the DJI PROSSD Mount User Guide and DJI PROSSD 1TB User Guide for more information about the DJI PROSSD 1TB card.
  • Page 6 Stabilizer, then Gimbal Calibration, and Auto Tune. HOME Button Make sure DJI Ronin 4D is placed on a flat and steady surface before auto-tuning. It is normal for the gimbal to vibrate and make sounds during auto-tune. Ronin 4D must be auto-tuned every time the camera lens is changed.
  • Page 7: Operation

    . The Z axis is balanced if it remains horizontal. Z Axis Switch Operation Ronin 4D can be used once it has been activated, auto-tuned, and the Z axis has been balanced. Main Body 1 2 3 1. Power Button 6.
  • Page 8 12. Audio Port Includes a 3.5mm microphone port and a headphone port. 9. Storage Card Compartment Use to insert an CFexpress2.0 Type B card or DJI PROSSD 1TB 13. HDMI Port card. Used for HDMI output.
  • Page 9 DJI Ronin 4D Quick Start Guide when not in ActiveTrack. Press and hold to start ActiveTrack when in Smart mode with a selected subject. When not in Smart mode, press and hold to switch between Follow and Lock mode. Top Handle High-Bright Main Monitor 1.
  • Page 10 WE ARE HERE FOR YOU 在线技术支持 Contact DJI SUPPORT 微信扫一扫 via Facebook Messenger 获取技术支持 SUBSCRIBE FOR MORE INFO 关注 DJI 大疆创新及时获取最新资讯 RONIN is a trademark of DJI OSMO. Copyright © 2021 DJI OSMO All Rights Reserved. https://pro.dji.com YCBZSS00169002...
