- Page 1 Domino Ax-Series User Documentation Ax130i Ax150i Ax350i Ax550i...
-
Page 2: Domino Ax-Series User Guide
All rights reserved. No part of this publication may be reproduced, stored on a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission of Domino Printing Sciences plc. Domino Printing Sciences plc. has a policy of continuous product improvement, the company therefore reserves the right to modify the specification contained in this user guide without notice. -
Page 3: Table Of Contents
CONTENTS Page DOMINO AX-SERIES USER GUIDE ................Intended Use of Printer ................... WARNINGS, CAUTIONS AND NOTE DEFINITIONS ............. Symbols ........................INKS AND FLUIDS ......................Basic Requirements ....................Exposure to Chemicals ................... Storage ........................Fire Risk ........................Spillages ........................Ventilation ........................ - Page 4 How to Install the Ink and Make-up Cartridges ............34 How to Prime the Ink System .................. 35 SPECIFICATION ......................36 BATTERY END OF LIFE STATEMENT ................40 USA STATE OF CALIFORNIA BATTERY STATEMENT ..........40 CONTENTS OF EU DECLARATION OF CONFORMITY ..........41 CONTENTS OF EU DECLARATION OF CONFORMITY ..........
-
Page 5: Warnings, Cautions And Note Definitions
WARNINGS, CAUTIONS AND NOTE DEFINITIONS WARNING: A hazard which may cause death or injury. CAUTION: A hazard which may cause damage to equipment or environment Note: Contains important information. Symbols Wear eye protection. Wear protective gloves. Disconnect power before doing maintenance or repair. Connect a ground terminal from the product to ground. -
Page 6: Inks And Fluids
Each SDS can be found on the Domino website. Warnings are also displayed on fluid containers. If the printer is supplied with an empty wash bottle, it is the customer’s responsibility to correctly label the bottle. -
Page 7: Exposure To Chemicals
Exposure to Chemicals After exposure to ink, make-up or wash, wash off all possible traces as soon as possible. Obey the precautions listed below: • Avoid contact with the eyes. Wear suitable eye protection if there is any risk of splashing or misting. •... -
Page 8: Spillages
Spillages WARNING: Flammable material. Risk of fire and personal injury. Clean up all ink spillages immediately. Do not allow the ink to dry or allow any build-up of dried ink spills. Some dried inks are highly flammable. WARNING: Electric shock hazard. Risk of personal injury. Switch off power to the printer while cleaning up spillages inside the printer. -
Page 9: Flammable Vapour And Electro-Static Discharge
Flammable Vapour and Electro-Static Discharge WARNING: Flammable vapour. Risk of fire and personal injury. Install and operate the printer in a well ventilated environment. Do not install or operate the printer in closed or sealed rooms or cabinets. Insufficient ventilation may cause an accumulation of flammable vapour. WARNING: Electrostatic discharge hazard. -
Page 10: Operation
OPERATION How to Switch On Note: On the Ax130i, the Standby button does not include a red light. Press and hold the Standby button for two seconds: • The Printer will switch ON. Standby • The GREEN light on the standby button will turn ON. Button •... -
Page 11: Create And Print A Label
CREATE AND PRINT A LABEL How to Create a New Label Select Home > Label creator > Blank. Select Label name and enter a name. Define the label’s Layout settings. Select Create Label. Add label elements (Text, Barcode and Grahpics). How to Save/Save As Select the Save or Save as... -
Page 12: How To Optimise The Print Position
How to Optimise the Print Position What do you want to do? Solution Move print left or right on the Home > Print Optimisation > Print Delay. Increase horizontal axis. or decrease the delay to move along the horizontal axis. Move up or down on the substrate Move the print head. -
Page 13: How To Use The Label Creator
How to Use the Label Creator Used for label creation and label editing. Select Home > Label creator > Blank. Enter a label name when prompted and select Create Label. Name Description Label Canvas A space where the label is designed. Element Moving Options Choose how to move elements around the label canvas. -
Page 14: Maintenance
MAINTENANCE How to Change Cartridges Note: The Ax130i does not have low ink and low make-up lights on the cabinet. Message on UI Alert Status Action “Add Ink Cartridge” Amber “Ink Level Below Amber Minimum” Fit a new Ink Cartridge “Change Ink Cartridge - Empty”... - Page 15 CAUTION: Do not replace a cartridge until prompted. Risk of ink leak. Risk of ink level overfilling if a cartridge is replaced when it is not needed. This will cause ink to leak out of the printer cabinet. Only replace a cartridge when instructed by the user interface.
- Page 16 Use a 6mm hex key to break and remove the sealing tab. 6mm Hex Key Make-up Make-up Ink Cartridge Cartridge Check for leaks. Shut the door. EPT034331 Issue 5 May 2021...
-
Page 17: How To Change The Itm
How to Change the ITM WARNING: Pressurised system. Risk of personal injury. Shut down the printer. Disconnect the power. If you do not, ink can spray out and onto the user. WARNING: Hazardous chemicals. Risk of personal injury. Wear protective equipment such as gloves and glasses when near the printer. - Page 18 Message on UI Alert Status Action The ITM life is soon to expire. Ensure a Amber Order a new ITM if replacement ITM is available needed Intelligent Ink System is in depletion mode to Amber Ensure a new ITM is prepare for ITM change available Change ITM - Expired...
- Page 19 Remove the sealing strip from the new ITM and lubricate the manifold pipes with wash. Remove ITM Sealing Strip Lubricate with Wash Fit sealing strip onto the old ITM. Place paper towel or similar below the ink block and use wash to clean any dried residual ink from the ink block valve face.
- Page 20 (10) Ensure the ITM retaining clips are engaged. (11) Re-connect power lead and switch on. (Press for 2 seconds) (12) Check the ITM QMM status light. QMM Light Colour Meaning Action Yellow Not Found Try another. Flashing Yellow Reading Wait..Green Good Use this.
-
Page 21: How To Clear A Blocked Nozzle
How to Clear a Blocked Nozzle WARNING: Hazardous chemicals. Risk of personal injury. Wear protective equipment such as gloves and glasses when near the printer. Physical contact with printer ink or make-up can cause skin or eye damage. CAUTION: Risk of poor print performance Do not run the nozzle unblocking wizard more than 2 times. -
Page 22: How To Clean The Print Head
How to Clean the Print Head i-Pulse Print Head (Ax150i, Ax350i or Ax550i) WARNING: Hazardous chemicals. Risk of personal injury. Wear protective equipment such as gloves and glasses when near the printer. Physical contact with printer ink or make-up can cause skin or eye damage. - Page 23 Loosen screw and remove the Charge Electrode. Clean in the slot with relevant wash, dry using lint free tissue. Clean any ink residue from deflector plates Clean any ink residue from gutter area Replace the charge electrode. Replace the print head holster. EPT034331 Issue 5 May 2021...
- Page 24 i-Pulse2 Print Head (Ax130i) WARNING: Hazardous chemicals. Risk of personal injury. Wear protective equipment such as gloves and glasses when near the printer. Physical contact with printer ink or make-up can cause skin or eye damage. CAUTION: Risk of poor print performance Switch off the printer before starting this procedure.
- Page 25 Loosen screw and remove the Charge Electrode. Clean in the slot with relevant wash, dry using lint free tissue. Clean any ink residue from deflector plates Clean any ink residue from gutter area Replace the charge electrode. Replace the print head cover. EPT034331 Issue 5 May 2021...
- Page 26 i-Pulse Duo Print Head (Ax350i or Ax550i) WARNING: Hazardous chemicals. Risk of personal injury. Wear protective equipment such as gloves and glasses when near the printer. Physical contact with printer ink or make-up can cause skin or eye damage. CAUTION: Risk of poor print performance Switch off the printer before starting this procedure.
- Page 27 Loosen screw and remove Loosen screw and remove the Charge Electrode. the Charge Electrode. Clean in the slot with Clean in the slot with relevant wash, dry using lint relevant wash, dry using lint free tissue. free tissue. Clean any ink residue from deflector plates Clean any ink residue from gutter area...
- Page 28 i-Pulse RS Print Head (Ax350i or Ax550i) WARNING: Hazardous chemicals. Risk of personal injury. Wear protective equipment such as gloves and glasses when near the printer. Physical contact with printer ink or make-up can cause skin or eye damage. CAUTION: Risk of poor print performance Switch off the printer before starting this procedure.
- Page 29 Clean in the slots with relevant wash, dry using lint free tissue. When Cleaned, use a magnifying glass to ensure both slots are lint free. Clean any ink residue from deflector plates Clean any ink residue from gutter area Replace the print head cover. EPT034331 Issue 5 May 2021...
-
Page 30: How To Prepare For A Long Shut-Down
How to Prepare for a Long Shut-down The recommended procedure to prepare the printer for a long shut down depends on the length of time that the printer will be shut down and the environment the printer will be stored in. Less Than 14 Days WARNING: Hazardous chemicals. -
Page 31: Installation
• Use additional static dissipating devices, such as anti-static brushes, as recommended. The customer must be aware of the importance of this grounding since it is not Domino's responsibility to maintain the customer's equipment. • Check the grounding periodically. -
Page 32: Cabinet Location
Such that the vents on the underneath of the cabinet are not obstructed. Cabinet Mounting For stability and to minimise vibration, the printer should be mounted on a Domino Printer Stand with the Stacking Kit. If a printer stand is not used, then secure the printer base using M6 mounting bolts. -
Page 33: Touchscreen Mounting (Ax350I And Ax550I)
TouchScreen Mounting (Ax350i and Ax550i) x8 M5 x 25mm (VESA 75 Mount) Ax350i Ax550i EPT034331 Issue 5 May 2021... -
Page 34: Preparing The Printer
PREPARING THE PRINTER How to Prepare the Print Head WARNING: Risk of personal injury. Only a trained person may install the printer. For full installation instructions, refer to the product manual. Do this procedure when preparing the printer for the first time. Remove the print head cover. -
Page 35: How To Install The Itm
How to Install the ITM WARNING: Hazardous chemicals. Risk of skin or eye damage. Wear protective equipment such as gloves and glasses when near the printer. Physical contact with printer ink or make-up can cause skin or eye damage. CAUTION: Hazardous Chemical. -
Page 36: How To Prime The Ink System
Obey the on screen instructions. Check the ink jet alignment, refer to the product manual for instructions. Note: For all printer settings and further installation information, refer to the Product Manual, which can be found at: https://mydomino.domino-printing.com/ EPT034331 Issue 5 May 2021... -
Page 37: Specification
SPECIFICATION Temperature Range +5º to +45ºC (42ºF to 112ºF) (Working): Temperature Range -20º to +60ºC (-4ºF to +140ºF) (machine dry - storage, wet (Storage): dependent upon fluids) Humidity: 0 - 90% RH (non-condensing) Pollution Degree of Degree 2 Intended Environment: Maximum Altitude of <... - Page 38 IP Rating: Ax130i IP54 Ax150i Designed to IP55 Ax350i/Ax550i Overall - IP55 (Electronics enclosure designed to IP66) TouchScreen 10" IP65 Usable in wet locations (resistant to water jets). TouchScreen 7" IP55 Usable in wet locations (resistant to water jets). EPT034331 Issue 5 May 2021...
- Page 39 Size and Weight Weight (dry) with Ax130i/Ax150i 16kg (35.3lb) i-Pulse print head and Ax350i/Ax550i* 23.8kg (52.5lb)* 3m conduit: *Ax350i/Ax550i ONLY i-Pulse Duo print head Add 1kg (2.2lb) (3m conduit) TouchScreen 10" 2.5Kg (5.5lbs) TouchScreen 7" 0.75Kg (1.65lbs) 394mm 400mm Ax130i Cabinet EPT034331 Issue 5 May 2021...
- Page 40 394mm 400mm Ax150i Cabinet 430mm 381mm Ax350i/Ax550i Cabinet EPT034331 Issue 5 May 2021...
-
Page 41: Battery End Of Life Statement
BATTERY END OF LIFE STATEMENT WARNING: Flammable Material. Risk of Fire or Explosion. Do not dispose the battery in a fire, hot oven, by mechanically crushing or cutting. Obey local waste regulations when disposing of batteries. Do not store or leave the battery in high or low extremes of temperature. Do not store or leave the battery in a location that is subject to low air pressure at high altitude. -
Page 42: Contents Of Eu Declaration Of Conformity
CONTENTS OF EU DECLARATION OF CONFORMITY Manufacturer Domino UK Limited, Trafalgar Way, Bar Hill, Cambridge, CB23 8TU, United Kingdom Trademark Domino Authorized Representative Domino Laser GmbH, Fangdieckstrasse 75a, 22547 Hamburg, Germany Product Description Industrial ink jet printer including accessories Model/Type Number(s) - Page 43 EPT034331 Issue 5 May 2021...
-
Page 44: Contents Of Eu Declaration Of Conformity
CONTENTS OF EU DECLARATION OF CONFORMITY Manufacturer Domino UK Limited, Trafalgar Way, Bar Hill, Cambridge, CB23 8TU, United Kingdom Trademark DOMINO Authorized Representative Domino Laser GmbH, Fangdieckstrasse 75a, 22547 Hamburg, Germany Product Description Industrial ink jet printer including accessories Model/Type Number(s) - Page 45 EPT034331 Issue 5 May 2021...
-
Page 46: Software Licensing
This product contains open source software components that are subject to the terms and conditions of the applicable open source licences. Those open source software components, the open source licences applicable to them, and, where required, copies of their source code, can be found at: https://www.domino-printing.com/en-gb/legal-and- ip/open-source-licensing.aspx EPT034331 Issue 5 May 2021... - Page 47 THIS PAGE INTENTIONALLY LEFT BLANK EPT034331 Issue 5 May 2021...
- Page 48 Domino Ax-Series User Documentation - Part No. EPT029891 Domino Printing Sciences plc has a policy of continuous product improvement, the Company therefore reserves the right to modify the specification contained within this document without notice. © Domino Printing Sciences plc 2021. All rights reserved.
Need help?
Do you have a question about the Ax Series and is the answer not in the manual?
Questions and answers
How To Connect Windows System 10.
To connect a Domino Ax-Series printer to a Windows 10 system using the TouchPanel, follow these steps:
1. Select "UI Settings" on the TouchPanel.
2. In "Connection Method," choose "Favourite."
3. Select "Add favourite..."
4. Enter the following:
- Name: Enter a name for the printer.
- Type: Select "CIJ" for Ax-Series.
- IP address: Input the printer's IP address.
- Host: Enter the host name.
5. Select the green tick icon to save.
6. The printer will appear on the screen. Select it to connect.
To switch printers:
1. Select the Lock button.
2. Choose a printer from the favourite list.
This setup allows the TouchPanel to connect to the Domino printer on a Windows 10 system.
This answer is automatically generated

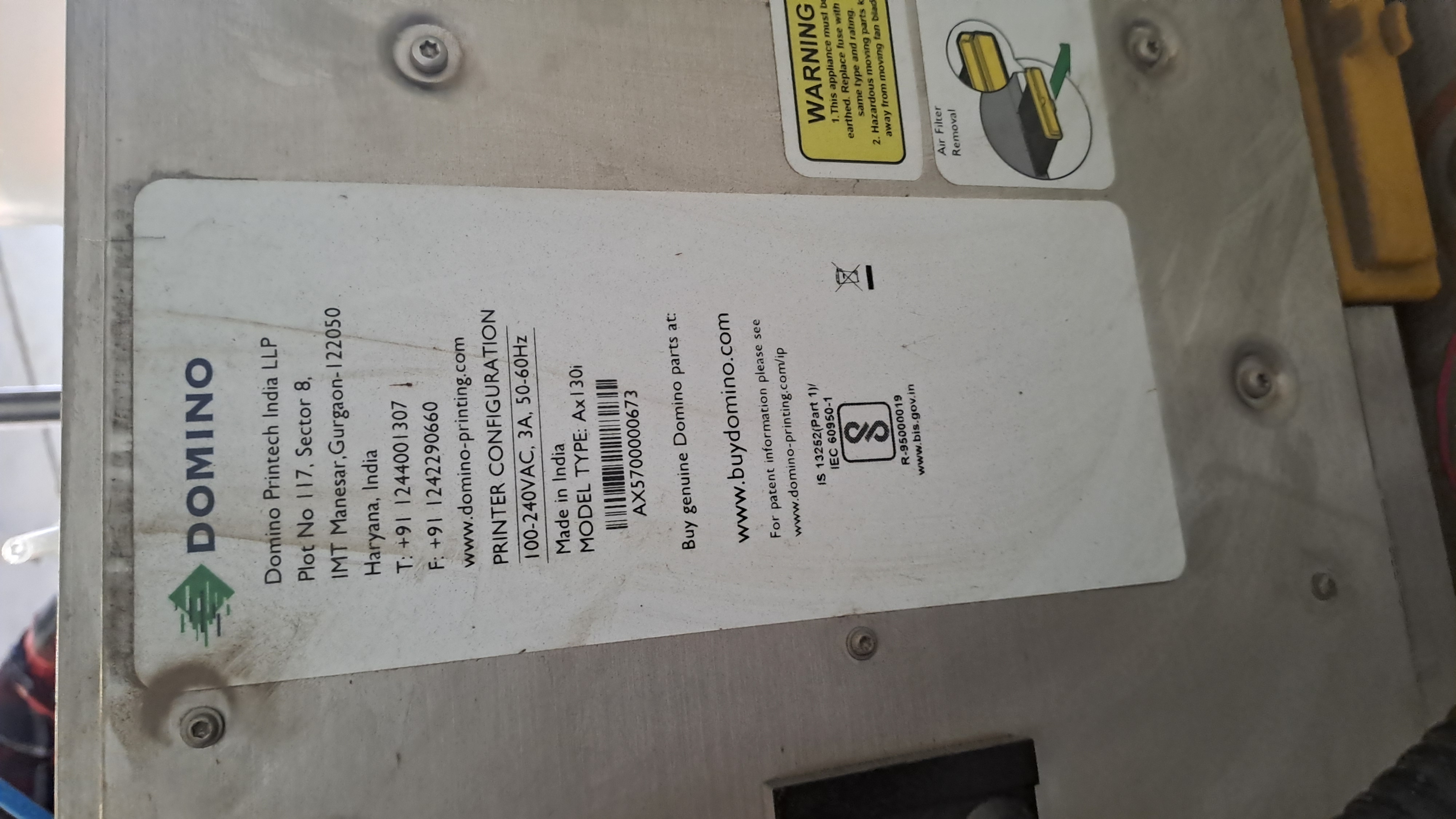

Hi I have a Ax350i and I cannot get it to print continuously. When I tap on the drop down menu it says jet is on, but not printing. It is not in jet running it is in sequence on and the encoder seems fine what can I do to make it print? I **** able to make it print one time by pressing test print but that is it.
To resolve continuous printing issues with the Domino Ax350i when the jet is on but no print occurs, check the following:
- Clean the print head if it is dirty or unplugged.
- Inspect for ink on the Charge Electrode.
- Check if charge detection has failed.
- Verify if fall back jet modulation is in use.
- Confirm whether the Deflection EHT has tripped.
- Examine the sensor for faults and correct positioning.
- Ensure the encoder is functioning and outputting signals.
- Verify the sensor’s active level setting is correct.
- Adjust print delay and offset settings if needed.
- If printing was disabled from the Home screen, press the Enable/Disable (Send to Print) button to re-enable printing.
This answer is automatically generated
