Domino G20i Operator's Quick Reference Manual

G20i Operator's Quick Reference Guide

HEALTH AND SAFETY

• Read the relevant Safety Data Sheet (SDS) before storing,
handling, transporting or using the ink cartridges.
• Disconnect the power before making any wiring connections.
• Ensure all cables are secured away from moving production
line components.
• Use only lint free wipes when cleaning the cartridge nozzles.
• Clean cartridge nozzles according to the instructions in the
product manual available at: www.DominoCaseCoding.com
• Protect the print heads from impact with proper adjustment
and alignment of side rails and product guides.
• Do not open any enclosed components of the printer or print
heads. They contain no user-serviceable parts.
• Wear suitable protective equipment when operating the
G20i.
• The G20i is for indoor use only, do not operate the printer
outdoors, or in an environment outside of the specified
operating range.

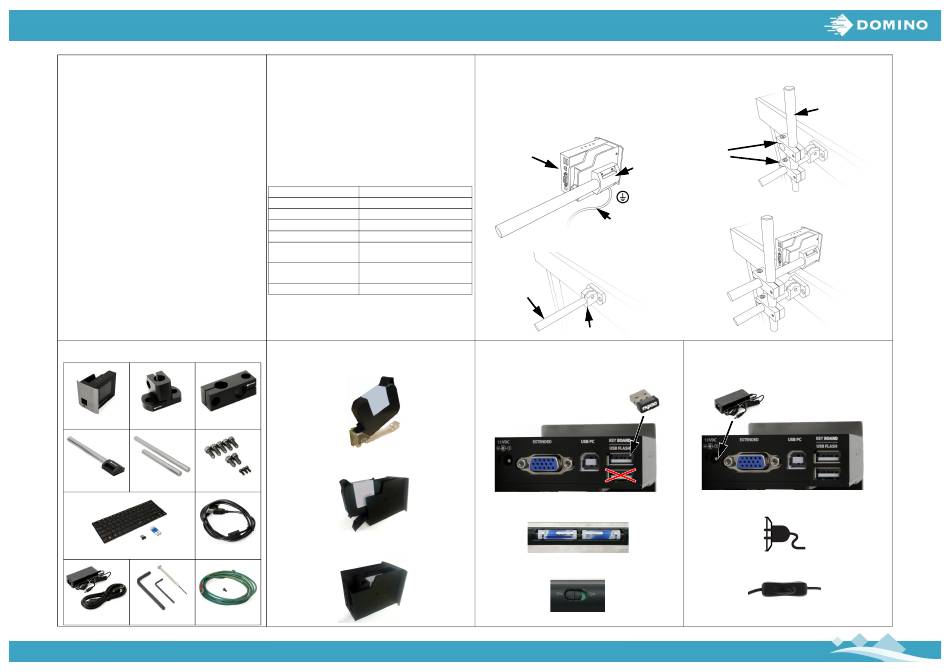

PACKAGE CONTENTS

G20i Printer Base Clamp
Anti Shock Clamp Round Bars
Wireless USB Keyboard
Power Adapter Tools

PRINTER DESCRIPTION

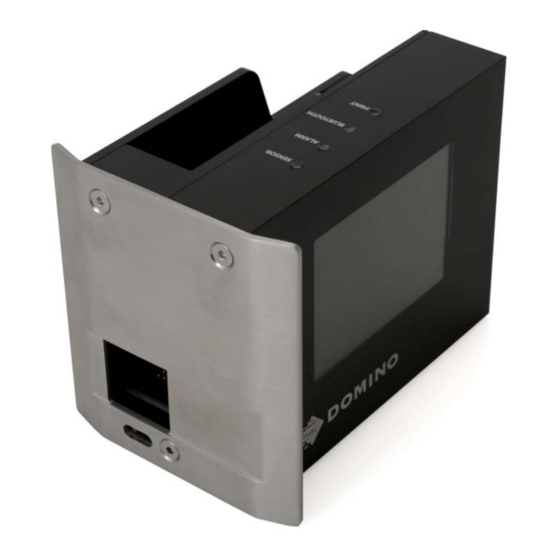

The G20i is a compact thermal ink jet printer, intended to print
data on user supplied products on manufacturing production
lines.
The G20i uses a Domino BK640 ink cartridge as the print engine.
The G20i can be controlled with a wireless USB keyboard, an
Android device via Bluetooth or a PC connected via USB.
For further instructions, refer to the G20i Product Manual
available at: www.DominoCaseCoding.com

SPECIFICATION

Length 107.5mm (4.23")
Width 74.5mm (2.93")
Height: 83mm (3.27")
Weight: 450g
Power Supply: 12V, 5.0A, 60W
Maximum Power 48W
Consumption:
Temperature Range: +5°C to +50°C
(+41°F to +122°F)
Humidity Range: 10% to 90% non-condensing

INK CARTRIDGE INSTALLATION

(1) Remove the cover from the ink cartridge.
Clamps x2
(2) Insert the ink cartridge into the G20i.
Screws x10
(3) Close the latch.
USB Cable
Ground Cable

HARDWARE INSTALLATION

Carry out a risk assessment of the area before the printer is
installed.
Ensure that the Ground Cable is fitted to the Anti Shock Clamp
and connected to a suitable ground point according to local
regulations.
(1)
G20i Printer
Anti Shock
Clamp
Ground Cable
(2)
Round Bar
Base Clamp

KEYBOARD CONNECTION

(1) Insert the USB keyboard receiver into the USB
keyboard slot.
(2) Insert 2 AAA batteries (included) into the keyboard.
(3) Turn on the keyboard.
(3)
Round Bar
Clamp
(4)

POWER SUPPLY CONNECTION

CAUTION: Only use the power adapter provided.
(1) Plug the power adapter into the 12 VDC socket.
(2) Plug the power adapter into a power source.
(3) Turn on the power adapter using the in-line switch.
