- Page 1 IND Series Operator Instruction Manual C6000507-01 issued October 2021...
-
Page 2: Table Of Contents
Heated Unit Operating Instructions ..................13 Technical Information ......................... 14 Ultrasonic cleaning detergents ....................15 Maintenance ..........................16 Returning equipment to Ultrawave ..................16 Disposal of this ultrasonic equipment ..................17 Warranty ............................17 Troubleshooting ........................... 20 Compliance with the Control of Noise at Work regulations ..........21 Service record .......................... -
Page 3: Safety Instructions

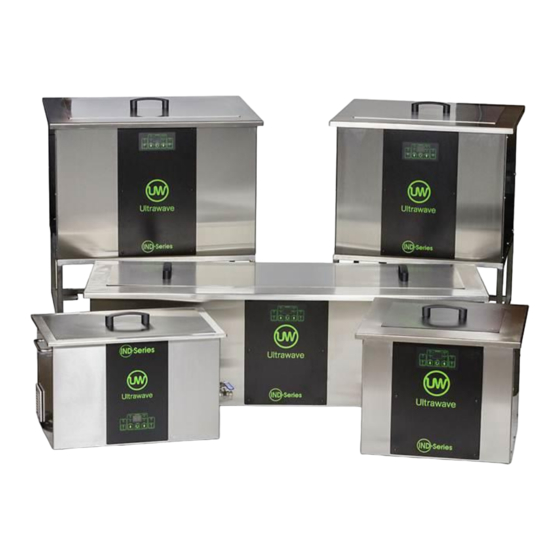

Safety Instructions Use of products The following products are covered by this operating manual: • IND30, IND45, IND75, IND80, IND90, IND90L, IND100, IND100L, IND145, IND145L, IND155L The products listed above are a series of ultrasonic cleaning baths designed for indoor use by a professional user. - Page 4 The user should familiarize themselves with this user manual before operating the equipment. Safety may be impaired if they are not followed. Ultrawave will not be responsible for damage or injury caused by incorrect use of the equipment. The user should apply to Ultrawave or its agent for advice on cleaning techniques or detergents.
-
Page 5: Operating Conditions
REMEMBER • Ensure that the tank is filled to operate the liquid level sensor before you switch on the machine. • Do not put hot water (above 50°C) into the equipment. • Always use the basket to support items to be cleaned. •... - Page 6 Safety Symbols Danger Indicates an imminently hazardous situation which will result in serious or fatal injury. This symbol is used only in the most extreme conditions. Caution Indicates a potentially hazardous situation which may result in minor or moderate injury. It may also be used to alert against unsafe practices.
-
Page 7: Installation
Installation The following parts and accessories are included with the Ultrawave IND-Series ultrasonic units: 1 x Basket 1 x Lid 1 x Hose connector 1 x Ultraclean detergent sample How to install Locate the ultrasonic equipment close to a drain or sink to allow easy drainage of the tank. -
Page 8: Filling The Tank
Filling the tank Pour cold or hand warm water into the tank the liquid reaches the float level sensor. If there is insufficient fluid in the tank to activate the float level sensor, the digital control panel will display the scrolling message “LEVEL”. Where this message displays, the unit will not operate until more fluid is poured into the tank to activate the sensor. -
Page 9: Type Of Ind Unit
Type of IND unit There are three versions of the IND series: Ultrasonic & heated This is a fully functional ultrasonic unit with an ultrasonic generator & transducers and heaters Heated only In certain circumstances, ultrasonic activity is not required, e.g., when used as a rinse tank. -
Page 10: The User Interface Explained
The User Interface Explained Five buttons are provided Heat Starts and stops the heat function Used to scroll down when programming cycle time or Down set temperature Toggles between Normal Cycle, Set Cycle Time and Mode Set Temperature Used to scroll up when programming cycle time or set temperature Cycle Starts and stops a timed cycle... -
Page 11: Setting The Cycle Time And Temperature
Setting the cycle time and temperature To set the cycle time (settable 1-99 minutes): Press the centre MODE key until the TIME SET light glows. Press the Up or Down arrows until the required time in minutes is indicated. To set the cycle temperature (ambient to 80°C): Press the centre MODE key until the TEMP SET light glows. -
Page 12: Ultrasonic Unit Operating Instructions
Ultrasonic Unit Operating Instructions Before placing items in the IND-Series to be cleaned, the liquid will need to be degassed. Turn on the ultrasonics for at least 10 minutes to degas the cleaning liquid. (See page 15 for more details on degassing). The IND-Series is now ready to use. -
Page 13: Heated Unit Operating Instructions
Heated Unit Operating Instructions To start a timed cycle: Press the CYCLE key. The CYCLE light will glow, activity will commence in the liquid and the display will count down from the set time. (The factory pre-set time is 10 minutes.) At the end of the timed period the activity will stop and the timer will revert to the pre-set time, ready for a repeat of the operation. -
Page 14: Technical Information
The time needed to degas the liquid varies depending on the amount of gas present in the liquid and the quantity of water in the tank. Ultrawave recommends a degas period of at least 10 minutes, although larger tanks will require a longer degas period. -
Page 15: Ultrasonic Cleaning Detergents
Ultrawave offers a range of specially formulated ultrasonic detergents for use in applications including medical and industrial cleaning requirements. Ultrawave recommends a dosage of between 2 and 5% by volume for all the following detergents Ultraclean SA: A general purpose cleaning detergent suitable for use on aluminium and other soft metals. -
Page 16: Maintenance
“Ultrawave product return form” This policy is designed to protect the health and safety of Ultrawave employees reducing the risk of potential injury or infection If you require further information please contact the After Sales Dept. on: Tel: 44 (0) 29 20837337 E-mail: service@ultrawave.co.uk... -
Page 17: Disposal Of This Ultrasonic Equipment
If exposed to liquid or chemicals the warranty will be invalidated. Within the warranty period Ultrawave will repair or replace free of charge, Ex Works, all defective parts in the system/equipment but Ultrawave shall not be liable for costs for removing (disassembling) or installing (assembling) parts. - Page 18 Warranties will not apply if any fault has been caused by failure of the Customer to carry out routine maintenance, in addition to any PPMS carried out by Ultrawave as part of the extended warranty, or the Customer fails to ensure the required services are maintained.
- Page 19 Warranties will become void in the event of the system/equipment being moved in any way from any location where the system/equipment was originally commissioned by Ultrawave unless Ultrawave are notified in writing prior to any such move. IND Operating Manual C6000507...
-
Page 20: Troubleshooting
Troubleshooting Ultrawave has a dedicated After Sales Department who are able to resolve any problems that occur with your equipment. However, on many occasions it is possible that the problem can be rectified by the operator. The unit fails to turn on (no Check that the unit is plugged in, and that mains electricity is present. -
Page 21: Compliance With The Control Of Noise At Work Regulations
To help you calculate your workers’ exposure, Ultrawave publish the noise generated by your ultrasonic equipment on the Certificate of Test. The figure is that experienced by a worker standing in the operating position. -
Page 22: Service Record
Service record Ultrawave recommends that your ultrasonic equipment is serviced at least once every 12 months. This record must be maintained by the engineer conducting the service. There are no user serviceable parts inside. All service and repair should be referred to qualified Ultrawave engineers only. - Page 23 Date Cycle count Engineer Details Next service due Date Cycle count Engineer Details Next service due Date Cycle count Engineer Details Next service due Date Cycle count Engineer Details Next service due Date Cycle count Engineer Details Next service due IND Operating Manual C6000507...
-
Page 24: Notes
Notes __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ _______________________________________________ IND Operating Manual C6000507... - Page 25 __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ _______________________________________________ IND Operating Manual C6000507...
- Page 26 Ultrawave Ltd Eastgate Business Park Wentloog Avenue Cardiff CF3 2EY www.ultrawave.co.uk Tel +44 (0) 29 2083 7337 C6000507-01 issued October 2021...
