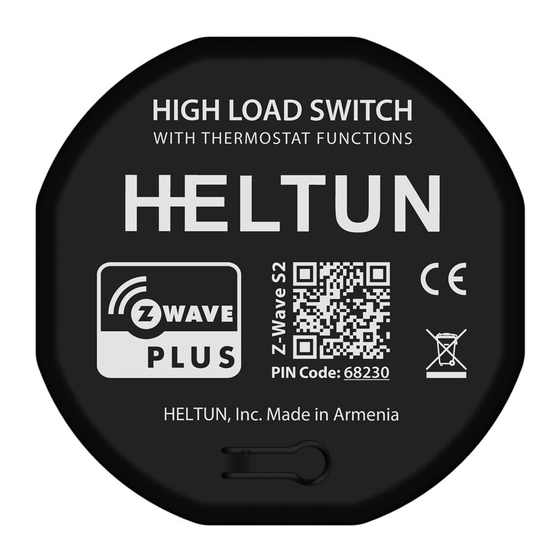

HIGH LOAD SWITCH
HE-HLS01 USER MANUAL
for Hardware v.84 & Firmware v.1.5
HE-HLS01 USER MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HE-HLS01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Heltun HE-HLS01

Summary of Contents for Heltun HE-HLS01

  • Page 1 HIGH LOAD SWITCH HE-HLS01 USER MANUAL for Hardware v.84 & Firmware v.1.5 HE-HLS01 USER MANUAL...

  • Page 2: Table Of Contents

    Input & Outputs ...................... 34 Temperature Configurations ................... 34 Time Configurations ....................35 Time Mode Schedule ....................35 Energy and Sensor Report Interval ................. 36 Protections and Notifications .................. 37 Basic Set Command ....................39 LIMITED WARRANTY ....................40 HE-HLS01 USER MANUAL...

  • Page 3: Manual Revision History

    Firmware V1.3 - Max supported Nodes for each Association Group increased to 5 • Firmware V1.2 - Added “Parameter 159 – Load On Notification” • Firmware V1.2 - Added “Parameter 160 – Load Off Notification” Detailed Changelog & OTA update files can be found at support.heltun.com HE-HLS01 USER MANUAL...

  • Page 4: Overview

    Based on the latest Z-Wave platform The HE-HLS01 integrates a Z-Wave Plus™ v2 700 platform module allowing it to be used with Z-Wave home automation systems. The HE-HLS01 supports Z-Wave ‘S0’ and ‘S2’ security protocols, SmartStart technology, and can be connected (associated) to other Z-Wave devices, such as relays, motor controllers, dimmers, etc.

  • Page 5: Technical Specifications

    External floor temperature sensor FUNCTIONS & FEATURES The functions and features of HE-HLS01 could be different depending on how the device is included in Z-Wave network. Depending on the number of button presses (two or four) during the inclusion process HE-HLS01 could function as either “Binary Switch” or “Thermostat”.

  • Page 6: Installation

    1. FIRST ENSURE THE POWER IS OFF at the main circuit breaker, and then test the wires with a probe or multimeter to verify. 2. Insert the power and load wires to the correct HE-HLS01 terminals by inserting a small Phillips-head screwdriver in the slot beneath each terminal and unscrew to open.
  • Page 7 Note: If an NTC sensor other than 10 kΩ is used, you must change the sensor resistance value in Parameter 10. 4. If you will be using an external device to select modes for the HE-HLS01 (such as a security system or wall switch), connect wires from the external device’s dry contacts to the two HE- HLS01 terminals labeled “S1”...

  • Page 8: Disassembly

    Connection diagram 3 Connection diagram 4 5. Switch On the main power at the circuit breaker. The HE-HLS01 will start up with the original default factory settings and the LED indicator will blink red slowly meaning the device is excluded from a Z-Wave network.

  • Page 9: Adding To Z-Wave Network

    Adding to Z-Wave network To add the HE-HLS01 to an existing Z-Wave network (i.e. “inclusion”), do the following: 1. Ensure the HE-HLS01 is Powered On and the LED indicator blinks red slowly (i.e. it is excluded). 2. Start the Inclusion Mode from the gateway/controller.

  • Page 10: Removing From Z-Wave Network

    Removing from Z-Wave network To remove the HE-HLS01 from a Z-Wave network (i.e. “Exclusion”), do the following: 1. Ensure the HE-HLS01 is Powered On and the LED indicator blinks green or blue slowly (i.e. it is included in a Z-Wave network).

  • Page 11: Firmware Ota Update

    6. When the Firmware has updated, the LED will turn blue for two seconds and then the HE- HLS01 will reboot. 7. When the update has been completed, the HE-HLS01 will return to normal operation. 8. If desired, verify the update was successful by checking firmware version from the gateway/controller.

  • Page 12: Z-Wave Plus V2 Specifications

    Switch Binary S2 Unauthenticated or S0) highest granted (S2 Authenticated, Sensor Multilevel S2 Unauthenticated or S0) highest granted (S2 Authenticated, Meter S2 Unauthenticated or S0) highest granted (S2 Authenticated, Clock S2 Unauthenticated or S0) Transport Service none HE-HLS01 USER MANUAL...
  • Page 13 (S2 Authenticated, Notification S2 Unauthenticated or S0) Meter Command Class: Meter Type Scale Rate Type Precision Size Electric [0x01] Electric_kWh [0x00] Import [0x01] Electric [0x01] Electric_W [0x02] Import [0x01] Electric [0x01] Electric_V [0x04] Import [0x01] Notification Types: HE-HLS01 USER MANUAL...

  • Page 14: Associations

    Note: It is not recommended to modify this group. Group 2 – “Relay Basic Set”: is assigned to the HE-HLS01 relay state. It sends a Basic Set command with value 255 (On) when relay goes to On state and sends 0 (Off) when relay goes to Off state.

  • Page 15: Settings (Available Through Z-Wave Network)

    Relay output NO or NC mode 0, 1 Reserved by the manufacturer Floor Sensor Resistance, kΩ 1 … 100 1 byte 11-16 Reserved by the manufacturer Temperature Sensor Calibration in °C, -100 … 100 °C 1 byte value X 10, e.g. 1.5°C=15 HE-HLS01 USER MANUAL...
  • Page 16 Reserved by the manufacturer 1 byte S1 Input Click Control Mode 0, 1, 2, 3, 4, 5 52-65 Reserved by the manufacturer 1 byte Restore Relay State After Power Failure 0, 1 67-70 Reserved by the manufacturer HE-HLS01 USER MANUAL...
  • Page 17 Sensors consecutive reporting interval, 1 … 120 1 byte minutes Temperature difference to send to 0, 1 … 100 for °C 1 byte controller, value X 10 145-150 Reserved by the manufacturer 1 byte System Error Notification 0, 1 HE-HLS01 USER MANUAL...

  • Page 18: Z-Wave Frequency

    Z-Wave Frequency Parameter 01 – Frequency Region The HE-HLS01 has Z-Wave 700 series chip inside which allows to use the device in different Z-Wave frequencies. If there is a need to use the device in the frequency different from the factory default, change the value of this Parameter according to the frequency list below.

  • Page 19: Hardware & Software Versions

    Note: This Parameter is read-only. Resetting Cumulative Consumption memory: The HE-HLS01 allows to erase stored Consumption Data through Z-Wave network. The HE-HLS01 enables you to erase stored Consumption Data through the Z-Wave network as follows: 1. Make sure the HE-HLS01 is powered.

  • Page 20: Input & Outputs

    Parameter 19 – Time Correction by Main Controller If this Parameter value = 1 and the HE-HLS01 is connected to a Z-Wave gateway, the HE- HLS01 time and day will be periodically polled and corrected from the gateway. To switch off auto-correction set the Parameter value to 0.

  • Page 21: Auto On/Off Function

    15 minutes, or the load is reconnected while the relay is off. ≡ Note: We recommend activating the Load Switched Off notification (the Parameter 160) to be informed when the device automatically switch Off the socket. ≡ Note: The protection works only if the device is AC powered. HE-HLS01 USER MANUAL...

  • Page 22: External Input Configuration

    Note: The protection works only if the device is AC powered. External Input Configuration The HE-HLS01 can be connected to the dry output contacts of an external device (i.e. security system or wall switch) to control the Switch output state depending on the state of the external device.

  • Page 23: Scenarios

    0. The factory default value is 0. Example: Parameter value 1210350 means A=1 (the scenario is enabled), B=2 (Tuesday), C=1 (switch the relay On), DEFG=0350 (time 03:50). In this case each Tuesday at 03:50 the HE-HLS01 USER MANUAL...

  • Page 24: Energy And Sensor Report Interval

    The factory default value is 25. ≡ Note: When the HE-HLS01 is turning ON, the consumption data will be sent to the gateway once, even if the value of this Parameter is 0. Parameter 143 – Sensors Consecutive Report Interval...

  • Page 25: Protections And Notifications

    Off the load and send “Overheat Detected” notification to the gateway. The value of this parameter can be set from 1 to 120 in °C scale mode. Use the value 0 if there is a need to disable this function. The factory default value is 60 in °C scale. HE-HLS01 USER MANUAL...
  • Page 26 Use this parameter if you want to get a “Power reconnected” notification every time the relay turns on. If you want to enable the notification set the parameter value to 1. The factory default value is 0 (Notification is disabled) HE-HLS01 USER MANUAL...

  • Page 27: Device Type "Thermostat

    The HE-HLS01 can have different Schedules for Morning, Daytime, Evening and Night. For example, the “Morning” Schedule could be set to 25.0°C starting at 7:00. The “Day” Schedule could then be set to 11.0°C at 9:00 when everyone has gone to work or school, and so on.

  • Page 28: Parameters List & Factory Defaults

    This mode is recommended for use if a high floor temperature is required for a limited period of time. For example, after washing the floor. By choosing DRY Mode, the HE-HLS01 will increase the temperature to the selected Set Point for the time specified in the “Dry Time”...
  • Page 29 Morning start time. Format: 0000 … 2359 2 bytes HHMM. e.g.08:00 should be sent as 0800 0000 … 2359 2 bytes Day start time. Format: HHMM. 0000 … 2359 2 bytes Evening start time. Format: HHMM. 1800 HE-HLS01 USER MANUAL...
  • Page 30 10 … 1100 for °C 2 bytes 180 for °C valueX10 Friday Morning temperature, 10 … 1100 for °C 2 bytes 240 for °C valueX10 10 … 1100 for °C 2 bytes Friday Day temperature, valueX10 200 for °C HE-HLS01 USER MANUAL...
  • Page 31 Reserved by the manufacturer 1 byte System Error Notification 0, 1 0, 1 … 120 for °C 2 bytes Temperature Rise Notification 50 for °C 0, 1 … 120 for °C 2 bytes Overheat Protection Level 60 for °C HE-HLS01 USER MANUAL...

  • Page 32: Z-Wave Frequency

    Z-Wave Frequency Parameter 01 – Frequency Region The HE-HLS01 has Z-Wave 700 series chip inside which allows to use the device in different Z-Wave frequencies. If there is a need to use the device in the frequency different from the factory default, change the value of this Parameter according to the frequency list below.

  • Page 33: Hardware & Software Versions

    Note: This Parameter is read-only. Resetting Cumulative Consumption memory: The HE-HLS01 allows to erase stored Consumption Data through Z-Wave network. The HE-HLS01 enables you to erase stored Consumption Data through the Z-Wave network as follows: 1. Make sure the HE-HLS01 is powered.

  • Page 34: Input & Outputs

    For example, if the SET POINT is set for 25°C and HYSTERESIS is set for 0.5°C the HE-HLS01 will change the state to IDLE when the temperature reaches 25.0°C, but it will change the state to HEATING if the temperature drops lower than 24.5°C.

  • Page 35: Time Configurations

    Parameter 19 – Time Correction by Main Controller If this Parameter value = 1 and the HE-HLS01 is connected to a Z-Wave gateway, the HE- HLS01 time and day will be periodically polled and corrected from the gateway. To switch off auto-correction set the Parameter value to 0.

  • Page 36: Energy And Sensor Report Interval

    The factory default value is 25. ≡ Note: When the HE-HLS01 is turning ON, the consumption data will be sent to the gateway once, even if the value of this Parameter is 0. Parameter 143 – Sensors Consecutive Report Interval...

  • Page 37: Protections And Notifications

    The factory default value is 1 (the notification is enabled). ≡ Note: Even if you turn off the notification, the device will switch Off the load when the current reaches 16A. ≡ Note: The protection works only if the device is AC powered. HE-HLS01 USER MANUAL...
  • Page 38 (meaning possible problems with the heating system). Set the value 1 to enable “Load Error” notification or the value 0 to disable. The factory default value is 1 (the notification is enabled). ≡ Note: The function works only if the device is AC powered. HE-HLS01 USER MANUAL...

  • Page 39: Basic Set Command

    This Parameter defines which Operating Mode the HE-HLS01 reverts to if the Basic Set command is received. If the Basic Set command value is 0 (OFF state) the HE-HLS01 will go to Manual mode and switch Off the heating element (IDLE mode). If the Basic Set command is value is 0xFF (ON state) the HE-HLS01 will change the Mode to the corresponding Parameter value as follows.

  • Page 40: Limited Warranty

    (1) year from the date of purchase by the consumer ("Warranty Period"). HELTUN will extend this Warranty Period to three (3) years from the date of consumer purchase for any consumer who registers his/her product with HELTUN at this website page: bonus.heltun.com.
