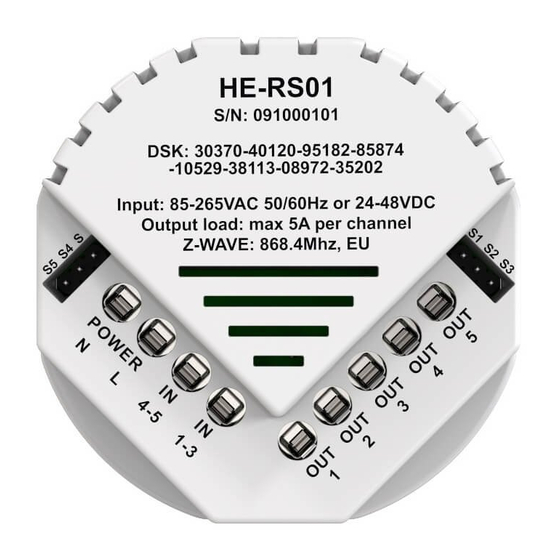

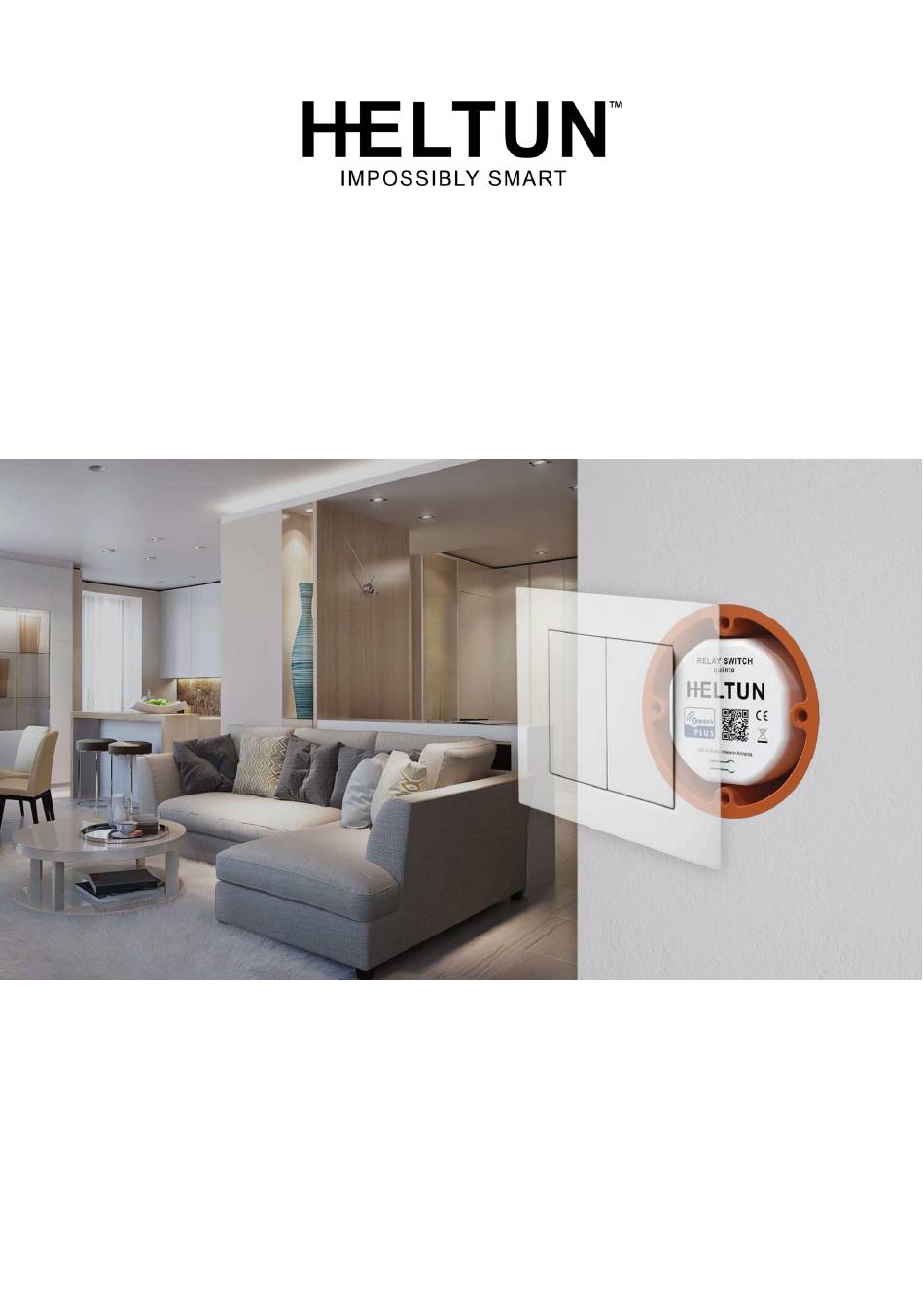

- Page 1 RELAY SWITCH QUINTO HE-RS01 USER MANUAL v1.0...
-
Page 2: Table Of Contents
Table of Contents Overview ................................... 3 Technical Specifications ..............................3 Functions & Features ................................ 4 Installation ..................................4 Disassembly ..................................5 Operation ..................................6 Scenarios ................................... 6 Factory Reset (RES) ................................6 Power and Energy Consumption............................7 Z-Wave Network ................................7 Adding HE-RS01 to a Z-Wave network ......................... -
Page 3: Overview
Each relay can be loaded up to five amps and uses the HELTUN Advanced Zero-Cross Technology to increase the life of the device and connected system. -
Page 4: Functions & Features
OTA (Over The Air) encrypted firmware update Installation HELTUN recommends the HE-RS01 relay switch be installed by a licensed electrician in a manner that conforms to local regulations and building codes. Provide these instructions to the licensed electrician who is installing the HE- RS01. -
Page 5: Disassembly
Figure 2: Power, Loads & External Switches Connection Diagram 3. Next, connect terminals S1, S2, S3, S4, S5 to external control keys (switches) following Fig. 2 left diagram or Fig. 2 right diagram. Note: In case of using Figure 2 right diagram, it is MANDATORY to connect external switches to the same wire connected to terminal L on the device. -
Page 6: Operation
Operation The HE-RS01 has five relays and five external inputs (S1, S2, S3, S4, S5). 1. Each relay can be controlled by any external input or via a Z-Wave network (using a Z-Wave gateway). 2. Each external input can be configured to control any relay output state (from one to five) in the modes below: 1) SWITCH-ON: Press button on external switch: relay output switches to ON state (i.e. -
Page 7: Power And Energy Consumption
The HE-RS01 may be operated in any Z-Wave network with other Z-Wave-certified devices from other manufacturers. The HELTUN HE-RS01 will act as a ‘repeater’ (i.e. ‘range extender’) for other devices regardless of manufacturer or brand to increase the reliability of the overall network. -
Page 8: Security
Start the process from the Z-Wave gateway/controller. Download the latest firmware that corresponds to the HE-RS01 (see https://support.heltun.com/ Set main controller to Firmware OTA (“over-the-air”) Update Mode (see the gateway/controller manual). As soon as Firmware update begins, the LED will sequentially blink red→green→blue (this will take a few minutes). - Page 9 Group 5 – “External Input S2 Multilevel Set”: is assigned to Input S2. It sends MULTILEVEL SWITCH command class frame when the button on switch connected to S2 input was held. Is used to send UP/DOWN command to the associated devices. The group supports one Node. Group 6 –...
-
Page 10: Gateway Compatibility Requirement
Gateway Compatibility Requirement In order to make a reliable connection and data exchange with the gateway make sure that the gateway/controller is multi-channel capable. The gateway/controller lifeline association should be configured as a “multi-channel association.” Some gateways need this option to be manually configured. Note: Fibaro Home Center 2: In order to enable correct communications between a Fibaro gateway/controller and the HE-RS01, the lifeline association should be configured as a “multi-channel association.”... -
Page 11: He-Rs01 Settings Using Z-Wave Protocol (Gateway)
HE-RS01 Settings Using Z-Wave Protocol (Gateway) All configuration parameters are accessed through COMMAND_CLASS_CONFIGURATION Time Configuration Parameter 01 – Time correction by controller If this Parameter value = 1 and the HE-RS01 is connected to a Z-Wave gateway, the HE-RS01 time and day will be periodically polled and corrected from the gateway. - Page 12 Parameters 21-25 – Relay Timer mode duration These parameters specify the duration in seconds for the Timer mode (value 4 or 5 in Parameters 16-20 respectively). Press the button on the switch connected to external input and the relay output goes to ON/OFF for the specified time then changes back to OFF/ON.
- Page 13 Parameters 46-50 – Associations Mode These parameters are intended for use when Multilevel Switch Group Associations (Groups 3, 5, 7, 9 & 11) have been activated. They define the logic of values changing if one of the buttons on switch connected to external inputs S1-S5 has been held for more than one second.
-
Page 14: Factory Default Parameters
Factory Default Parameters Default Available Number Size Name Description Value Values 1 byte TIME CORRECTION Time correction by controller 0, 1 1 = Monday, 2 = Tuesday, 3 = Wednesday, 1 byte WEEKDAY Week Day 4 = Thursday, 5 = Friday, 6 = Saturday, 7 = Sunday 1 byte HOUR... - Page 15 Relays control by day time 4 bytes RELAY CONTROL SCENARIO4 0, 10000000 to 5912359 Group 4 Relays control by day time 4 bytes RELAY CONTROL SCENARIO5 0, 10000000 to 5912359 Group 5 Relays control by day time 4 bytes RELAY CONTROL SCENARIO6 0, 10000000 to 5912359 Group 6 Relays control by day time...
-
Page 16: Limited Warranty
HELTUN warrants this product to be free from defects in workmanship or materials, under normal use and service, for a period of one (1) year from the date of purchase by the consumer (“Warranty Period”). HELTUN will extend this Warranty Period to two (2) years from the date of consumer purchase for any consumer who registers their warranty with HELTUN at this website page: http://bonus.heltun.com/.
